9

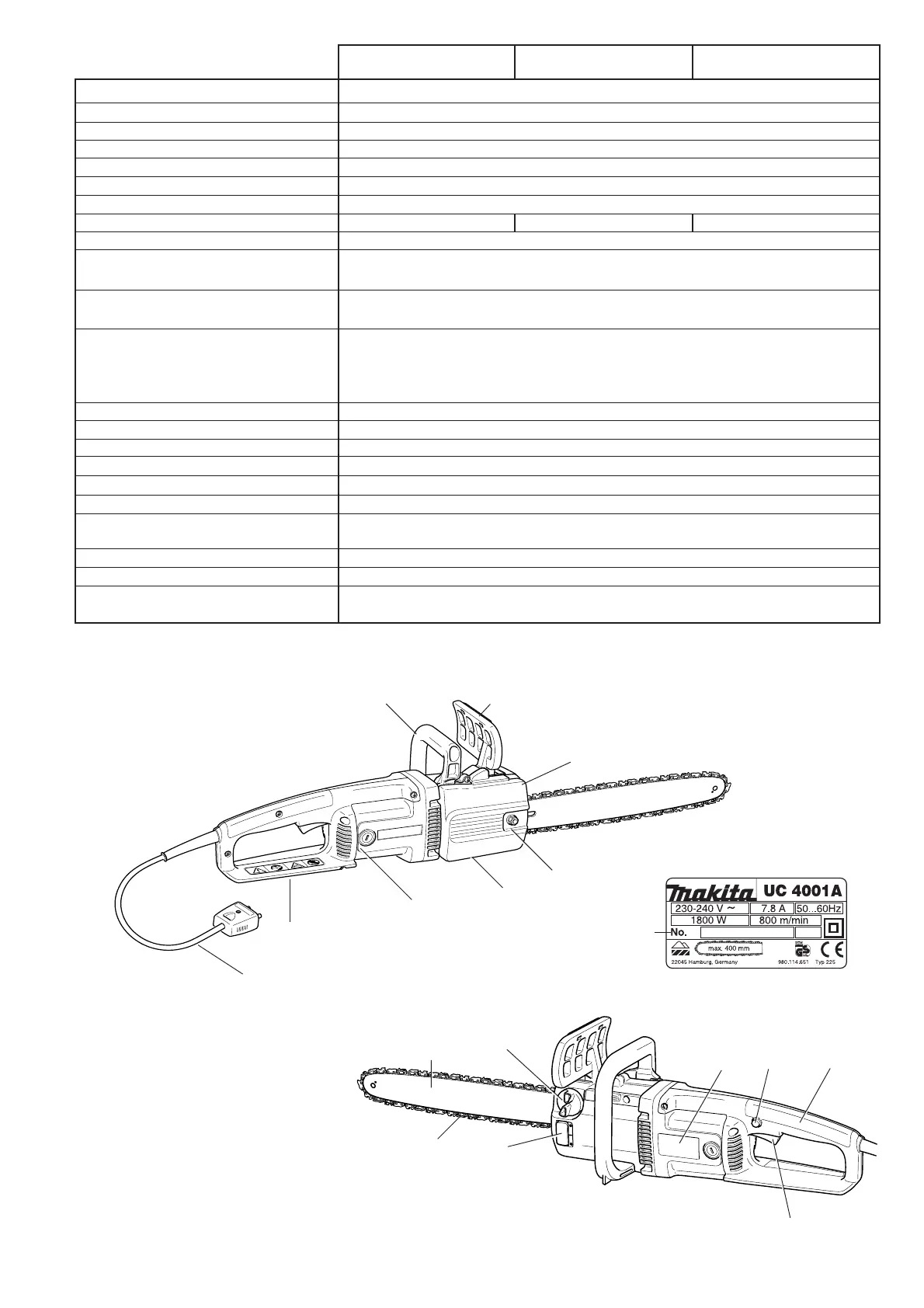

Denomination of components
1 Tubular handle
2 Hand guard
3 Spike bar
4 Fastening nut
5 Sprocket guard, chain brake
6 Carbon brush cover
7 Back hand guard
8 Power cord with plug
9 Guide bar
10 Oil tank cap
11 Identification plate
12 Locking button
13 Rear handle
14 Power switch
15 Sightglass for oil level
16 Saw chain
1 2
3
4
5
6
9
10
16
15
11 12
13
14
7
UC 3001A UC 3501A UC 4001A
Power consumption Watt 1800
Nominal voltage V 230-240 ~
Mains frequency Hz 50...60
Nominal current A 7.8
Cable length cm 30
Chain type 092
Chain pitch inch 3/8"
Length of a cut cm 30 35 40
Max. chain speed m/s 13.3
Sound power level
L
WA av
dB (A) 102
per ISO 9207
1)
Sound pressure level L
pA av
dB (A) 89
at the workplace per ISO 7182
1)
Vibration acceleration
a
h,w av
per ISO 7505
1)
- Tubular handle m/s
2
4
- Rear handle m/s
2
7
Oil pump automatic
Oil tank capacity l 0.12
Power transmission direct
Overload protection mechanic (slip clutch)
Chain brake manual or automatic
Run-out brake electrical
Weight kg 4.2
(without bar/chain)
Radio interference suppression / EMC Per EMC guidelines EWG 89/336 and EWG 92/31
Protective case class II (double protective insulation)
Extension cable DIN 57282/ HO 7RN-F
(not included) L= 30 m max., 3x1.5 mm
2
Technical data
Serial number
Year of manufacture
Figure: Identification plate UC 4001A
Indicate when ordering spare parts!
1)
Figures derived in equal part from full-load and top-speed operation.
8
