Makita UC4041A User Manual

10
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.

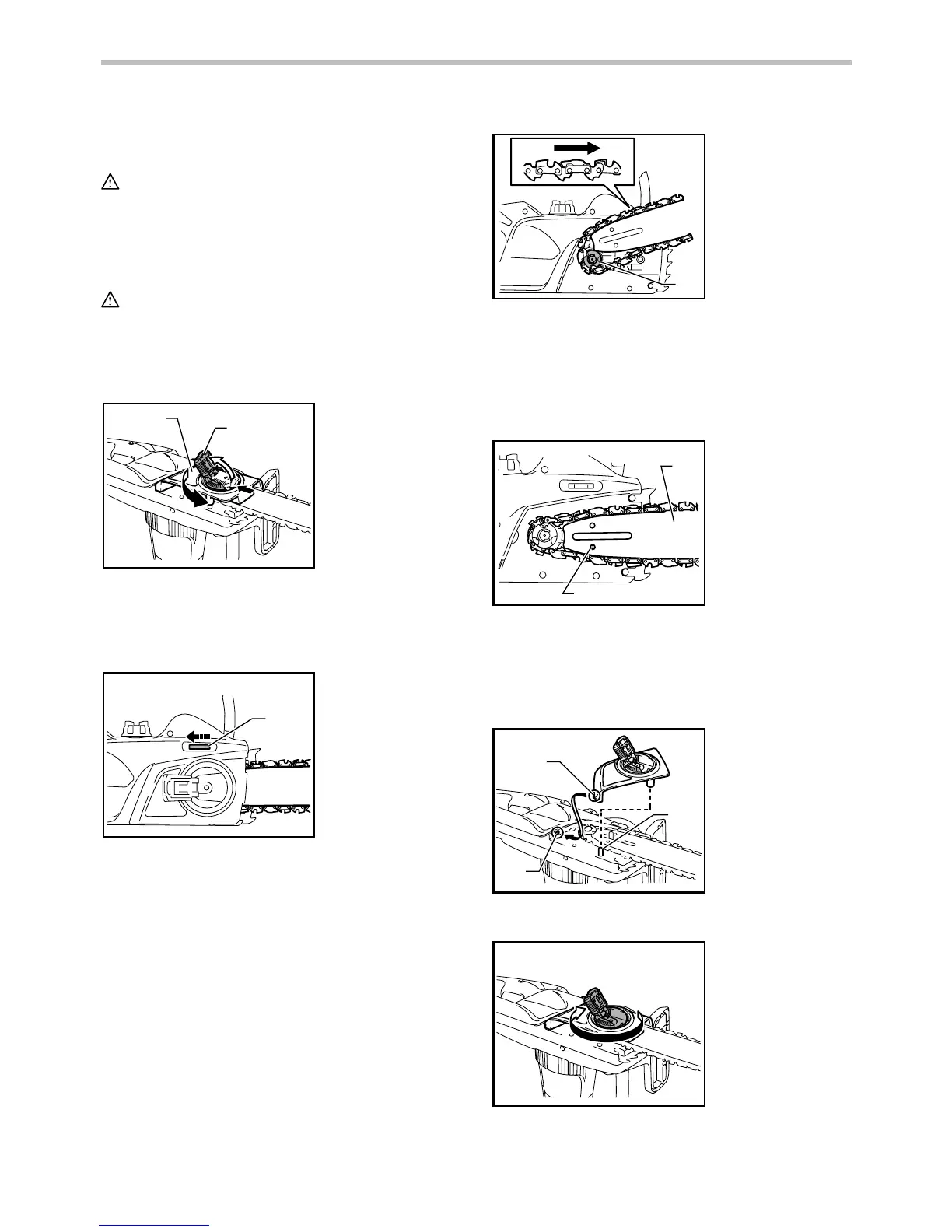

Removing or installing saw chain
CAUTION:
• Always wear gloves when installing or removing
the saw chain.
To remove the saw chain, perform the following steps:
1. Press and fully open the lever until it stops.
1
2
014342
2. Turn the lever counterclockwise to loosen the
sprocket cover until it comes off.
3. Turn the adjusting dial to "-" direction to release
the saw chain tension.
1
014324
4. Remove the sprocket cover.
5. Remove the saw chain and guide bar from the
chain saw.
To install the saw chain, perform the following steps:
6. Make sure the direction of the chain. The arrow
mark on the chain shows the direction of the
chain.
1
014323
7. Fit in one end of the saw chain on the top of the
guide bar and the other end of it around the
sprocket.
8. Rest the guide bar in place on the chain saw.
9. Align the tension slide with the hole of the guide
bar.
2
1
014422
10. Holding the guide bar, and turn the adjusting dial
to "+" direction to adjust the saw chain tension.
11. Place the sprocket cover so that the hooks fit
alongside the holes and the pin fits its counterpart
on the sprocket cover.
3
1
2
014325
12. Turn the lever clockwise to secure the sprocket cover.
014326
13. Press and return the lever to its original position.
1. Hook
2. Hole
3. Pin
1. Guide bar
2. Hole
1. Sprocket
1. Adjusting dial
1. Lever
2. Sprocket cover

Makita UC4041A Specifications

General

Power source	AC
Idle speed	7820 RPM
Chain gauge	1.27 mm
Chain pitch	3/8 \
Chain speed	14.5 m/s
Blade length	360 mm
Cable length	0.3 m
Product color	Black, Turquoise
Automatic oiling	Yes
Chain bar length	400 mm
Oil tank capacity	0.2 L
Noise level	101.3 dB
Uncertainty K	1.5 m/s²
Standard deviation	2.5 dB
Vibration emission	4.7 m/s²
Sound pressure level	90.3 dB

Weight and Dimensions

Width	245 mm
Height	200 mm
Length	455 mm
Weight	4700 g
