At this time, the chip receiver needs to be installed so
that its hooks fit into grooves in the shear blade unit.
1
2
009293
To r e m o v e t h e c h i p r e c eiver, press its lever on both
sides so that the hooks are unlocked.
CAUTION:
• The blade cover (standard equipment) cannot be
installed on the tool with the chip receiver being
installed. Before carrying or storing, uninstall the
chip receiver and then install the blade cover to
avoid blade exposure.
NOTE:
• Check the chip receiver for secure installment
before use.
• Never try to uninstall the chip receiver by an
excessive force with its hooks locked in the blade
unit grooves. Using the excessive force may
damage it.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
Cleaning the tool
Clean out the tool by wiping off dust with a dry or soap-
dipped rag.
CAUTION:
• Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
Blade maintenance
Smear the blade before and once per half an hour
during operation using machine oil or similars.
After operation, remove dust from both sides of the
blade with wired brush, wipe off it with a rag and then
apply enough low-viscosity oil, such as machine oil etc.
and spray-type lubricating oil.
CAUTION:
• Do not wash the blades in water. Failure to do so
may cause rust or damage on the tool.
• Wear gloves when performing the blade
maintenance.
Storage
Put the blade cover on the shear blades so that the
blades are not exposed. Store the tool out of the reach
of children carefully.
Store the tool in the place not exposed to water and rain.
To ma in t a i n pr o d u c t SAF E T Y a n d REL I A B I L I TY, re pa i r s ,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Blade cover
• Hook complete
• Waist cord hook
• Arm cord hook
• Chip receiver
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.

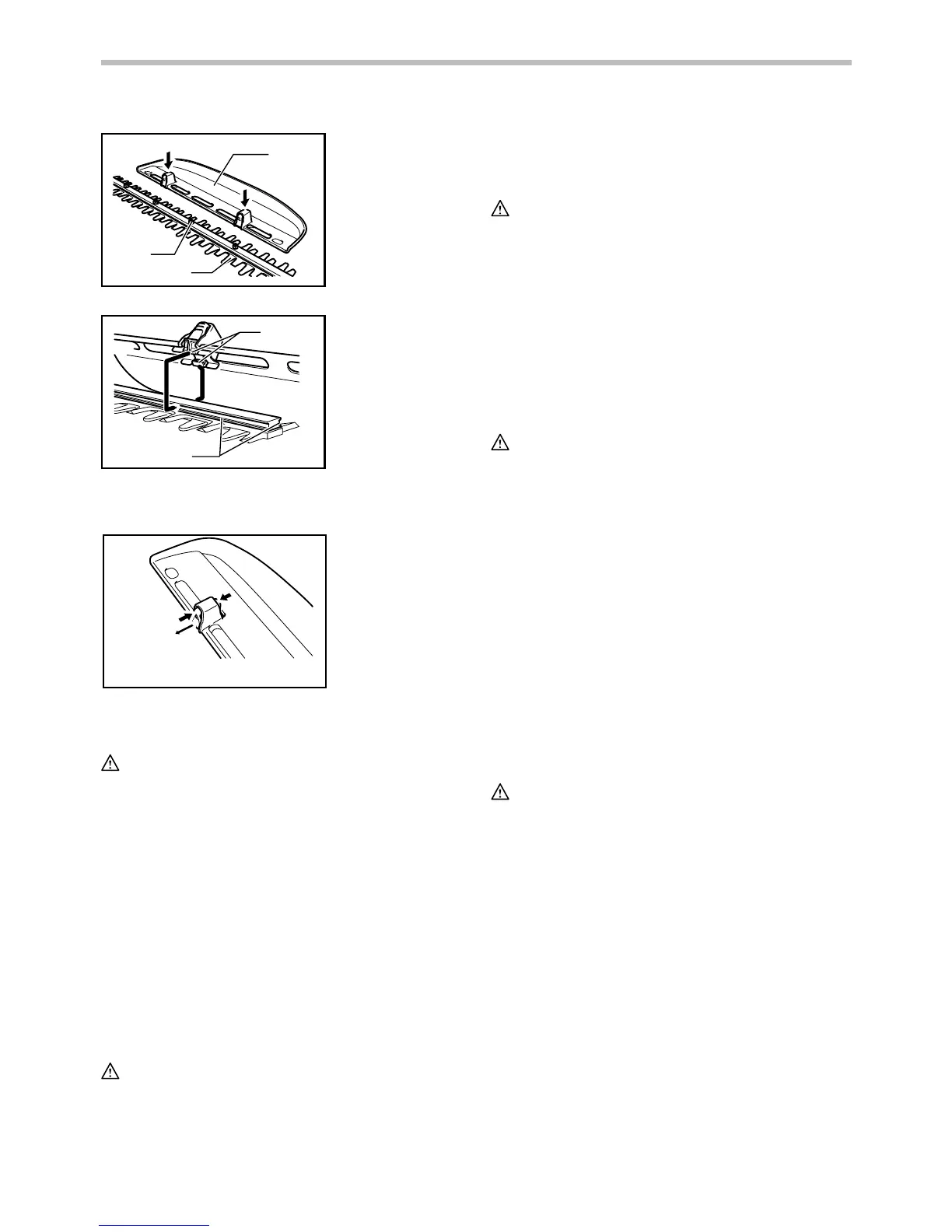

1. Press the levers
on both sides
2. Unlock the
hooks
1. Hooks
2. Fit the hooks
into groove
3. Grooves
1. Press
2. Chip receiver
3. Nut
4. Shear blade
