5

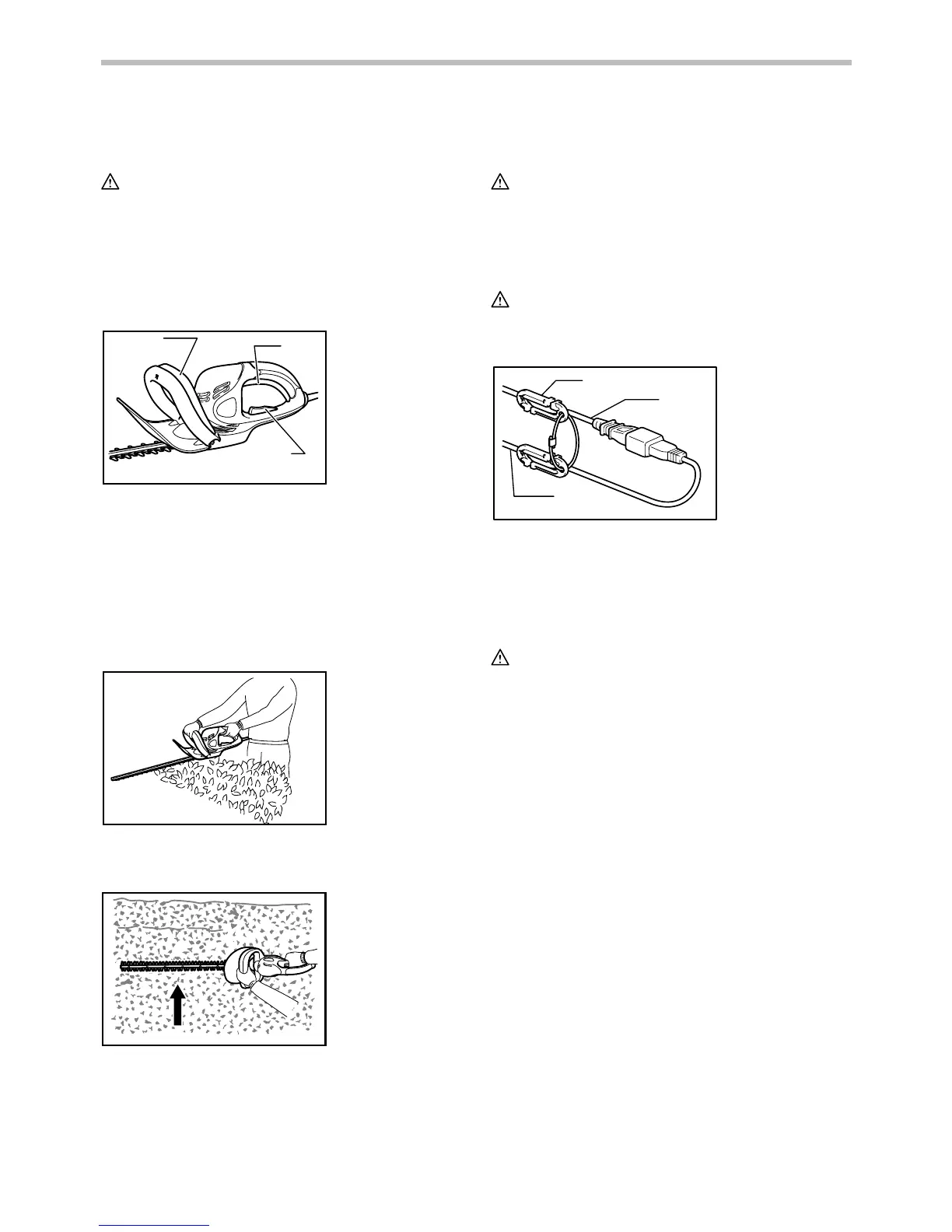

FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function
on the tool.
• Put the blade cover on the shear blades before
adjusting or checking function on the tool.
Switch action
1
2
3
009398
For your safety, this tool is equipped with a triple
switching system. To turn on the tool, press switch
trigger B and press switch trigger A or C at the same
time. Release either one of the two pressed switch
triggers to turn off. The sequence of switching is
unimportant as the tool only starts when both switches
are activated.
Straight cut
009399
To t r i m t h e h ed ge s t ra ig ht , pull switc h t r i gg er s A a n d B.
Vertical cut
009400
Cut upwards with both hands pull the switch triggers B
and C and move it in front of your body.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the
tool.
Engage the extension cord
CAUTION:
• Make sure that the extension cord is unplugged to
the mains outlet.
1
2
3
007542
When engaging the extension cord, secure it to the
tool's cord with the hook complete. Attach the hook
about 100 - 200 mm from the extension cord connector.
This will help prevent unintentional disconnection.
Waist cord hook
CAUTION:
• Do not attach the holder of waist cord hook to
other than the extension cord. Do not attach it in a
position closer to the tool beyond the hook
complete. Failure to do so may cause an accident
or personal injury.
• Attach firmly one hook of the hook complete to the
tool's cord and the other hook of hook complete to
the extension cord. Working with the tool with a
sole hook only attached may cause an accident
and injury.
Using the waist cord hook helps to minimizing a risk of
cutting off the extension cord unexpectedly caused by
the loose extension cord.
1. Hook complete
2. Tool's cord
3. Extension cord
1. Switch trigger B
2. Switch trigger A
3. Switch trigger C
