8
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided.
To start the tool, move the lock-off button forward and
pull the switch trigger. Release the switch trigger to stop.

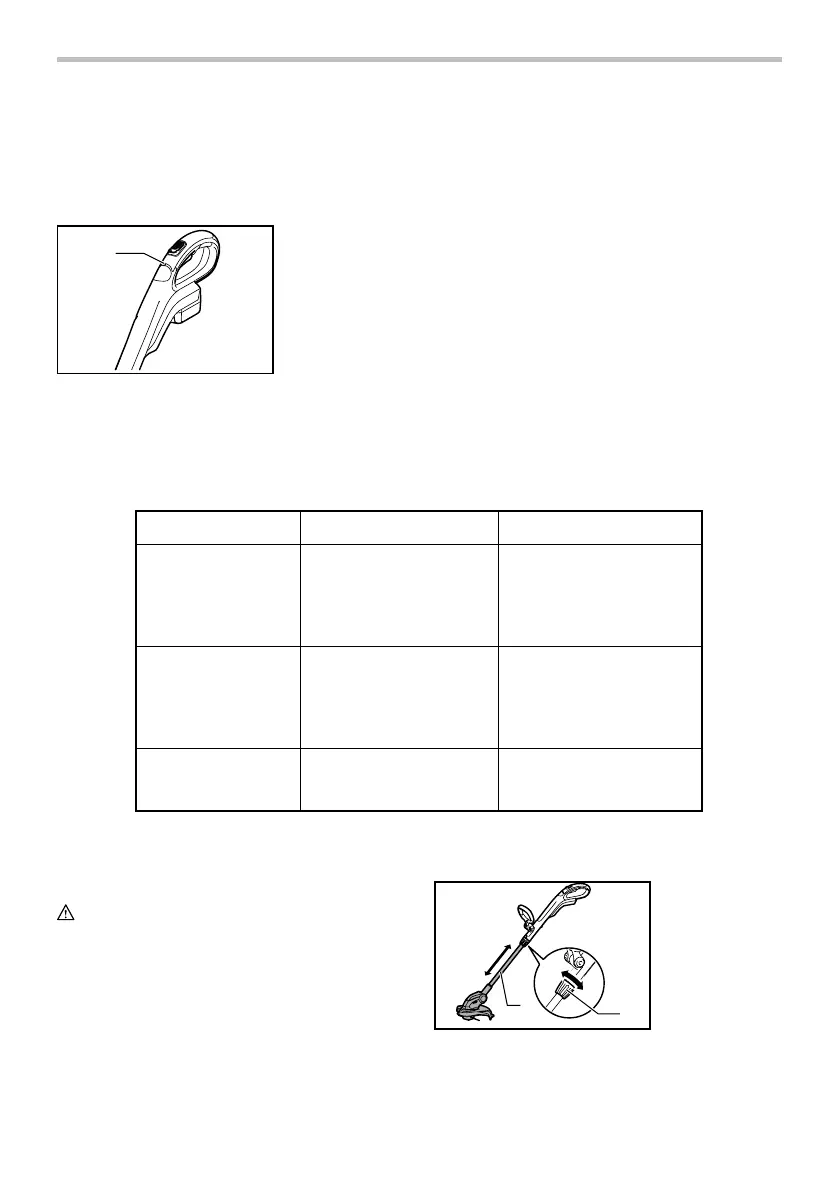

Indication lamp
1
012441
Running the tool allows the indication lamp to show the
battery cartridge capacity status.
When the tool is also overloaded and has stopped
during operation, the lamp lights up in red.
Refer to the following table for the status and action to
be taken for the indication lamp.
Note 1:
The time at which the indication lamp lights up varies by the temperature
around the work area and the battery cartridge conditions.
Indication lamp
The lamp blinks in red.
The lamp lights up in red.
(Note 1)
The lamp lights up in red.
(Note 1)
Status
This indicates the appropriate
time to replace the battery
cartridge when the battery
power becomes low.
This function works when the
battery power is almost used
up. At this time, tool stops
immediately.
Autostop due to overload.
Action to be taken
Recharge the battery cartridge
as soon as possible.
Recharge the battery cartridge.
Turn off the tool.
012443
Adjusting the shaft length
WARNING:
• Before adjusting the shaft length, release the
switch trigger and remove the battery cartridge
from the string trimmer. Failure to release the
trigger and removing the battery cartridge may
cause a personal injury.
1
2
012396
To adjust the length of the shaft, turn the grip
counterclockwise until the shaft is unlocked and pull out
or push in to the desired length.
1. Shaft
2. Grip
1. Indication lamp
