System description
SaCoS
one
GENSET
This document is property of MAN Diesel & Turbo SE and is entrusted
to whom it has been handed over. Copying and communicating to third
parties is only permitted with written consent of MAN Diesel & Turbo!
SaCoSone.GENSET_System description_m_en_V1.5.docx
Control Unit
Control Module
Connection Box
main
switchboard
emergency
switchboard
AC
DC
AC
DC
MAN supply
uninterruptible
power supply
Yard supply
24VDC
24VDC
Display Module
10 A
16 A

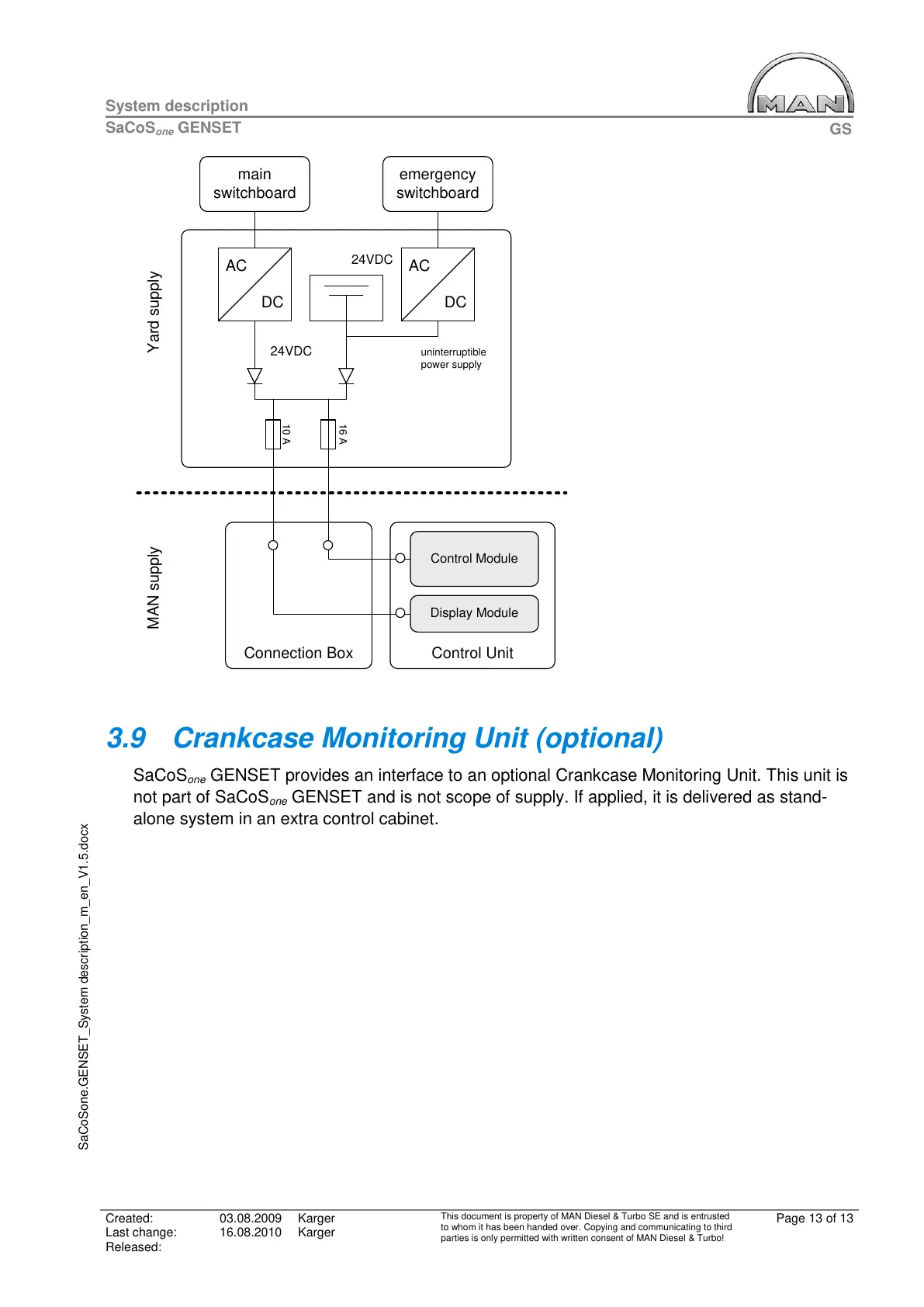

3.9 Crankcase Monitoring Unit (optional)
SaCoS
one
GENSET provides an interface to an optional Crankcase Monitoring Unit. This unit is
not part of SaCoS
one
GENSET and is not scope of supply. If applied, it is delivered as stand-
alone system in an extra control cabinet.
