Manitowoc Indigo NXT Series User Manual

Part Number 000014141 Rev 07 2/20 23
Section 2 Installation

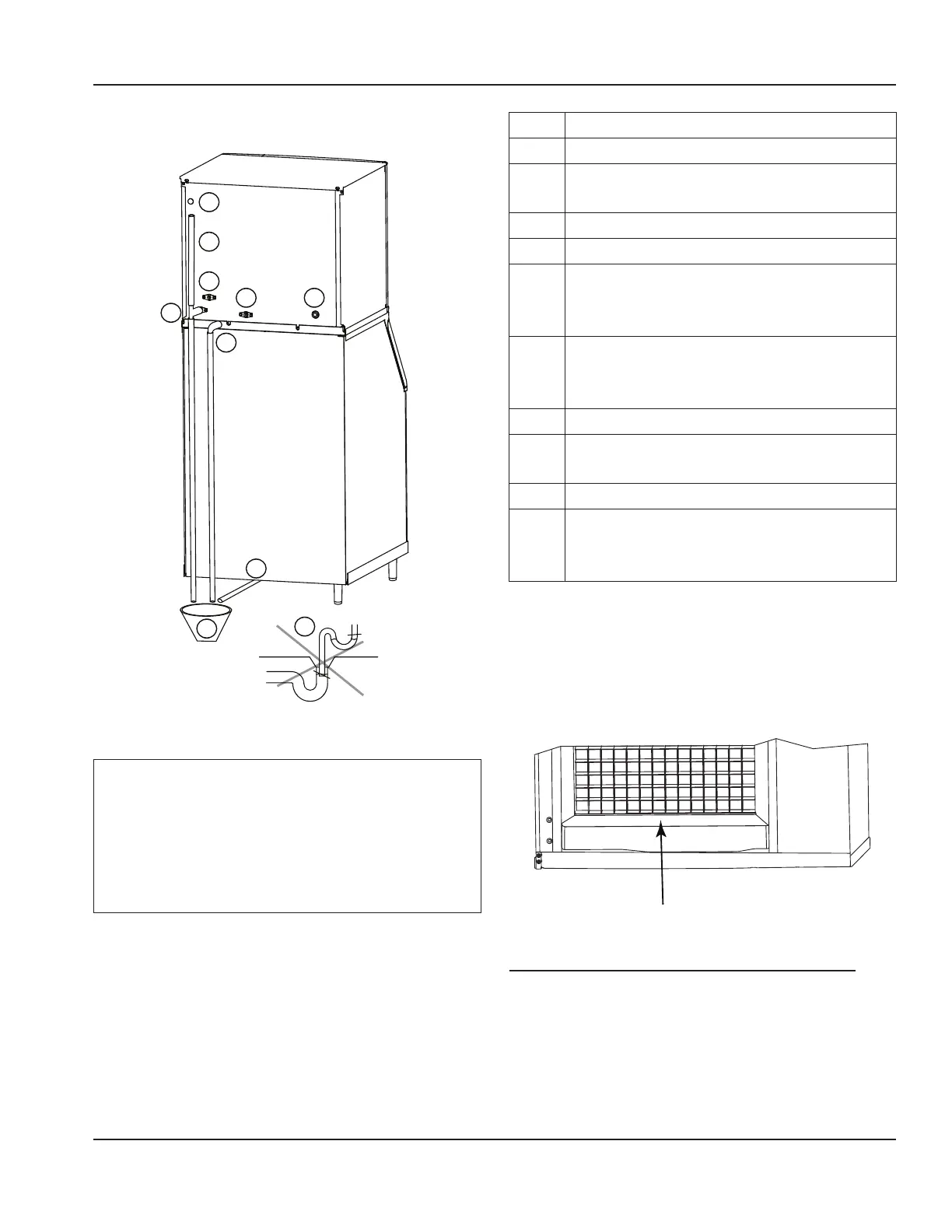

Water Supply and Drain Connections
,
Caution
Do not apply heat to water inlet valve or
water drain fittings. Heating will damage
the nonmetallic connector. Do not over
tighten fittings. Two turns after hand tight
is the maximum.
Item Description
1 Electrical Entrance
2
Vent Tube - Minimum Height
18" (46 cm)
3 Potable Water Inlet - 3/8" FPT
4 Potable Water Drain - 1/2" FPT
5
Condenser Water Outlet - 1/2" FPT
Water-cooled Models Only
Install Separate Drain When Used
6
Condenser Water Inlet
See “Condenser Water Inlet” on
page 22 for fitting sizes
7 Base Drain - 1/2" CPVC Socket
8
Bin Drain - See “Bin Drain” on page
22 for fitting sizes
9 Floor Drain - Open and Trapped
10
Do Not Trap Drain Line - Leave Air
Gap Between Drain Line and Floor
Drain
AIR GAP
A greater than 1-inch air gap is built into
the ice machine for back-flow prevention.
This air gap exceeds NSF 12 requirements
for back-flow prevention.
This air gap is greater than 1"
INSTALLATION NOTE (SWITZERLAND)
The connection to the drinking water
network must be made with a certified
backflow preventer type EA (EN13959)
and with a certified connection hose
(EN13618 or EN61770) on site.
1
2
3
4
5 6
7
8
9
10

Manitowoc Indigo NXT Series Specifications

General

Model	Indigo NXT Series
Ice Production	Varies by model
Ice Storage	Varies by model
Energy Efficiency	Energy Star certified models available
Refrigerant	R290 (varies by model)
Cooling System	Air-cooled or water-cooled (varies by model)
Condenser Type	Air-cooled, Water-cooled, or Remote
Touch Display	Yes, with intuitive interface
Control	Cleaning Alerts
Features	Self-cleaning, remote monitoring, energy-saving modes
Power Supply	Varies by model (typically 115V or 208-230V)
Dimensions (H x W x D)	Varies by model
Weight	Varies by model
