Part Number 000014141 Rev 08 5/21 23
Section 2 Installation

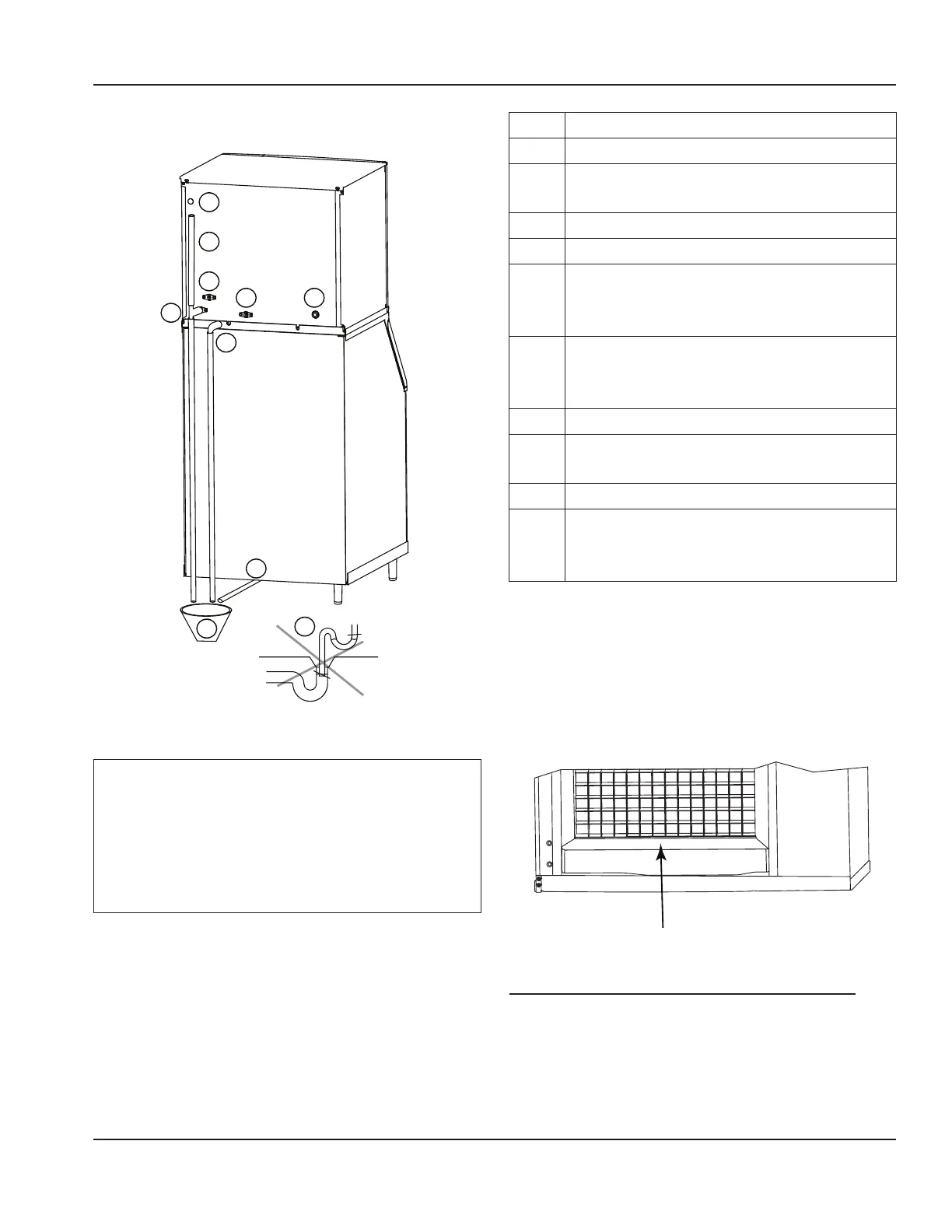

Water Supply and Drain Connections
,
Caution
Do not apply heat to water inlet valve or
water drain fittings. Heating will damage
the nonmetallic connector. Do not over
tighten fittings. Two turns after hand tight
is the maximum.
Item Description
1 Electrical Entrance
2
Vent Tube - Minimum Height
18" (46 cm)
3 Potable Water Inlet - 3/8" FPT
4 Potable Water Drain - 1/2" FPT
5
Condenser Water Outlet - 1/2" FPT
Water-cooled Models Only
Install Separate Drain When Used
6
Condenser Water Inlet
See “Condenser Water Inlet” on
page 22 for fitting sizes
7 Base Drain - 1/2" CPVC Socket
8
Bin Drain - See “Bin Drain” on page
22 for fitting sizes
9 Floor Drain - Open and Trapped
10
Do Not Trap Drain Line - Leave Air
Gap Between Drain Line and Floor
Drain
AIR GAP
A greater than 1-inch air gap is built into
the ice machine for back-flow prevention.
This air gap exceeds NSF 12, AS/NZS 3500.1
and AS/NZS 3500.2 requirements for back-
flow prevention.
This air gap is greater than 1"
The connection to the drinking water
network must be made with a certified
backflow preventer type EA (EN13959)
and with a certified connection hose
(EN13618 or EN61770) on site.
