Manitowoc SY0304A Use And Care Manual

Installation Instructions Section 2
2-2 Part Number 80-1620-3

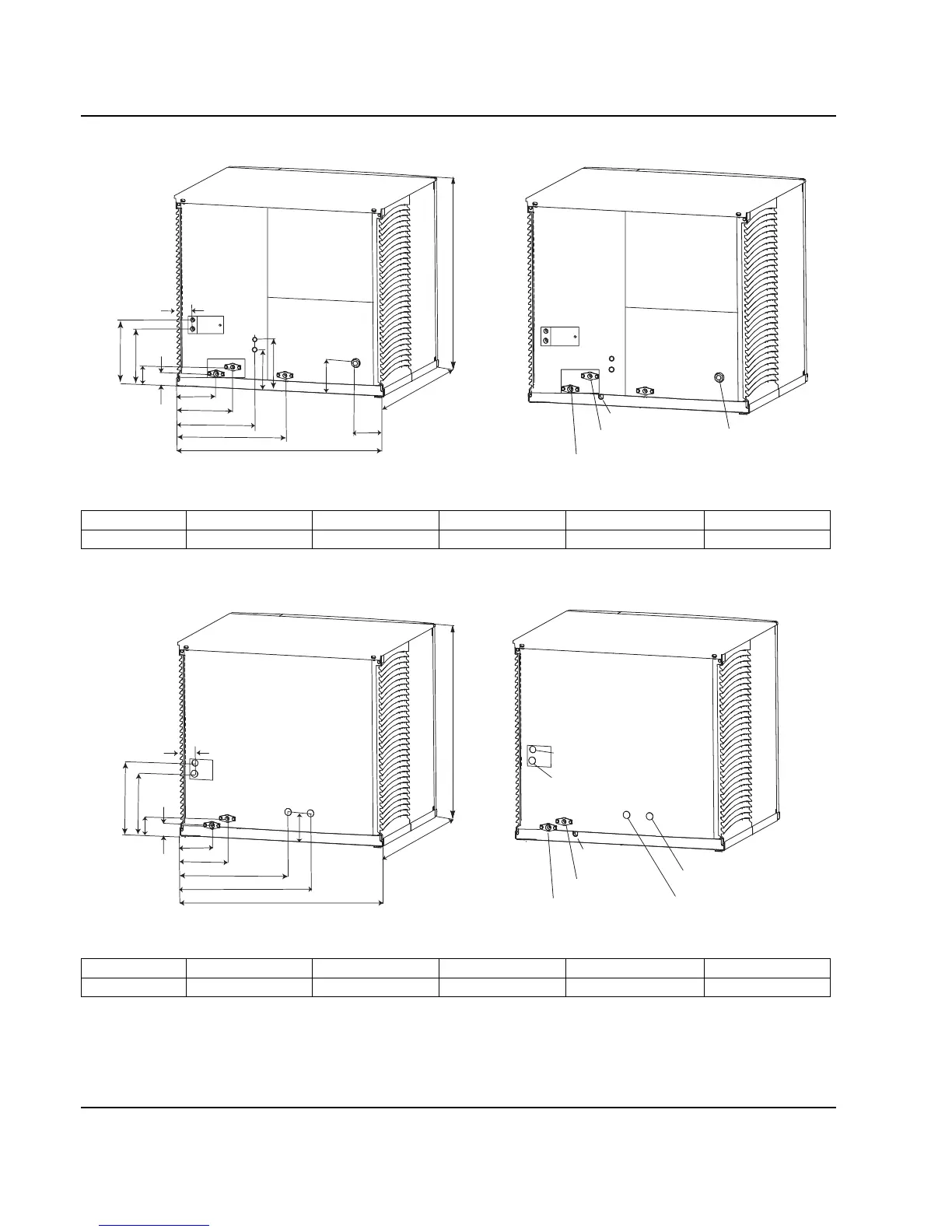

S600 AIR AND WATER-COOLED ICE MACHINES
S600 REMOTE ICE MACHINES
Ice Machine Dimension A Dimension B Dimension W Dimension D Dimension H
S600 11.5 in (29.2 cm) 9.0 in (22.9 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 21.5 in (54.6 cm)
Ice Machine Dimension A Dimension B Dimension W Dimension D Dimension H
S600 11.5 in (29.2 cm) 9.0 in (22.9 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 21.5 in (54.6 cm)
1.50" (3.81cm)
H
D
W
4.25" (10.81 cm)
17.25" (43.81 cm)
6.68" (16.96cm)
5.06" (12.85cm)
2.85" (7.30cm)
1.81"
(4.59cm)
2.61"
(6.62cm)
A
B
6.50" (16.5cm)
8.50" (21.60cm)
7.75" (19.7 cm)
ELECTRICAL
AUCS
CONNECTIONS
DRAIN 1/2"NPTF
WATER INLET
3/8"FPT
CONDENSER WATER
OUTLET 1/2"FPT
(Water-Cooled Only)
CONDENSER WATER
INLET 3/8"FPT
(Water-Cooled Only)
AUXILLARY BASE DRAIN
1/2"CPVC SOCKET
1.50" (3.81cm)
H
D
W
16.0" (40.64cm)
11.50" (29.21cm)
6.68" (16.96cm)
5.06" (12.85cm)
6.25" (15.88cm)
1.81"
(4.59cm)
2.61"
(6.62cm)
A
B
ELECTRICAL
REMOTE CONDENSER
ELECTRICAL
DRAIN 1/2"NPTF
WATER INLET
3/8"FPT
REFRIGERANT
LIQUID LINE
REFRIGERANT
DISCHARGE LINE
AUXILLARY BASE
DRAIN 1/2"CPVC
SOCKET
