Manitowoc SY1605W Use And Care Manual

Installation Instructions Section 2
2-4 Part Number 80-1620-3

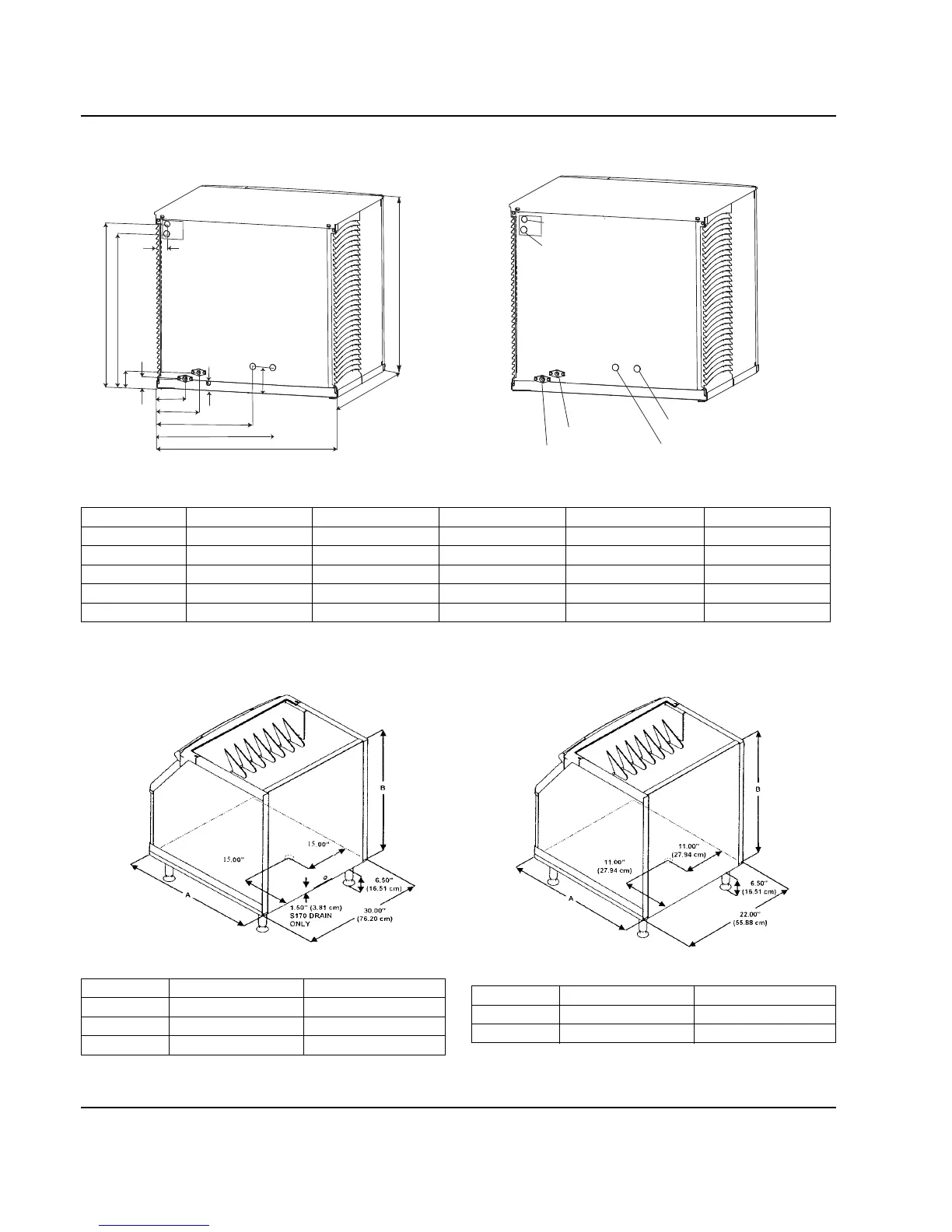

S500/S850/S1000 REMOTE ICE MACHINES
Ice Storage Bin Dimensions
30 INCH (76 CM) ICE STORAGE BINS 22 INCH (56 CM) ICE STORAGE BINS
2.20" (5.58cm)
H
D
W
16.64" (64.82cm)
12.26" (42.27cm)
6.68" (16.96cm)
5.06" (12.85cm)
1.06 (2.69cm)
6.12" (15.54cm)
1.81"
(4.59cm)
2.61"
(6.62cm)
A
B
SV3146
SV3146B
DRAIN 1/2"NPTF
WATER INLET
3/8"FPT
REFRIGERANT
LIQUID LINE
REFRIGERANT
DISCHARGE LINE
ELECTRICAL
REMOTE CONDENSER
ELECTRICAL
Ice Machine Dimension A Dimension B Dimension W Dimension D Dimension H
S300 14.00 in (35.6 cm) NA 30 in. (76.2 cm) 24.50 in. (62.2 cm) 16.5 in (41.9 cm)
S450 19.25 in (48.9 cm) 17.5 in (44.45 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 21.5 in (54.6 cm)
S500 19.25 in (48.9 cm) 17.5 in (44.45 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 21.5 in (54.6 cm)
S850 23.82 in (60.5 cm) 22.32 in (56.69 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 26.5 in (67.3 cm)
S1000 23.82 in (60.5 cm) 22.32 in (56.69 cm) 30 in. (76.2 cm) 24.50 in. (62.2 cm) 26.5 in (67.3 cm)
Bin Model Dimension A Dimension B
B170 29.5 in (74.9 cm) 19.1 in (48.5 cm)
B400 34.0 in (86.3 cm) 32.0 in (81.3 cm)
B570 34.0 in (86.3 cm) 44.0 in (111.7 cm)
SV1609
Bin Model Dimension A Dimension B
B320 34.0 in (86.3 cm) 32.0 in (81.3 cm)
B420 34.0 in (86.3 cm) 44.0 in (111.7 cm)
SV1614
