10 Disassembly Instructions
Note: This part is for reference, the photos may have slight difference with your machine.
10.1 Indoor unit
No.
Parts name
Procedures
Remarks

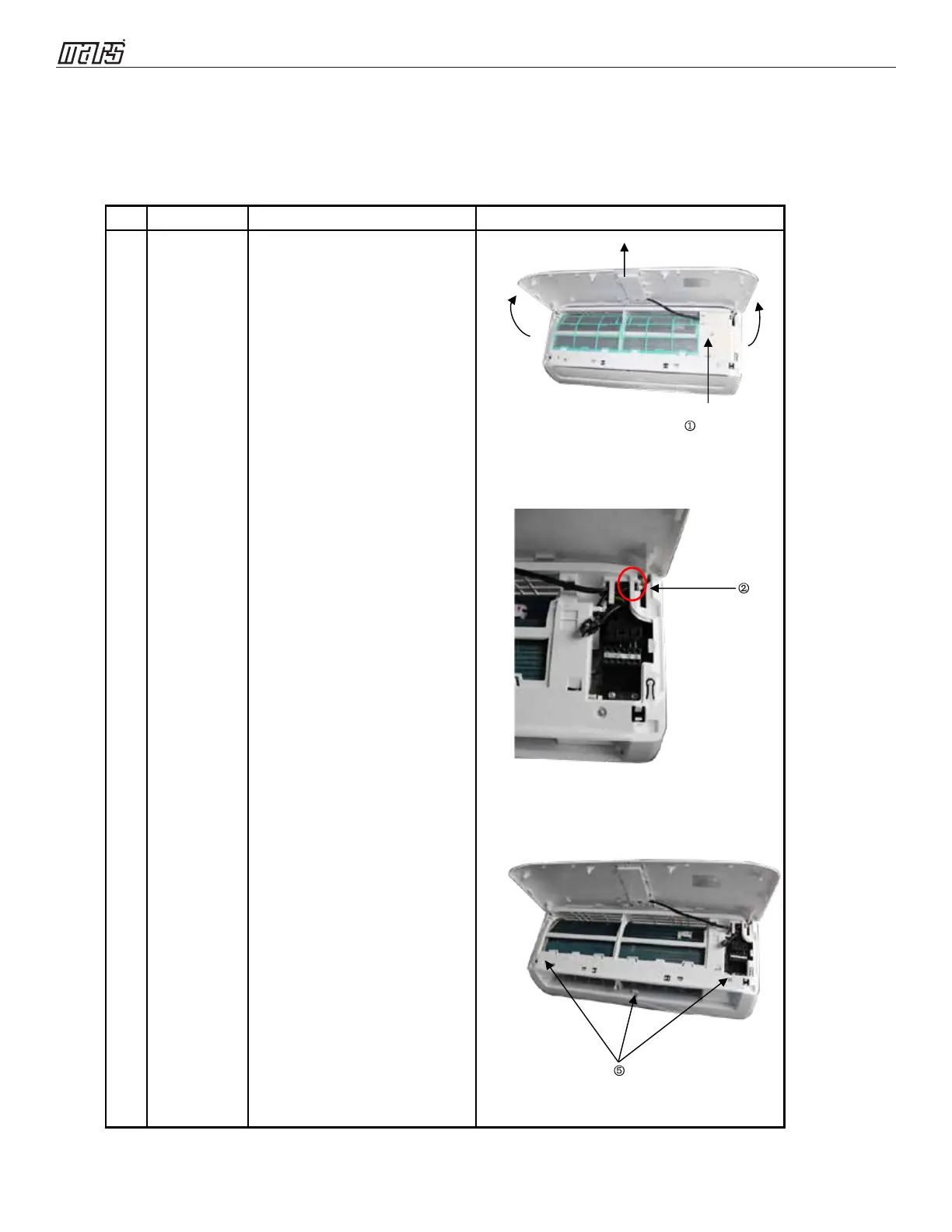

1 Front panel
How to remove the front panel.
1) Pull the bottom edge of
the panel toward you and
remove screw of the cover.
2) Release the connector of
the display ass’y.
3) Release the two clips and
then remove the panel.
4) Remove the filter and the
horizontal louver.
5) Remove the three screws
and then remove the panel
ass’y.
①
1 screw
②
⑤
