6

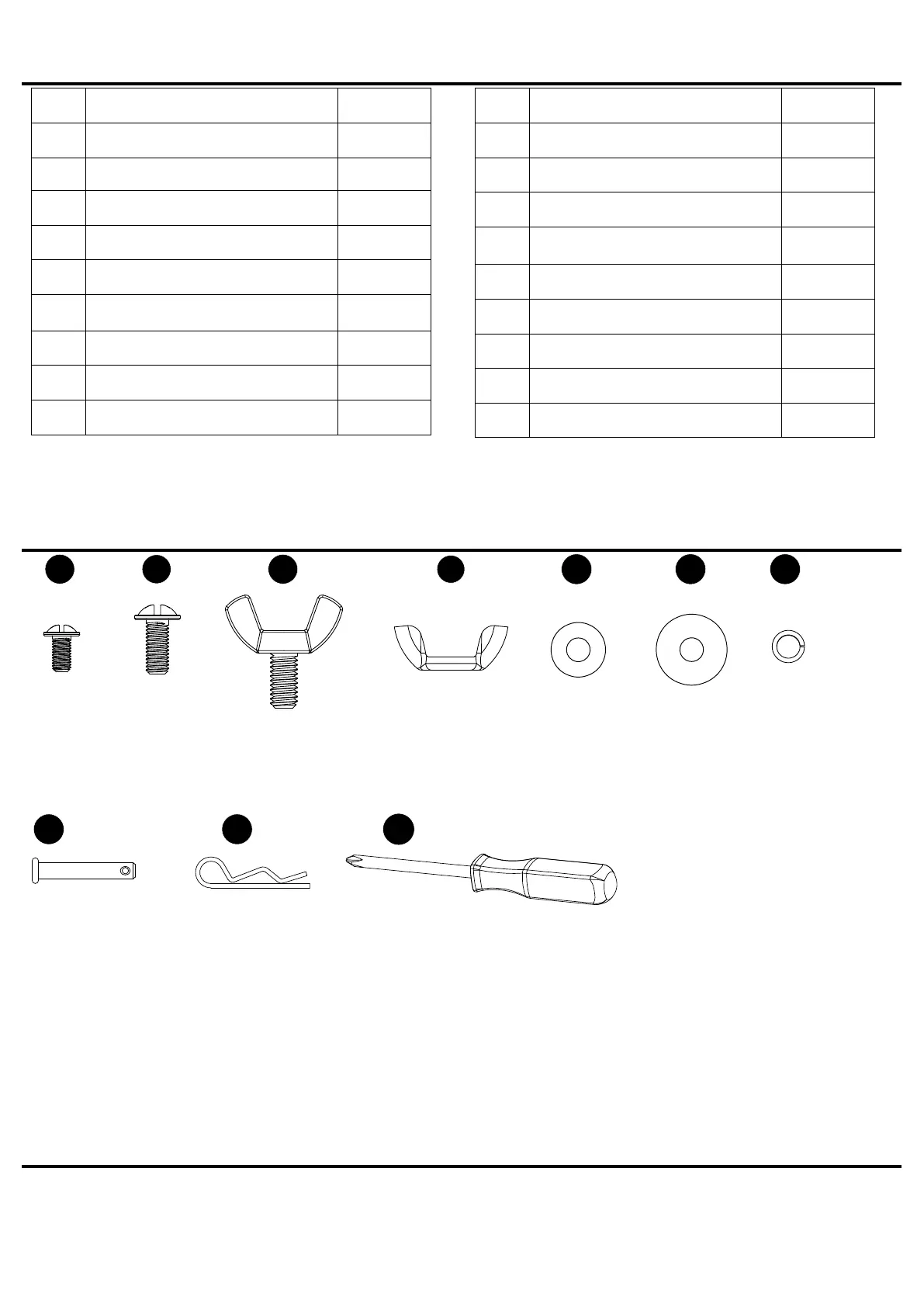

Part Description Quantity
A Lid Handle 1
B Lid 1
C Top Hinge 2
D Bottom Hinge 2
E Cooking Grid 1
F Heat Plate 1
G Burner 1
H Heat Shield 1
I Heat Plate Support 2
Part Description Quantity
J Left Handle 1
K Bottom Bowl 1
L Right Handle Assembly 1
M Regulator/Control knob 1
N Lock 1
O Left Leg Assembly 1
P Right Leg Assembly 1
Q Foot A* 2
R Foot B* 2
M5x8
Screw
Qty:2
M5x12
Screw
Qty:18
M6x12
Wing Bolt
Qty:1
Ø22
Washer
Qty:2
Ø5
Lock
Washer
Qty:22
AA
BB
CC
DD
EE FF
#2 Philips Head
Qty:1
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the
product.
Estimated assembly time: 25 minutes by one people.
Tools required for assembly: Philips screwdriver (not included).
PACKAGE CONTENTS
HARDWARE CONTENTS
Preparation
JJ
M5
Wing Nut
Qty:20
GG
Ø5
Washer
Qty:20
HH II
Ø5x30
Pin
Qty:2
Ø1.4x30
Cotter Pin
Qty:2
* Pre-assembled
To Next Page
