Master B100 User Manual

23
100743

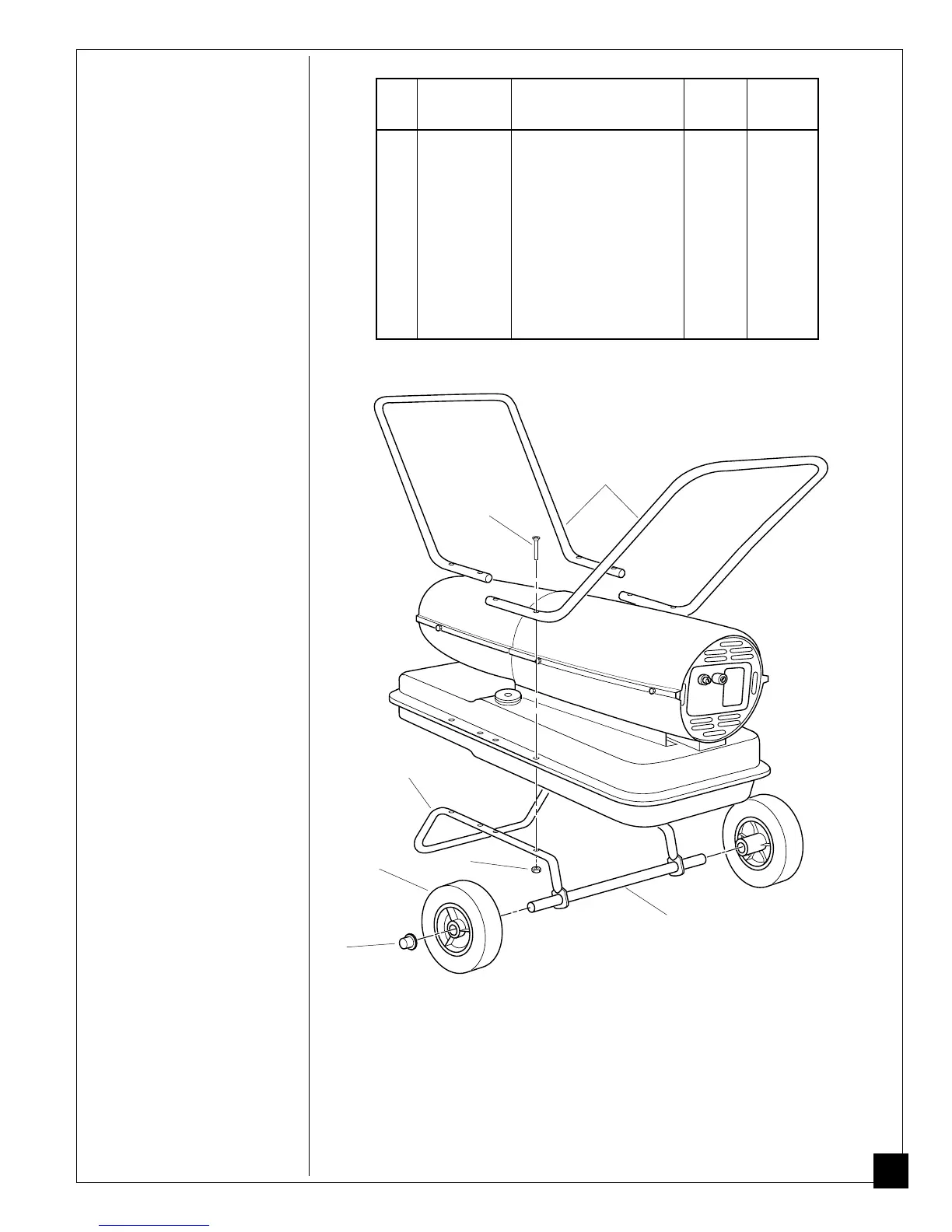

ILLUSTRATED
PARTS
BREAKDOWN
WHEELS AND
HANDLES FOR
90,000 AND 150,000
BTU/Hr MODELS
KEY PART PART 90,000 150,000
NO. NUMBER DESCRIPTION QTY. QTY.
1 HA2203 Handles 2 —
HA2205 Handles — 2
2 M12345-33 Screw, #10-24 x 1 3/4" 8 8
3 M12342-3 Wheel Support Frame 1 —
M12831-3 Wheel Support Frame — 1
4 NTC-3C Hex Nut, #10-24 8 8
5 097896-01 Wheel 2 2
6 M28526 Cap Nut 2 2
7 M51015-01 Axle 1 —
M16801-2 Axle — 1
ASSEMBLY, EURO
PFA/PV 018A
1
2
3
4
5
6
7
