Master MGH10000C User Manual

24
117846
PORTABLE GASOLINE GENERATORS
R
1
2
3
6
5
4
8
9
10
7
11
12
15
16
17
13
14

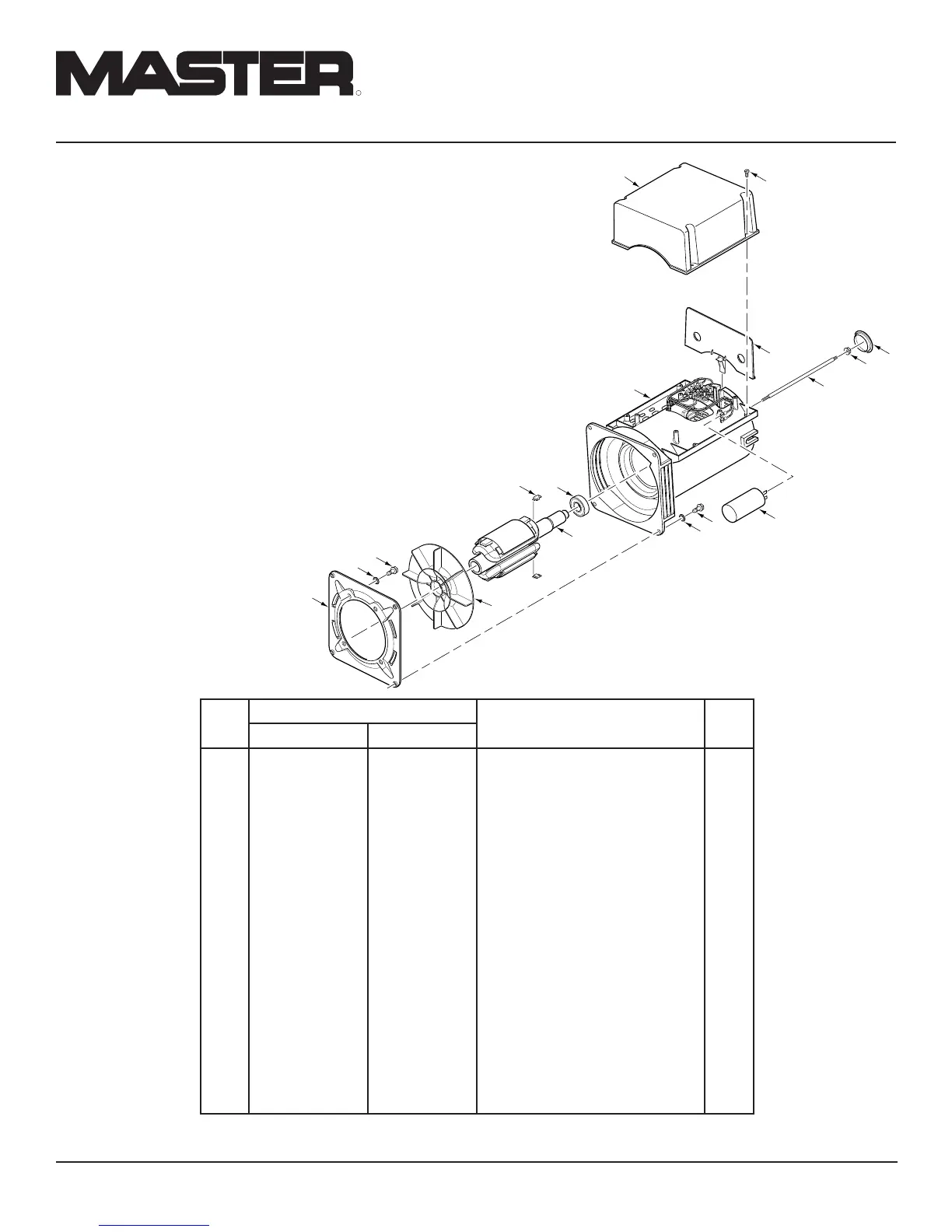

ILLUSTRATED
PARTS LIST
For Models MGH8500AIE
and MGH10000C Alternator
Assembly
This list contains replaceable parts used in
your generator. When ordering parts, follow
the instructions listed under
Replacement
Parts on page 25 of this manual.
* Part not available by itself. Must purchase Alternator Assembly.
** Available at any hardware store.
KEY
NO.
PART NUMBER
DESCRIPTION QTY.
MGH8500AIE MGH10000C
114285-03 114285-03 Alternator Assembly 1
1 115243-01 115243-01 Top Cover, Alternator 1
2 M10908-27 M10908-27 Screw, 10-32 x 1/2" 4
3 115244-01 115244-01 End Cover, Alternator 1
4 115247-01 115247-01 End Cap, Shaft 1
5 115246-01 115246-01 Flange Nut, 8mm 1
6 115245-02 115245-02 Draw Bolt, Alternator 1
7 * * Stator, Alternator 1
8 115255-02 115255-03 Capacitor 1
9 115308-01 115308-01 Hex Head Taptite, 8mm Screw 4
10 WLE-5 WLE-5 Lock Washer, 5/16" 4
11 115315-01 115315-01 Bearing 1
12 115316-01 115316-01 Diode 2
13 * * Rotor, Alternator 1
14 115317-01 115317-01 Fan 1
15 ** ** Bolt, 3/8"-16 x 5/8" 4
16 ** ** Lock Washer, 3/8" 4
17 115242-01 115242-01 Flange, Alternator 1
