Dear customer, thank you for purchasing a MASTER product. This manual describe the operations for a correct installation of the product. This device is not
design for a continuative use. Use of the product other than that provided for in this manual is improper and prohibited and will void the warranty and any
manufacturer's liability. The installation of the product must be done by a qualified technician. At the end of the installation, all manuals must be given to the end
user. Keep this manual for future reference!
Power supply : 230 V~ 50 Hz
Rated speed : 26 min
-1
Rated torque : 2x4,5 Nm
: 2x9,5 Nm
Rated power : 152 W (2x4,5)
: 260 W (2x9,5)
Rated current : 0,7A(2x4,5)
: 1,25A(2x9,5)
Continuos operating time : 4 minutes
IP insulation : IP54
Insulation class : H
Max n° of turns : 100
01. TECHNICAL SPECIFICATIONS
02. WARNINGS
Incorrect installation can cause serious injuries Keep these instructions for future maintenance work and disposal of the product All the product installation, connection,
programming and maintenance operations must be carried out only by a qualified and skilled technician, who must comply with laws, provisions, local regulations and the instructions
given in this manual The wiring must comply with current IEC standards. The final electrical system must be created only by the electrician Some applications require hold-to-run
operation and can exclude the use of radio controls or require particular safety devices To prevent potentially dangerous situations, check the operating condition of the roller
shutter/awning regularly
● ●
● ●
●
02.1 Warnings for safety
Check that the package is intact and has not been damaged in transit A heavy knock and the use of unsuitable tools can cause the damage of the external or internal parts of the motor●
● ●
Do not pierce or tamper with the motor in any way. Do not modify or replace parts without the manufacturer's permission Do not carry the motor by the power cable.
The product may not be used if the power cable is damaged. Do not try to replace the power cable Any screws needed to complete the installation must not come into contact with the
motor The power of the motor must be sufficient for the applied load (check the rated data shown on the motor) If the product is installed at a height of less than 2.5 m from the floor or
from another support surface, the moving parts must be protected with a cover to prevent accidental access. In any case, ensure access for maintenance work The power cable must
be positioned in such a way that it does not come into contact with moving parts If installed outside, it is a good work place the cable in a protective tube Position the buttons within
sight of the roller shutter/awning but a long way from its moving parts. Position the buttons more than 1.5 m from the floor The motors are designed for residential use; the maximum
continuous operating time is 4 minutes During operation, the motor body becomes very hot, so be careful The motor contains a self-resetting thermal cut-out, which stops the motor
if it overheats. The motor returns to normal operation when its temperature drops below the safety limit (normally after 8 to 12 minutes) The motor must be installed so that it cannot
come into contact with liquids and in any case in a position protected from atmospheric agents For your safety, do not work near the winding roller while the motor
●
● ●
●
●●
●
●●
●
●
is powered
The product is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are
supervised or given instructions about the product way of use by a person responsible for their safety Check the automation during the movement and keep people at a safe distance,
until the movement ends Do not allow children to play with the appliance or with the fixed control devices Do not operate the blind when maintanance operations are being carried
out (e.g. window cleaning, etc.). If the control device is automatic, disconnect the motor from the power line
●
●●
02.2 Warnings for installation
02.3 Warnings for use

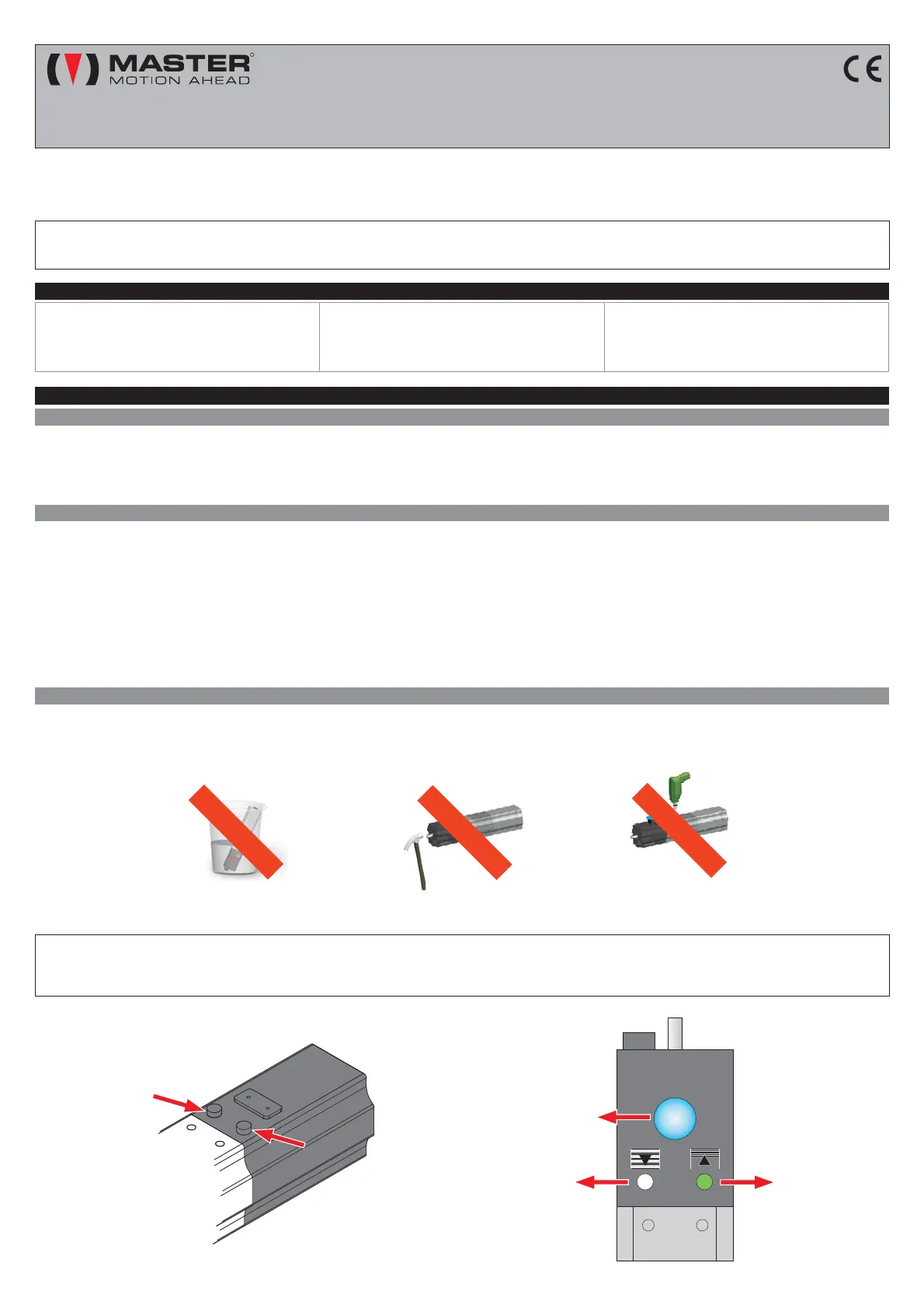

01
USER MANUAL
motor with mechanical limit switch for venetian blinds
R
rev00 24.09.2020
RIO
Information for any assistance requests
To facilitate, improve and speed up any request to the assistance service it is necessary to provide the product name to the operator.
Before installing the motor, it is recommended to copy the technical data (including the extended product name) and store them in a safe place
WHITE button:
adjustment of
LOW limit switch
GREEN button:
adjustment of
UP limit switch
STOP button
(if mounted)
IMPORTANT:
The limit switch adjustment buttons are covered by rubber caps. They are used to guarantee the indicated IP protection
degree: once the limit switches have been adjusted, replace the caps in their seats.
Caps to remove
to reach the buttons for
adjustment of limit switch
