model no. 054-8153-0 | contact us 1.800.689.9928
18

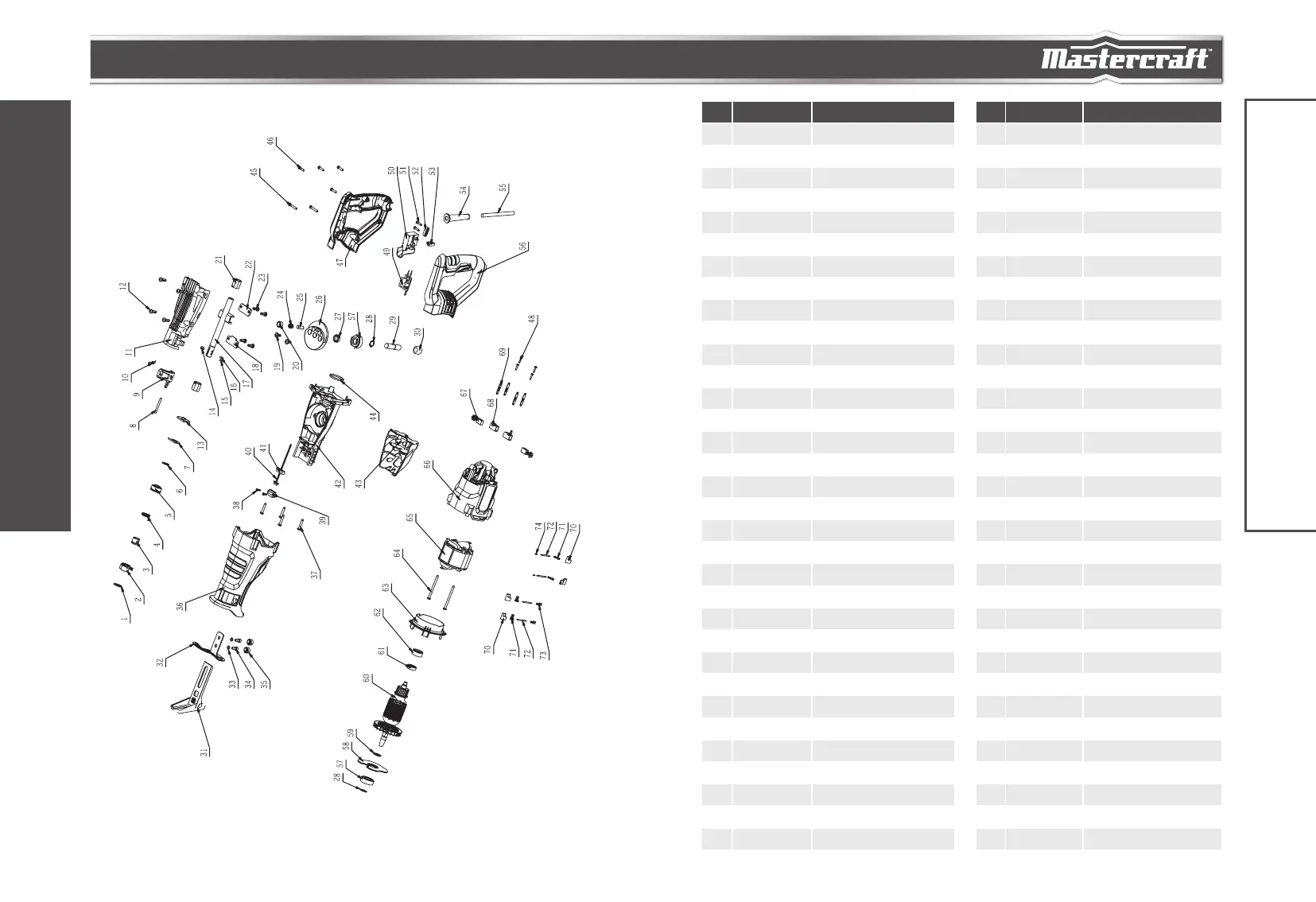

EXPLODED VIEW
No. Part No. Description No. Part No. Description
1 5660145000 Circlips For Shaft 34 5620018000 Hexagon Socket Screw
2 3421211000 Rotate Bush 35 3122839000 Screw Cover
3 3550610000 Bush 36 3124649000 English Name
4 3660386000 Torsion Spring 37 5610044000 Tapping Screw
5 3125769000 Sleeve 38 5610099000 Thread Forming Screw
6 5660032000 Circlips For Shaft 39 3123890000 LED Cover
7 3704941000 support 40 4890433000 PCB Assembly
8 5670285000 Pin 41 3123891000 LED Holder
9 3703947000 Lever Insert 42 3421571000 Gear Case
10 3660260000 Torsion Spring 43 3127564000 Handle Support
11 3421570000 Gear Case Cover 44 3121057000 Rubber Ring
12 5610058000 Thread Forming Screw 45 5610034000 Tapping Screw
13 3700546000 Felt Block 46 5610103000 Tapping Screw
14 5670303000 Pin 47 3321814000 Right Handle
15 5670199000 Pin 48 5610008000 Tapping Screw
16 5670194000 Pin 49 4890462000 PCB Assembly
17 2822967000 Plunger Assembly 50 4870419000 Trigger Switch
18 3700364000 Bearing Clamp 51 5610024000 Tapping Screw
19 5620396000 Screw with Washer 52 3120234000 Cord Anchorage
20 3551374000 Crank Roller 53 4930004000 Connecter
21 3520736000 Aligning Bearing 54 3121045000 Cord Guard
22 3704640000 Clamp 55 4810002000 Power Cord & Plug
23 5610057000 Thread Forming Screw 56 3321815000 Left Handle
24 5700212000 Needle Bearing 57 5700015000 Ball Bearing
25 3550279000 Pin 58 3704797000 Bearing Clamping Plate
26 3550999000 Gear 59 3700335000 Washer
27 3520358000 Bush 60 2750932000 Rotor
28 5660013000 Circlips For Shaft 61 5700008000 Ball Bearing
29 3551611000 Gear Shaft 62 3121776000 Bearing Holder
30 5700182000 Needle Bearing 63 3127561000 Fan Baffle
31 2823945000 Pivot Shoe 64 5610049000 Tapping Screw
32 3705689000 Front Handle Support 65 2740115000 Stator
33 5650015000 Spring Washer 66 3124917000 Motor Housing
PART LIST
PART LIST
