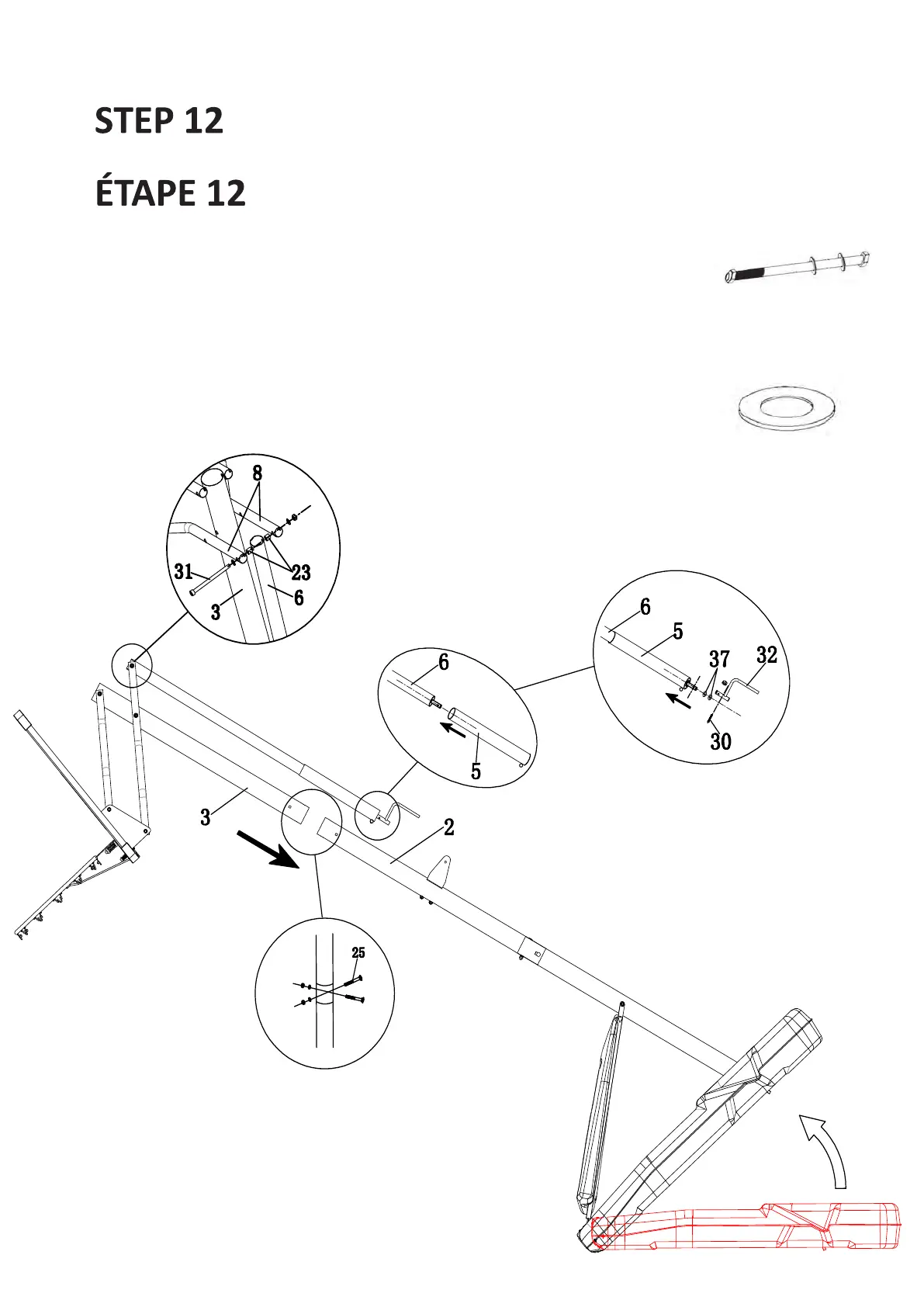

Hardware Needed
Matériel nécessaire
30
Bolt, Screw
Boulon,vis
5*25mm
QTY:1
31
Bolt, Screw
Boulon,vis
M12*160mm
QTY1
37
Washer
Rondelle
25*12.5*1.0mm
QTY:2
