9.3 LOWER CONTROL BOARD REPLACEMENT
1) Turn off the power and disconnect the cord from the machine.
2) Remove both front disks from the machine as outlined in Section 9.1.
3) Disconnect all wires from the LCB (Figure A).
4) Remove the 2 screws holding the LCB to the frame (Figure B).
5) Reverse Steps 1-4 to install a new LCB.
6) Test the Suspension Elliptical for function as outlined in Section 9.21.

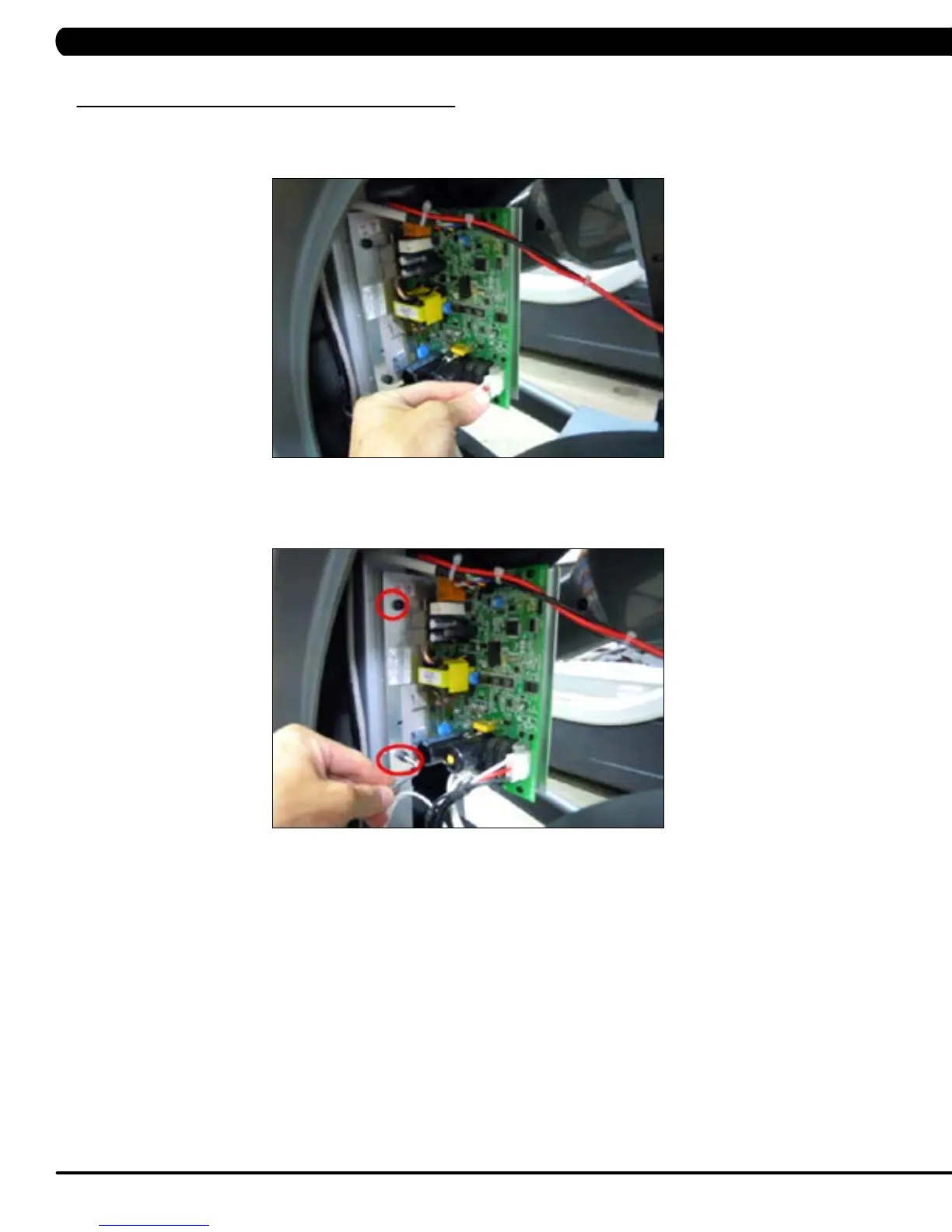

FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
