Matrix MFU201 User Manual

14

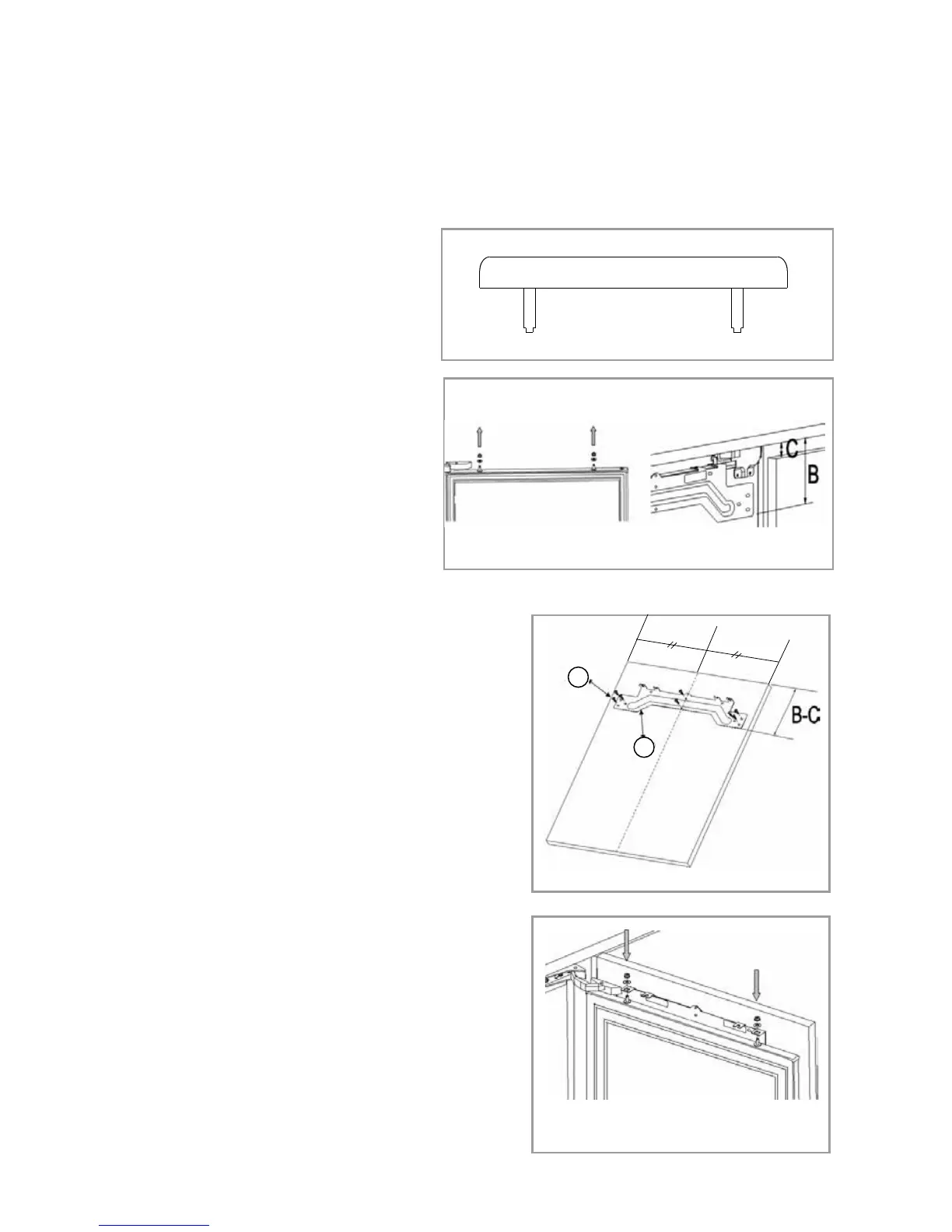

Mounting the fascia doors
2
1
g.
Fig. 6 - Fitting the decor door bracket
Remove the white decorative cover (Fig. 5) by lifting it upwards.
Obtain the below measurements:
Dimension B= Measure from
the underside surface of
kitchen unit to the bottom of
fixing bracket.
Dimension C= Measure from
the underside surface of
kitchen unit to the top of next
unit door.
Unscrew and remove the
nuts and washers from the top of the
appliance door to remove the bracket.
Fig. 7 - Fitting the decor door bracket
Subtract C from B and put the
fixing bracket (2) in place using this
measurement for vertical position and
place to the centre for horizontal
position. Secure the fixing bracket (2)
using screws(1).
Fig. 8 - Fitting the decor door
Place the decor door onto the
appliance door by inserting adjustment
bolts into the slots on the fixing bracket.
g. 8
g. 9
g. 7
Fig. 5
Fig. 6
Fig. 7
Fig. 8
