Matrix R3XE-01 User Manual

57

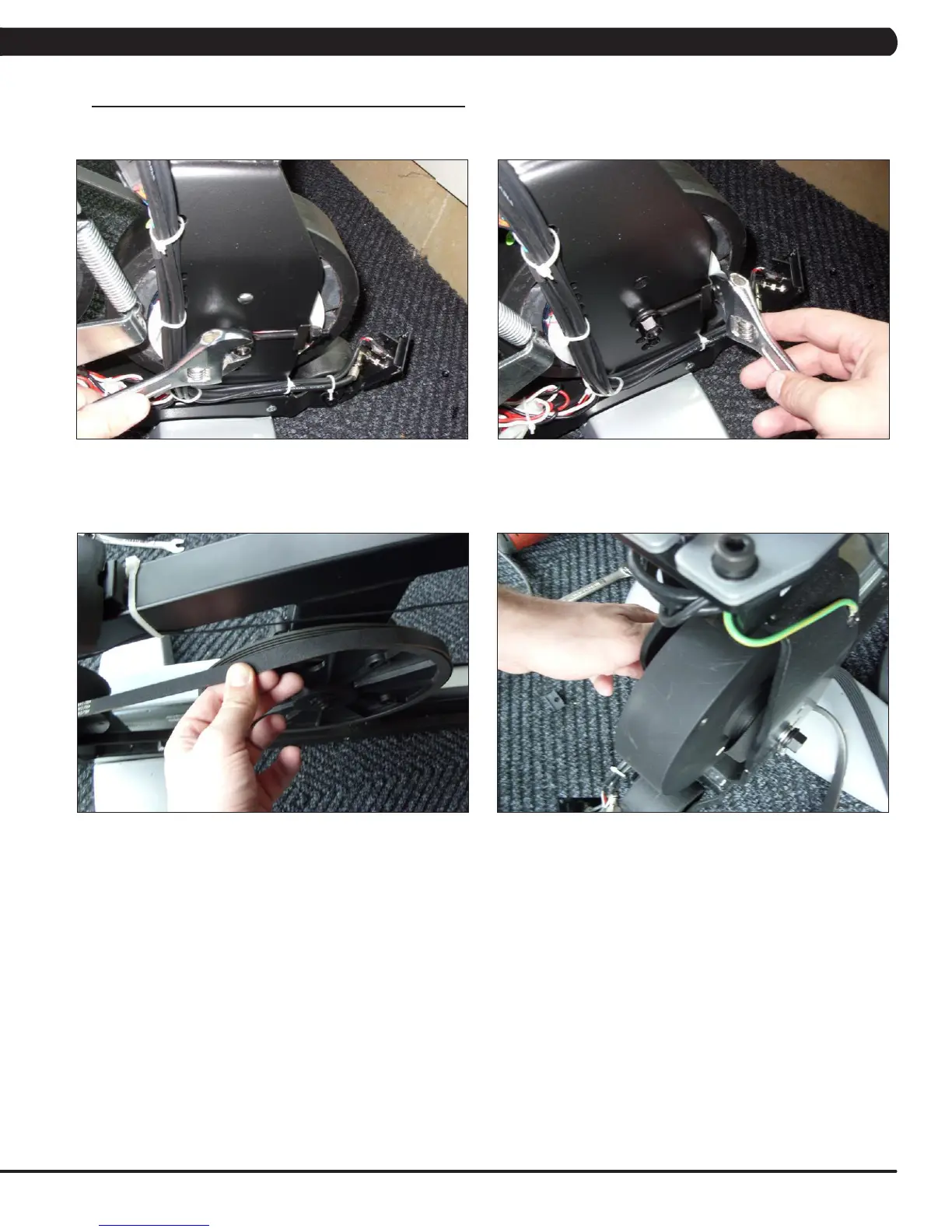

9.20 GENERATOR REPLACEMENT
1) Remove the front shrouds as outlined in Section 9.15.
2) Remove the nuts holding the generator to the frame (Figure A), and remove the nuts putting tension on the generator belt (Figure B).
3) Once the tension has been removed, the generator belt can be walked off of the pulley (Figure C).
4) Pull the generator out of the frame towards the front of the unit, and remove the generator belt (Figure D).
5) Reverse Steps 1-4 to install a new generator.
6) Test the bike for function as outlined in Section 9.23.
FIGURE A FIGURE B
FIGURE C FIGURE D
CHAPTER 9: PART REPLACEMENT GUIDE
