Matrix T3xm Service Manual

8
CHAPTER 3: TROUBLESHOOTING

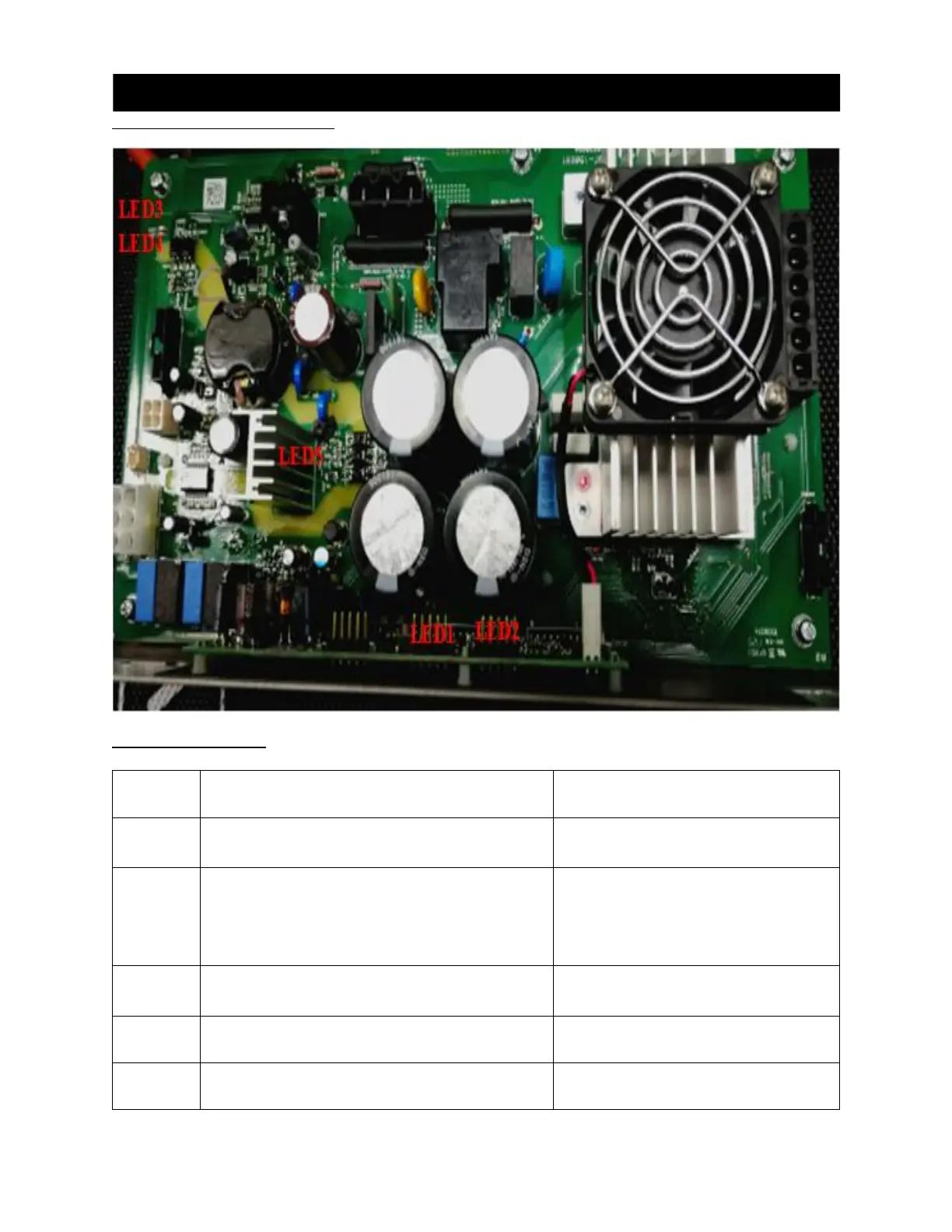

MCB WIRING INSTRUCTIONS.
MCB LED FUNCTION
LED No
Function
Symptom
LED 1
The flashing light represent normal
communication
LED 1 Flashing
LED 2
Flashing once per second, said drive action
and Power ON, often goes out the Power
OFF, normally ON said drive failure
LED 2 Flashing
LED 3
The indication when the lift motor drops
LED 3 Light on
LED 4
The indication when the lift motor rises
LED 4 Light on
LED 5
The indication of console working
power(+12V)
LED 5 Light on
