13
CHAPTER 5: T5x, T7x, T7xe T
readmill specifications, parts, and assembly Guides
5.3 T5x, T7x, T7xe MODEL ASSEMBLY STEPS
Open Black Assembly Bag. Assemble both the left and right console masts to
the treadmill base using item 10-socket head cap screw and item
14-flat washer.
ATTENTION
After assembly and installation is complete the treadmill will need to be calibrated using the auto-calibration feature found in the manager mode
screen. Please refer to the Matrix treadmill service manual for instructions on how to enter management mode. DO NOT stand on the belt while the
auto-calibration sequence is in progress.
Prior to assembling the treadmill, unpack all of the contents of the box and make sure that all necessary components are present. Review the
contents of the hardware package for completeness. Contact Matrix customer service at 866.693.4863 to report any missing items.
ASSEMBLY INSTRUCTIONS
Please make sure that the power plug is not plugged into the wall outlet while completing the following procedure.
To ensure correct assembly of the treadmill, carefully read and follow these steps:
*Assembly steps are shown using a T5x. Assembly steps for T7x and T7xe are identical to what is shown below.

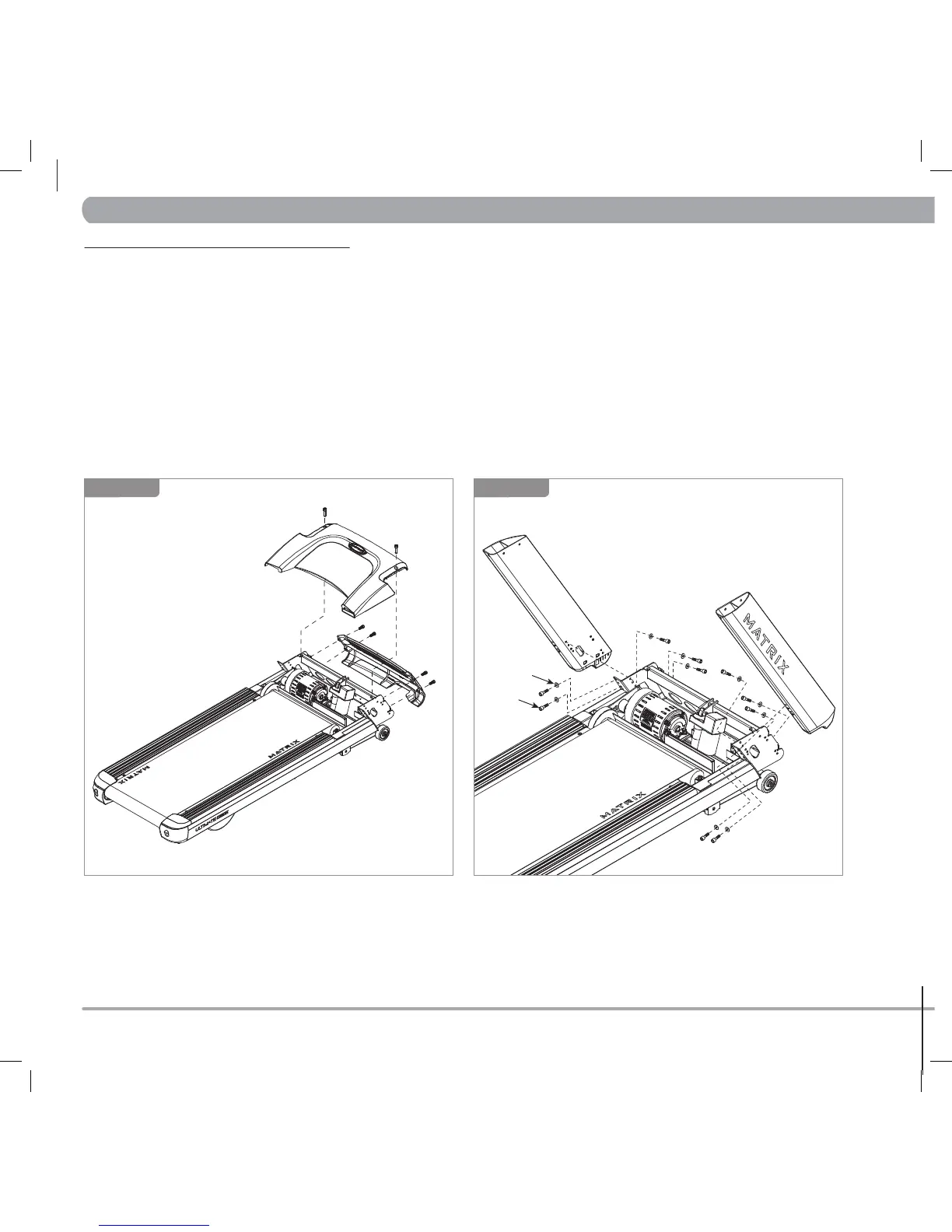

Remove the motor cover(s) and set aside. The motor cover(s) need to be
removed to gain access to the motor compartment so that wire harness
connections can occur.
STEP 1
STEP 2
Z51
Z51
Z50
Z52
10
14
STEP 1
STEP 1
STEP 2
Z51
Z51
Z50
Z52
10
14
STEP 2
T7-T5_Treadmills_r1.5.indd 13 2/8/10 1:22 PM
