10.2 ASSEMBLY INSTRUCTIONS - CONTINUED

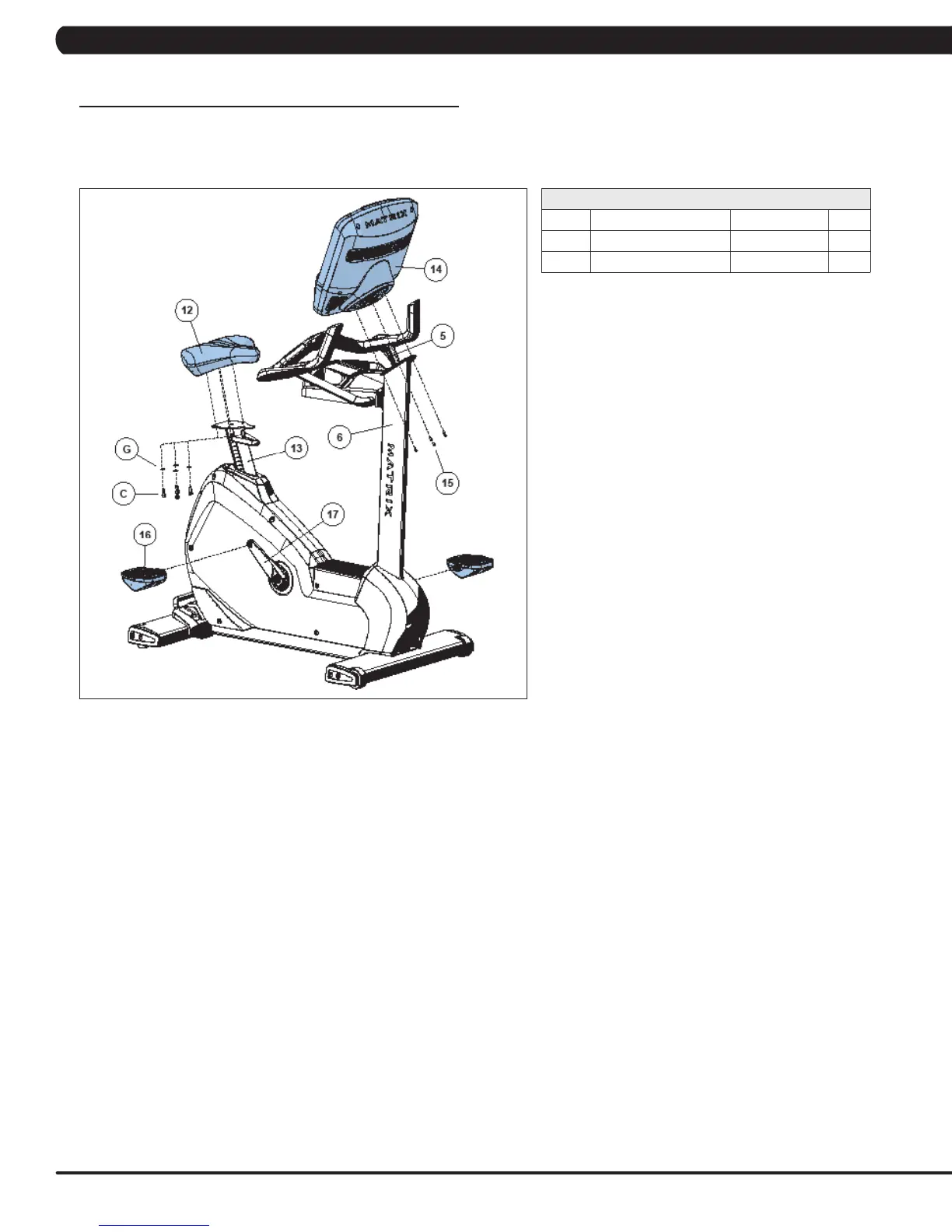

STEP 5
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE
A Open GREEN HARDWARE BAG.
B Attach the SEAT (12) to the SEAT POST
(13) using 4 BOLTS (C) and 4 SPRING
WASHERS (G).
C Attach the CONSOLE CABLES (5) to the
CONSOLE (14).
D Attach the CONSOLE (14) to the
CONSOLE MAST (6) using 4 PRE-
INSTALLED BOLTS (15).
E Attach PEDALS (16) to the CRANK (17)
with the provided 15mm/17mm flat wrench.
PURPLE HARDWARE BAG
PART TYPE DESCRIPTION QTY
C SOCKET HEAD BOLT M8X20L 4
G SPRING WASHER Φ8.5XΦ18.0X2.0T 4
To Next Page
