Matrix VS-S22 User Manual

26

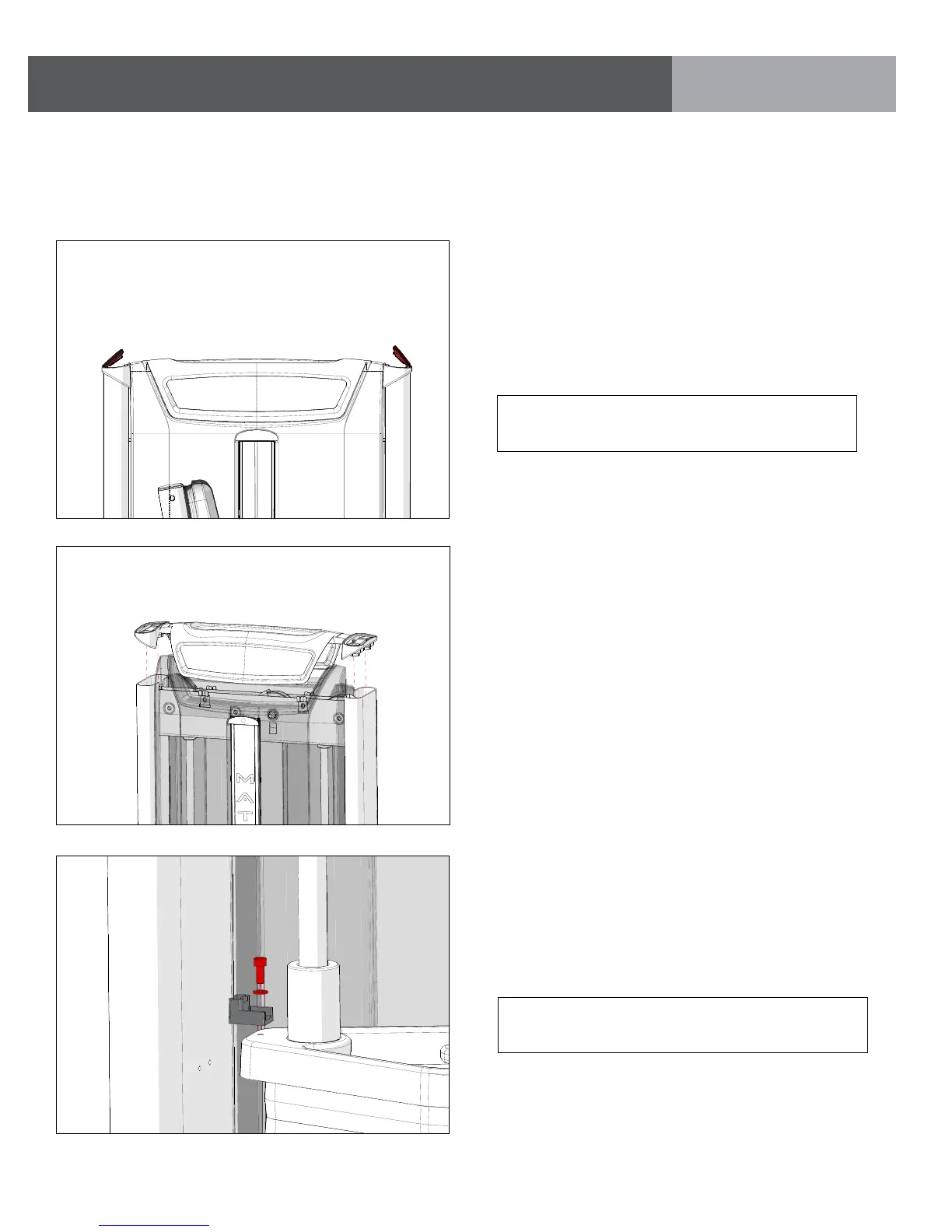

STEP 1 | PREMIUM KIT ASSEMBLY INSTRUCTIONS & NOTES
PART 9: PREMIUM KIT ASSEMBLY
Rep Counter - Magnet
ASSEMBLY
1. Remove the (2) top cap covers (Item 59) using a
flat blade screw driver.
2. Remove the (4) M8 bolts and 20 mm diameter
washers that hold the top cap to the weight stack
frame.
3. Remove top cap and rear shroud.
4. Assemble the Repetition Counter magnet holder
to the headplate using the M5 X 12L bolt and M5
washer provided with the kit.
Holder must be mounted on thes same side of
the weight stack as Rep Counter
Top cap covers, 20 mm diameter washers &
M8 screws can be discarded
