7.04
2
1
7
8
1
1
1
A
4
5
6
TI013G0008
Maintenance

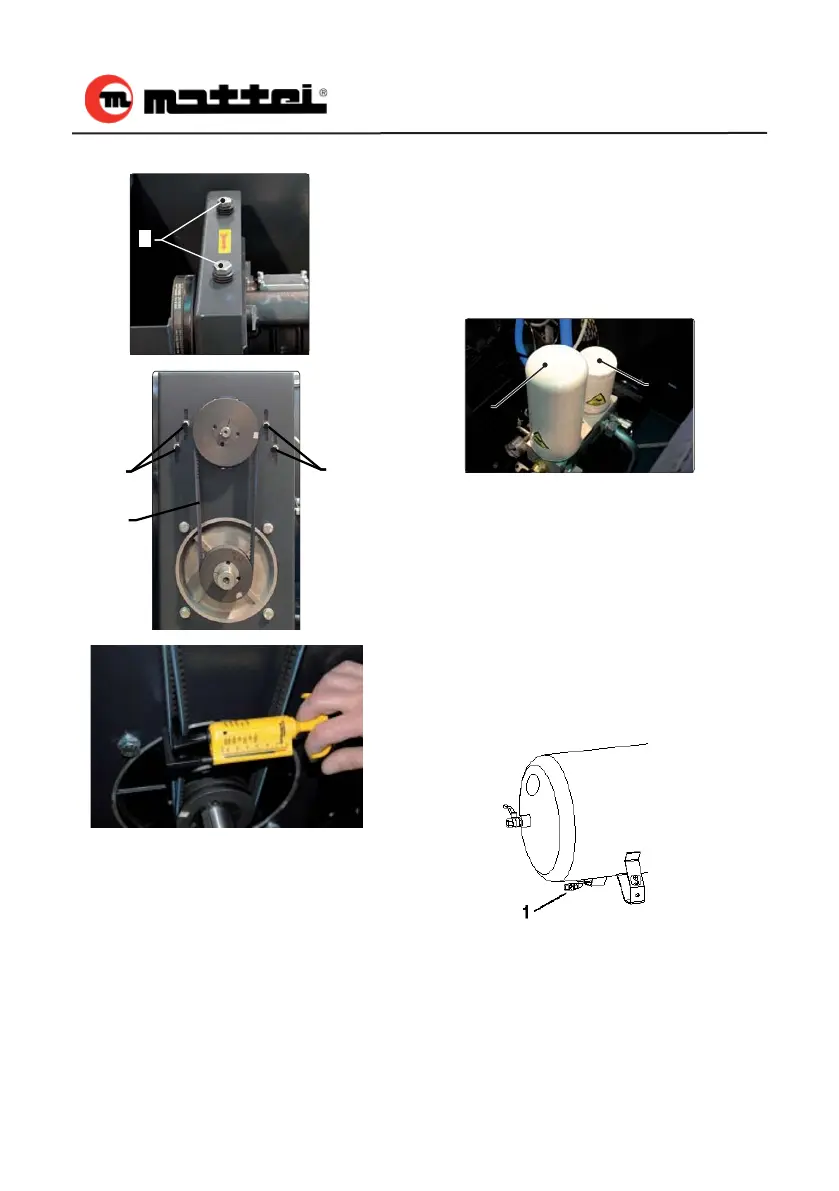

Belt Replacement
Be sure that the machine is switched off.
Remove the upper and frontal panel to ac-
cess the compressor. Unscrew the bolts
(Pict.5-pos.1) and adjust the screws (Pict.
4-pos.1) to tight the belts. Remove the belts
and replace them with new ones. Tighten
the belts as described in the previous pa-
ragraph.
Replacement of Oil Filter Element
Replace the oil fi lter element each time the
oil is changed.
Be sure that the machine is switched off.
Remove the upper panel of the machine.
Dismantle the fi lter element (Pict.7-pos.1)
by using chain tongs and replace it with a
new unit. Before locking the fi lter element,
lubricate the gasket. Screw the new fi lter
element on using a strap wrench.
Replacement of the Air-Oil separator Fil-
ter Element
Be sure that the machine is switched off.
Open the inspection panel. Dismantle the
fi lter element (Pict.7-pos.2) by using chain
tongs and replace it with a new unit. Before
locking the fi lter element, lubricate the ga-
sket. Screw the new fi lter element on using
a strap wrench.
Eliminating the receiver condensate
(Pict. 8)
On receiver version only. Open the tank
drain valve and collect the condensate in-
side the receiver in accordance with regu-
lations in force.
