Page 3
The direction of dryer door(s) can be reversed if desired.
For single model or lower dryer of stacked pair (see figure below):
1. Disconnect from electricity supply.
2. Remove the hinge hole covers and screws. Move the door catch cover to the opposite side.
3. While supporting the door remove 2 screws in the hinges that secure the hinges to the cabinet.
4. Remove the door by lifting slightly at the hinges and pulling the hinge tabs out of their slots.
5. Move the following parts to the opposite side of the door: 2 hinges and 4 hinge screws, 4 door screws,
door strike and screw, inner door cover plate and screw.
6. Attach the door to the opposite side of cabinet using the 2 countersunk hinge screws.
7. Tightening the lower hinge screw first will help to align the door and hinges.
8. Replace the hinge hole covers and screws in the opposite side.
For upper dryer of stacked pair (see figure below):
1. Remove the 2 hole plugs by gently prying out with a screwdriver. Pull the door catch cover off the door catch.
2. While supporting the door remove the 4 screws in the hinges that secure the hinges to the front panel.
3. Move the following parts to the opposite side of the door: 2 hinges and 4 hinge screws, 4 door screws,
door strike and screw, inner door cover plate and screw.
4. Attach the door to the opposite side of front panel using the 4 countersunk screws.
5. Tightening the lower hinge screw first will help to align the door and hinges.
6. Replace the 2 hole plugs in the opposite side of the front panel.

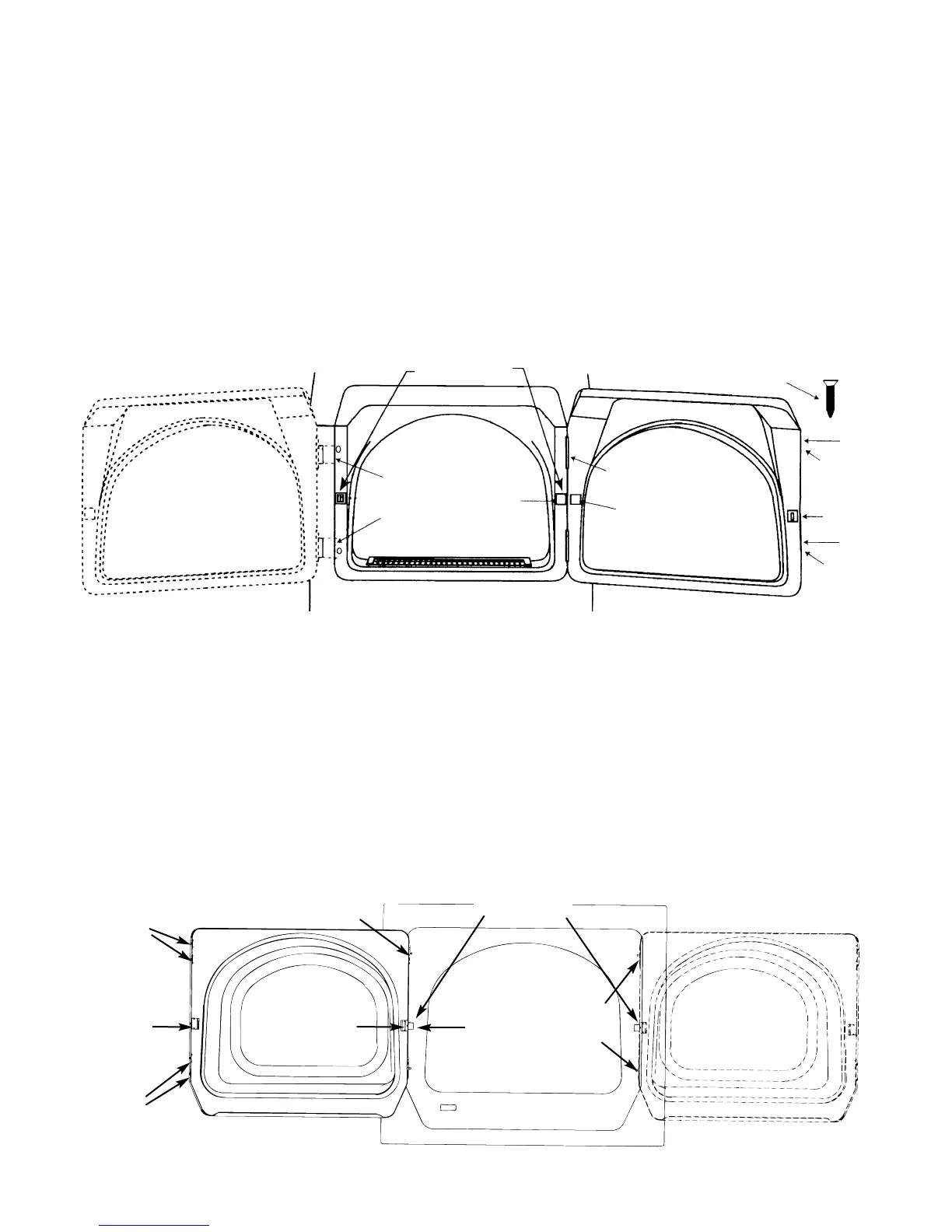

DOOR CATCH
HINGE
HOLE
COVER
DOOR
CATCH
COVER
DOOR
SCREWS
DOOR
SCREWS
DOOR
STRIKE
INNER DOOR
COVER PLATE
COUNTER
SUNK SCREW
HINGE
DOOR CATCH
HINGE
HOLE
COVER
DOOR
CATCH
COVER
DOOR
SCREWS
DOOR
SCREWS
DOOR
STRIKE
INNER DOOR
COVER PLATE
HINGE
