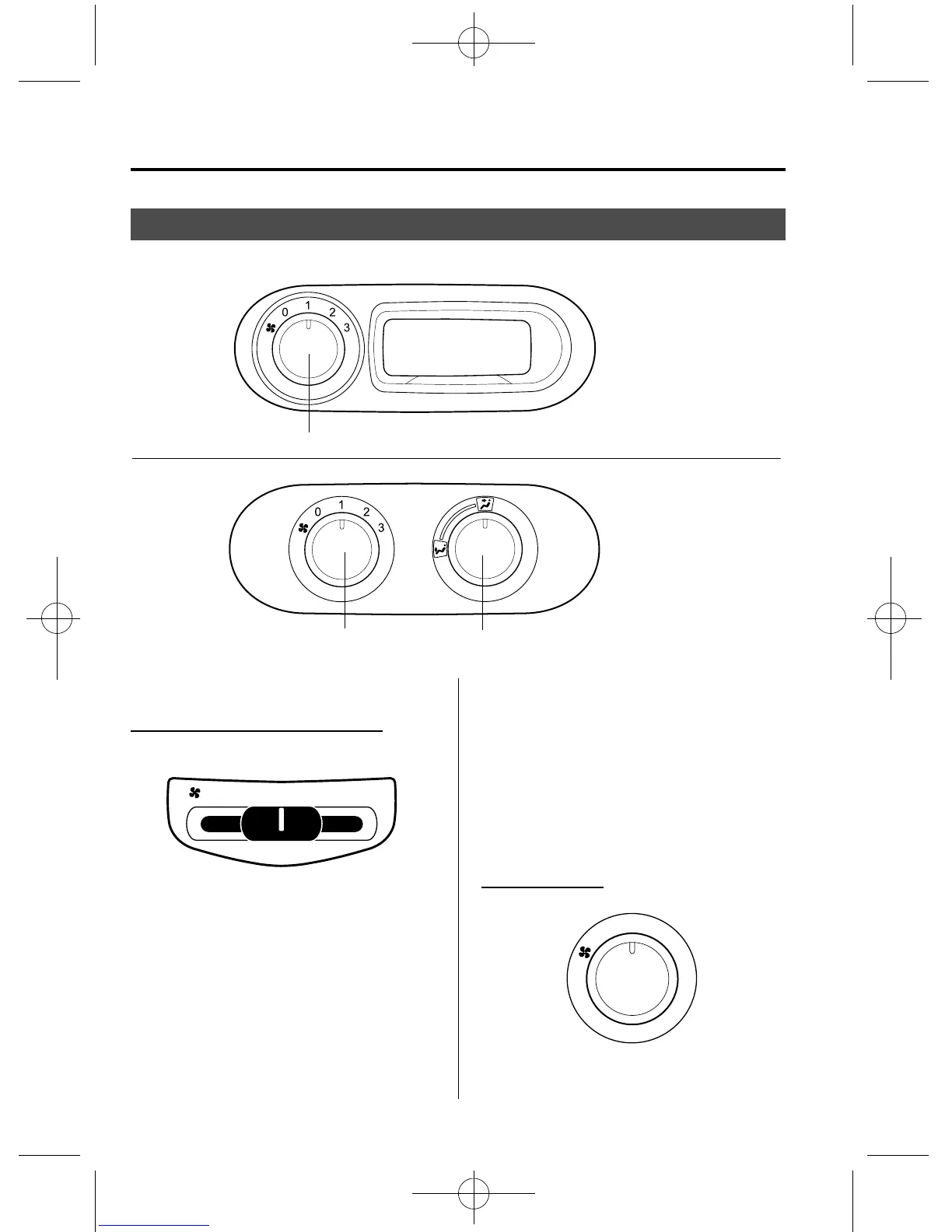

Control Panel (Rear)
í
Fan control dial
Fan control dial Mode selector dial
Type A
NOTE:
(Rear heater type)
(Rear cooler type)
Type B
Supplies only hot air
out of floor outlets.
NOTE:
Supplies cold or hot
air out of roof vents
or floor outlets.
Supplies only cold air
out of roof vents.
qControl Switches
Rear air conditioner main switch
0123REAR
The air conditioner has front and rear
controls. The front air conditioner controls
override the rear controls.
The rear air conditioner main switch is
under the front air conditioner control
panel.
This switch allows variable fan speeds for
the rear air conditioner.
0―Fan off
REAR―Select the desired fan speed with
rear air conditioner control panel.
1―Low speed
2―Medium speed
3―High speed
Fan control dial
02
1
3
This dial allows variable fan speeds.
6-12
Interior Comfort
í
Some models.
Climate Control System
Mazda MPV_8U61-EA-05G_Edition1 Page190
Tuesday, June 21 2005 9:35 AM
Form No.8U61-EA-05G
