Three-dimensional object on vehicle rear

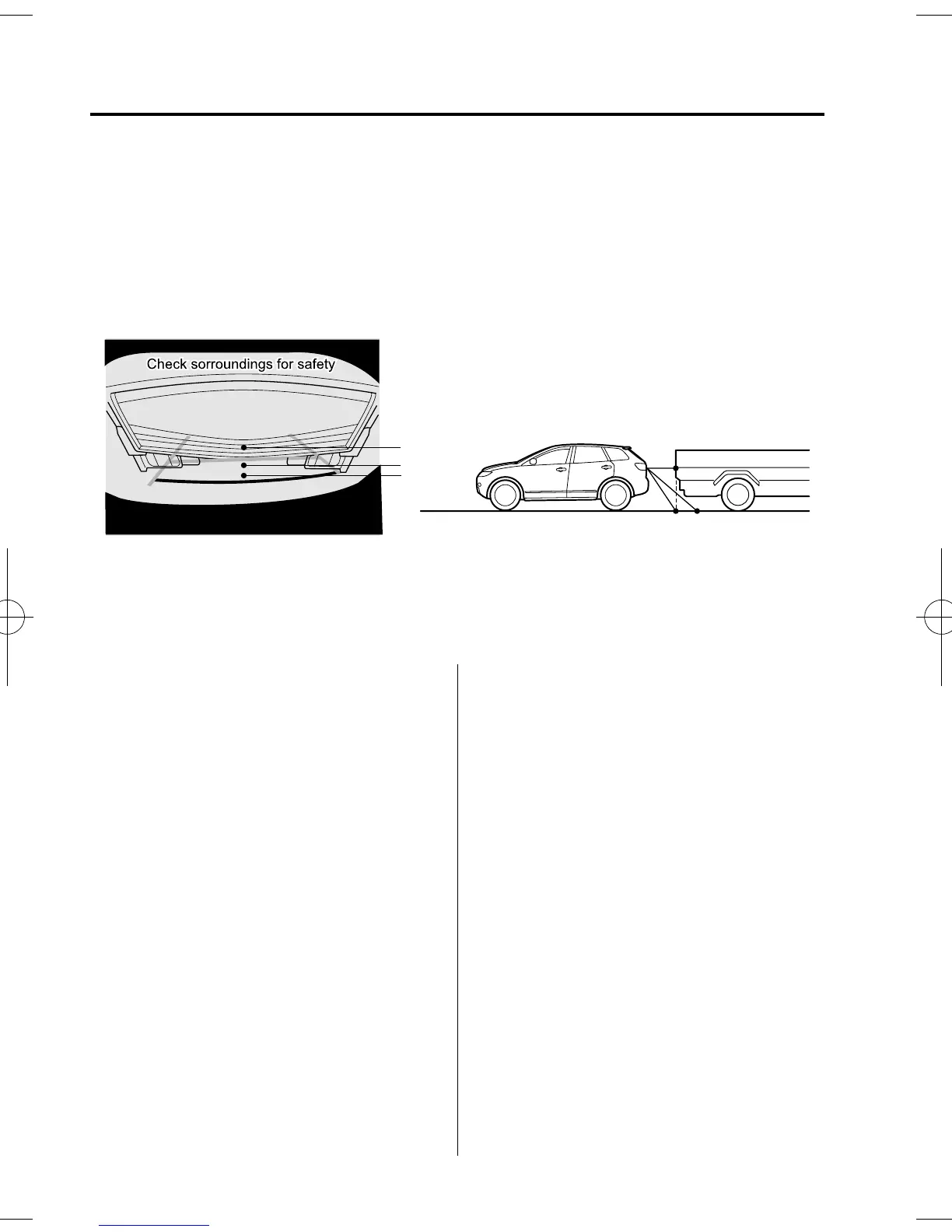

Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensi onal object displayed on the screen is different from the actual distance.
A
A
C
B
CB
(Actual distance) B>C=ASensed distance on screen A>B>C
(Screen display)
(Actual condition)
qImage Quality Adjustment
Image quality adjustment can be d one
while the shift lever is in reverse (R) and
the rear view monitor is displayed. For
detailed information, refer to the audio
section or the screen adjustment related
information in the
“NAVIGATION SYSTEM Owner's
Manual”.
While the shift lever is in reverse (R),
always check the vehicle's surroundings
adequately before performing the image
quality adjustment.
6-180
Interior Comfort
Rear View Monitor
CX-9_8AU3-EC-09G_Edition1 Page424
Monday, July 13 2009 7:12 PM
Form No.8AU3-EC-09G
