Black plate (498,1)
(ILSAC)
The quality designatio n SM, or ILSAC
must be on the label.
80
60
40
20
0
–40 –20
30
120
100
5040
20
10
0
–10
–20
–30
–40

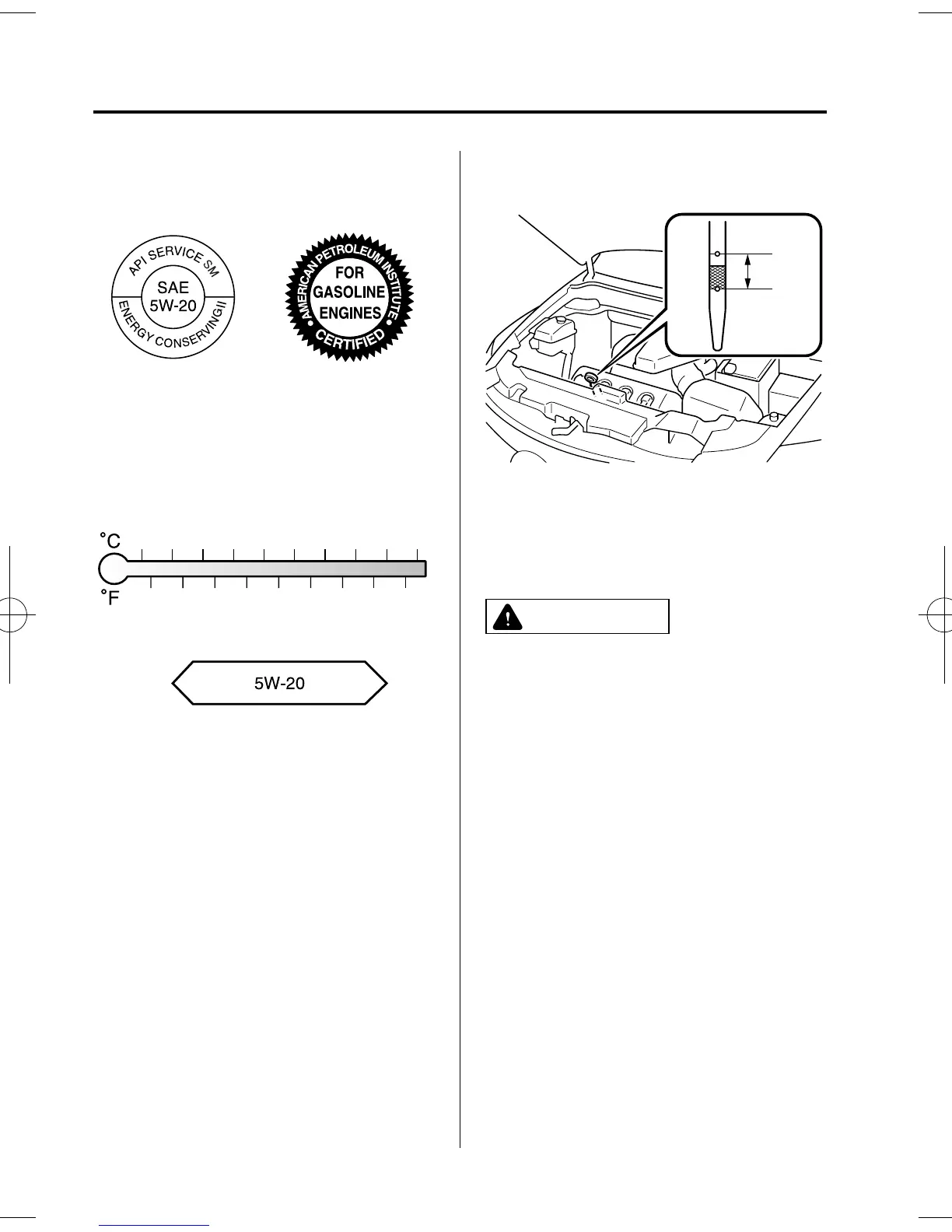

qInspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
for the oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
Max
Min
5. Pull it out again and exami ne the level.
The level is normal if it is between
MIN and MAX. If it is below MIN,
add oil to raise the level within the
hatching zone.
CAUTION
Do not add engine oil over MAX. This
may cause engine damage.
6. Make sure the O-ring on the dipstick is
positioned properly before reinserting
the dipstick.
8-22
Maintenance and Care
Owner Maintenance
CX-9_8DU1-EA-14H_Edition1 Page498
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H
