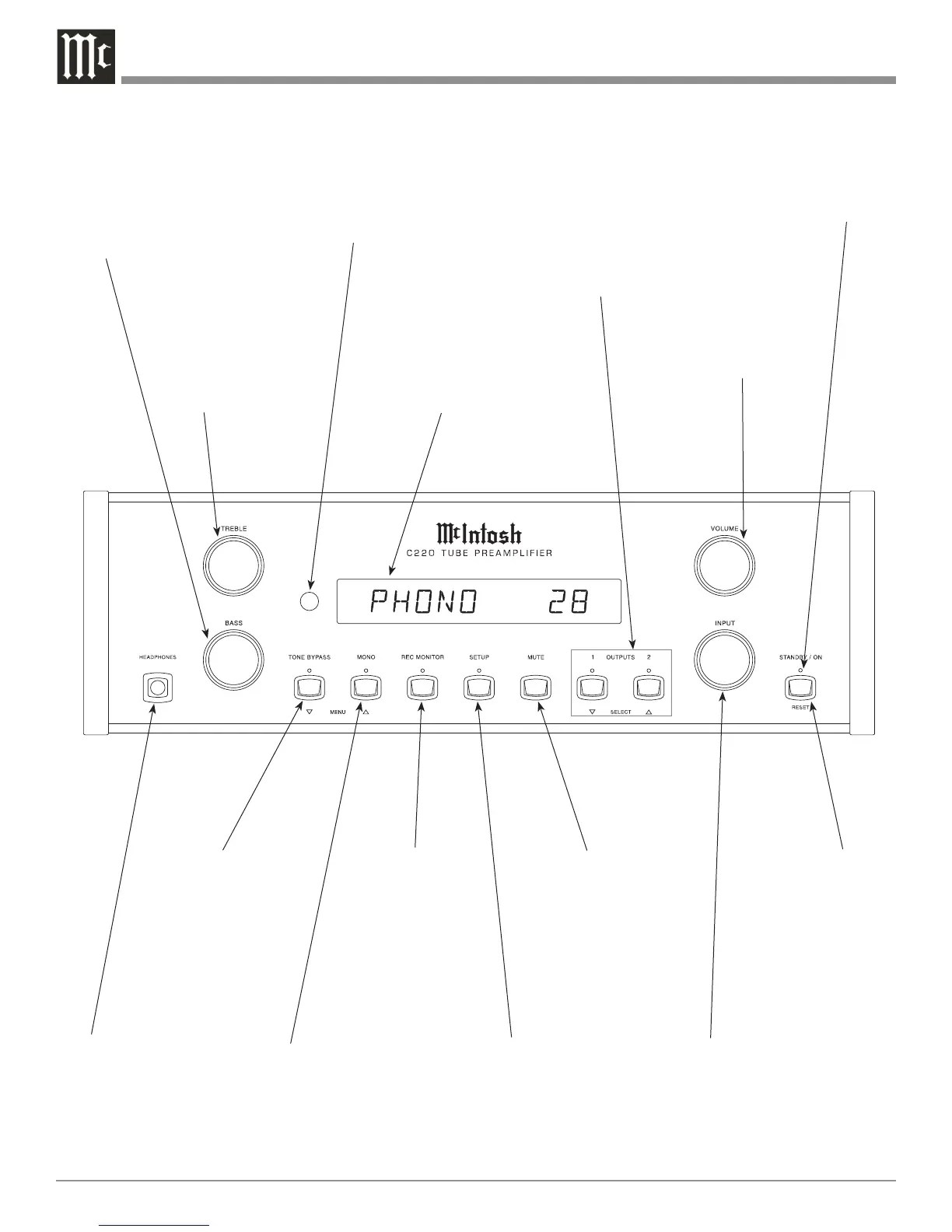

Front Panel Displays, Controls, Push-buttons and Jack
Standby Power
On Indicator
IR Sensor receives
commands from a
Remote Control
STANDBY/ON
Push-button switch
-
es the C220 ON or
OFF (Standby) and
resets the micropro-
cessors
VOLUME Control
adjusts the listening
level for both chan-
nels
Connection for low
impedance dy-
namic headphones
with 1/4” (0.64cm)
stereo phone type
plug, for private
listening
Activates the
different Mute
Modes
MONO with indicator,
combines the Left and Right
Channel signals for Mono-
phonic Sound. It is also used
in the setup mode for various
functions
INPUT Control selects
the desired audio signals
for listening and record-
ing. It is also used in the
setup mode for various
functions.
BASS Control pro-
vides 12dB boost or
cut with a flat center
position
TREBLE Control
provides 12dB boost
or cut with a flat
center position
TONE BYPASS with
indicator, when activated
the audio signal totally
bypasses the Tone Con-
trol Circuitry. It is also
used in the setup mode
for various functions
SETUP Mode Push-but-
ton with indicator, allows
the changing of the
default settings for Inputs,
Levels, Special Functions
and the Display
REC MONITOR
Push-button with
indicator, allows
listening to the
playback of REC/
TAPE Source
while the record-
ing is in process
DISPLAY indicates the
Sources, Volume/Bal-
ance Levels, Opera-
tional Functions and
Setup Mode Settings
OUTPUTS 1 and 2 Push-buttons
with indicators, allow the C220 to
switch Power Control and Audio to
two separate Stereo Power Ampli-
fiers. It is also used in the setup
mode for various functions
To Next Page
