Specifications and Performance Chart
Specifications
Frequency Response
+0, -0.5dB from 20Hz to 20,000Hz
Total Harmonic Distortion
0.002% maximum from 20Hz to 20,000Hz
Signal To Noise Ratio
Phono: 86dB (A Weighted)
High Level: 97dB (A Weighted)
Rated Output Voltage
2.5Vrms Unbalanced (Main and Outputs 1 and 2)
5Vrms Balanced (Main and Outputs 1 and 2)
Maximum Voltage Output
10Vrms Unbalanced (Main and Outputs 1 and 2)
20Vrms Balanced (Main and Outputs 1 and 2)
Output Impedance
240 ohms Unbalanced
480 ohms Balanced
Input Impedance
Phono:
47K ohms, 65pf
High Level:
22K ohms Unbalanced
47K ohms Balanced
Sensitivity
Phono:
4.5mV for rated output
High Level:
450mV for rated output Unbalanced
900mV for rated output Balanced
Maximum Input Signal
Phono:
50mV
High Level:
5V Unbalanced
5V Balanced
Voltage Gain
Phono to Tape Out: 40dB
High Level to Tape Out: 0dB
High Level to Main Out: 15dB
Power Requirements
100 Volts 50/60Hz, 50 watts
110 Volts 50/60Hz, 50 watts
120 Volts 50/60Hz, 50 watts
220 Volts 50/60Hz, 50 watts
230 Volts 50/60Hz, 50 watts
240 Volts 50/60Hz, 50 watts
Note: Refer to the rear panel of the C46 for the correct voltage.
Overall Dimensions
17-1/2 inches (44.45cm) W, 5-3/8 inches (13.69cm) H, 19
inches (48.26cm) D, including clearance for connectors
Weight
26 pounds (11.79 kg) net, 40.4 pounds (18.33 kg) in ship-
ping carton

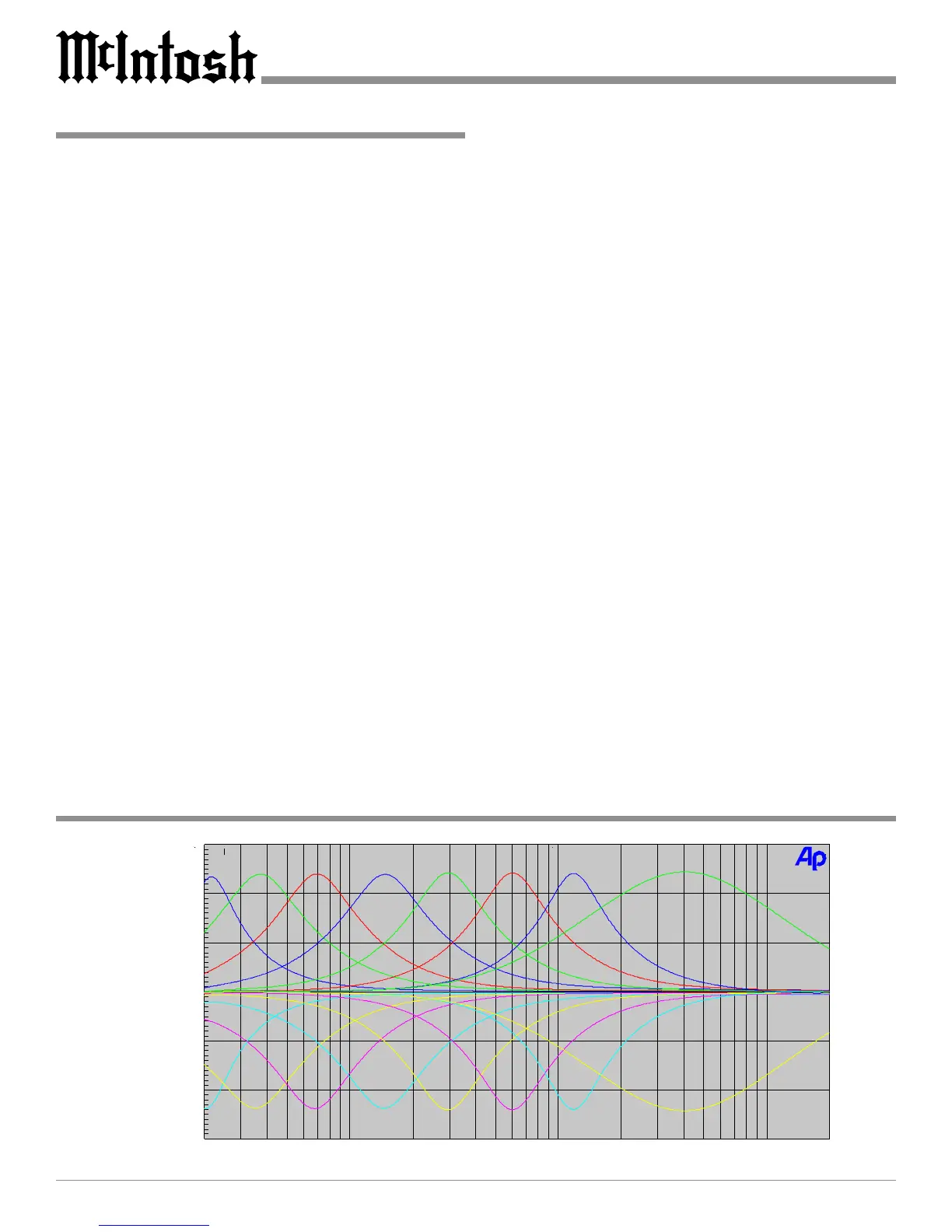

Performance Chart
-15
+15
-10
-5
+0
+5
+10
20 20k50 100 200 500 1k 2k 5k 10k
Tone Controls Frequency Response
dB
(Decibel)
Hz (Hertz)
