McIntosh C8 User Manual

10
Connect a Moving Magnet
Turntable to MM.
Connect a Moving Coil to MC.
Use ground for either
Use Unbalanced or Balanced
connections for sources such as CD
players, tuners, streamers or other
analog sources
Connect to AC
Outlet
Use Balanced or Unbalanced
connection to connect to a power
amplifier or amplifiers
Connect to Subwoofer
or second amplifier.
Can be set to stereo or
mono
IR Sensor
Connect to a
Power Control
(Trigger) Input
Connect to a Data
Port In on a source

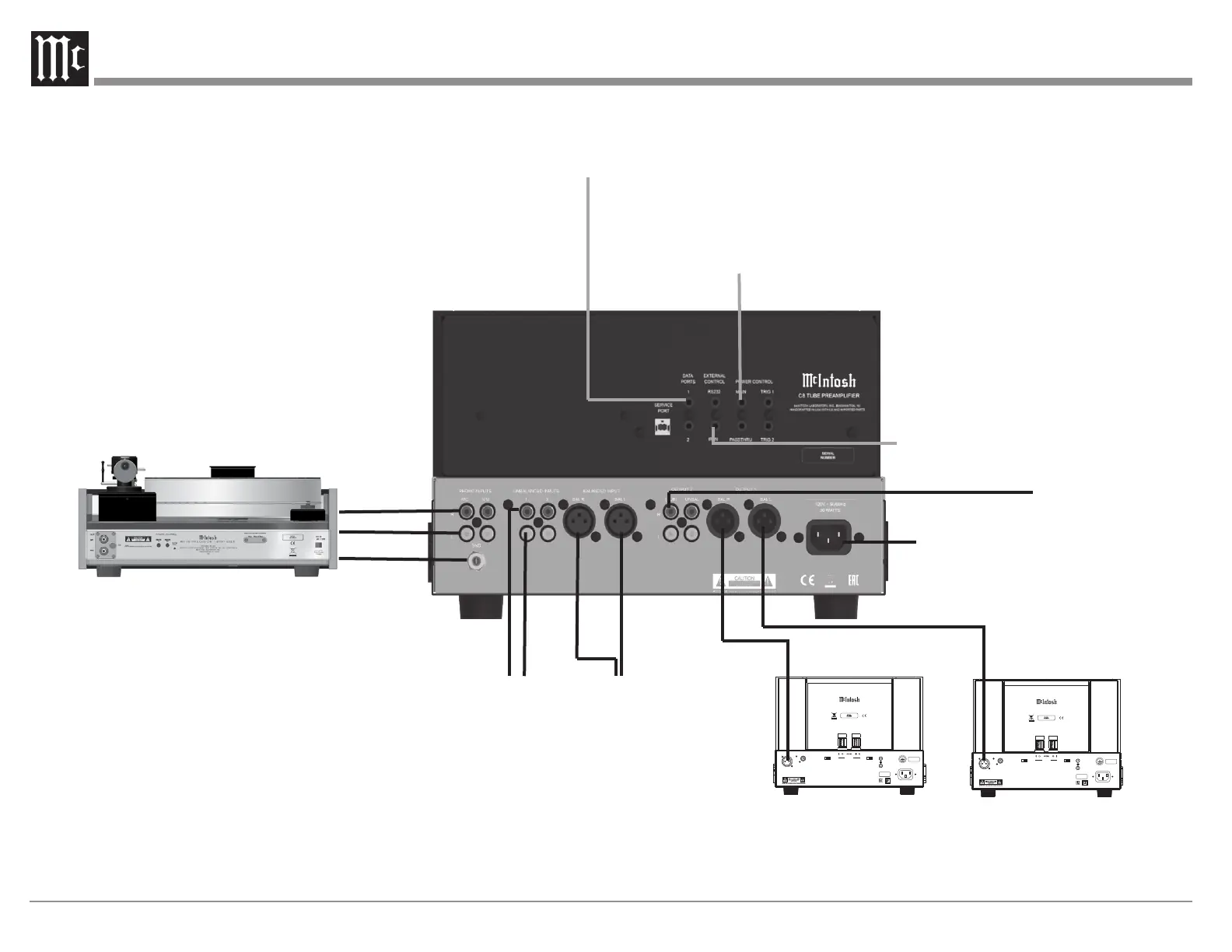

Connecon Diagram
There are many possible connections for the C8
depending on your system. This diagram shows a
few typical ones.
IN
OUT
McINTOSH LABORATORY, INC., BINGHAMTON, NY
HANDCRAFTED IN USA WITH US AND IMPORTED PARTS
T5AL 250V
120V ~ 50/60Hz
3.7A
DISENAUNBALBAL
INPUT MODE AUTO OFF PWR CONTROLBALANCED IN
/
OUTPUT
CLASS 2 WIRING
UNBALANCED IN
FUSE
PUSH
IN
OUT
McINTOSH LABORATORY, INC., BINGHAMTON, NY
HANDCRAFTED IN USA WITH US AND IMPORTED PARTS
T5AL 250V
120V ~ 50/60Hz
3.7A
DISENAUNBALBAL
INPUT MODE AUTO OFF PWR CONTROLBALANCED IN
/
OUTPUT
CLASS 2 WIRING
UNBALANCED IN
FUSE
PUSH
