UNBALANCED INPUT

for an audio cable from a

preamplifier or control cen-

ter audio output

CIRCUIT BREAKER

Press to reset if the am-

plifier will not power

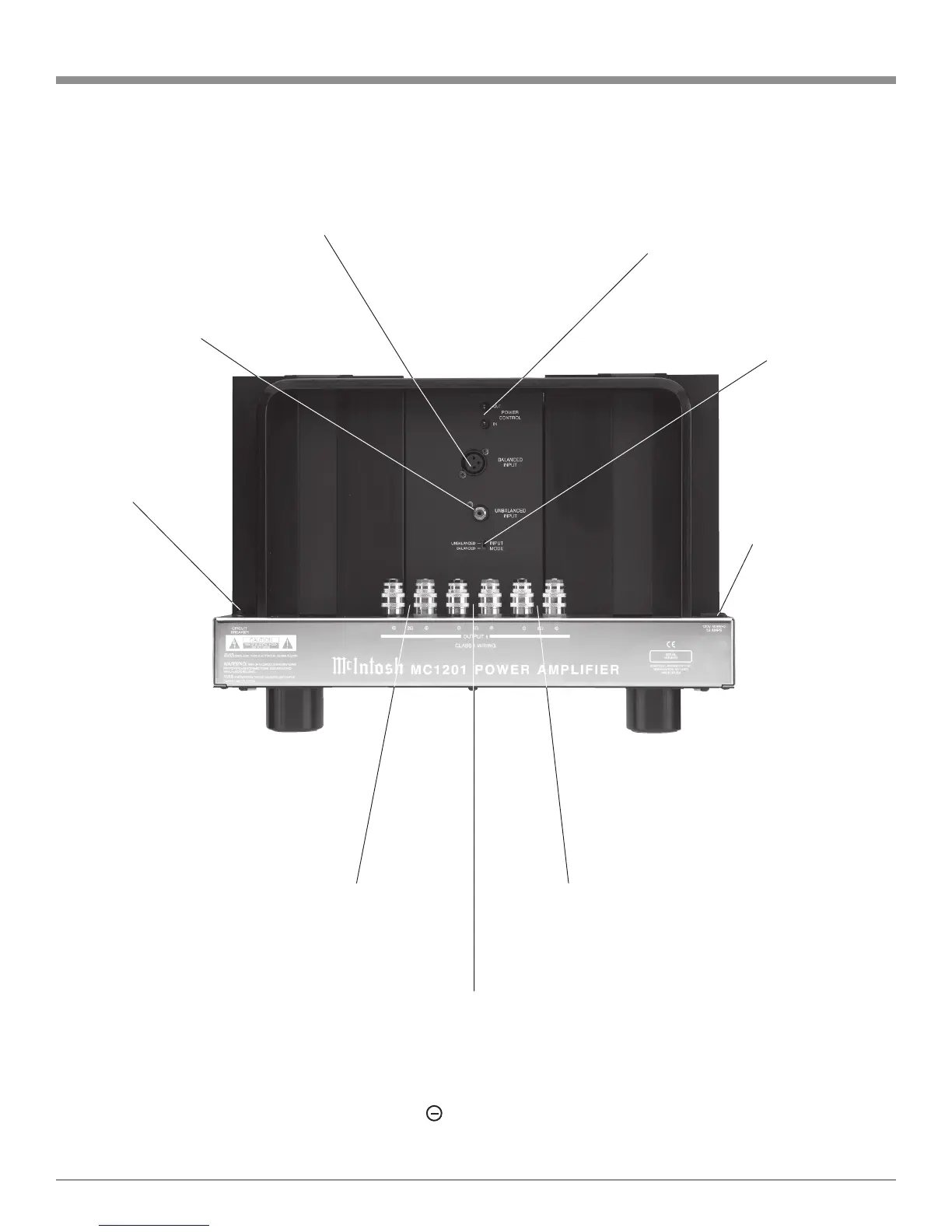

Rear Panel Connections and Switch

Connect the

MC1201 power

cord to a live AC

outlet. Refer to in-

formation on the

back panel to deter-

mine the correct

voltage

BALANCED INPUT for an au-

dio cable from a preamplifier or

control center audio output

POWER CONTROL IN receives turn On/

Off signals from a McIntosh component and

the POWER CONTROL OUT sends a turn

On/Off signal to the next McIntosh compo-

nent

OUTPUT Connections

for 4 ohm loudspeaker

INPUT MODE

switch selects

balanced or

unbalanced

input

OUTPUT Connections

for 8 ohm loudspeaker

Caution: The Loudspeaker Negative Connections are above chassis

ground. Do not combine any connections together, ground

them or connect with another MC1201.

OUTPUT Connections

for 2 ohm loudspeaker
