McIntosh MC312 User Manual

6
DISABLED
Connect the MC312 power
cord to a live AC outlet. Refer
to the rear panel to determine
the correct voltage

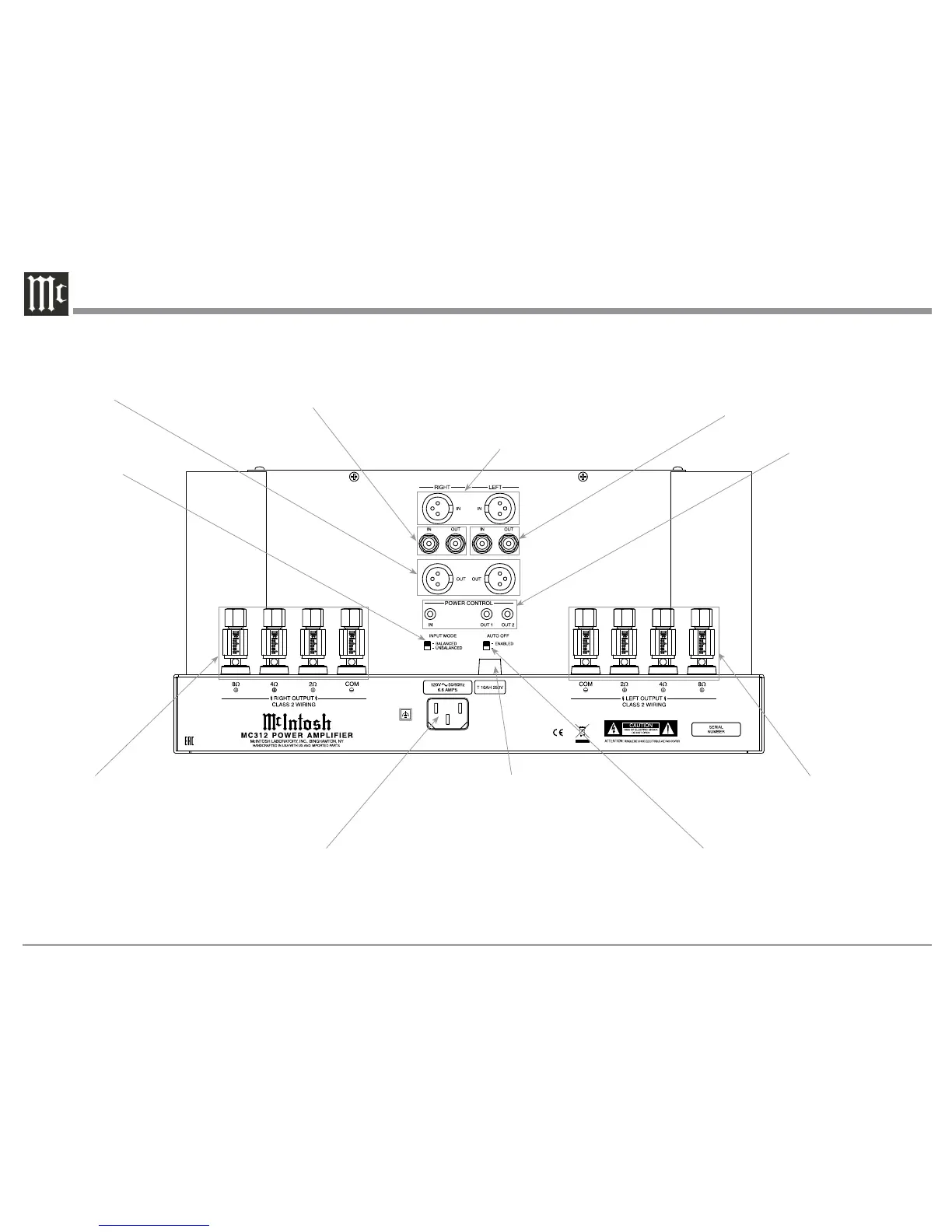

RIGHT OUTPUT Connections
for a 2 ohm, 4 ohm or 8 ohm
Loudspeaker
Rear Panel Connections and Switch
Fuse holder, refer to information
on the rear panel of your MC312
to determine the correct fuse
size and rating
LEFT OUTPUT Connections
for a 2 ohm, 4 ohm or 8 ohm
Loudspeaker
POWER CONTROL IN
receives turn On/Off
signals from a McIntosh
component.
POWER CONTROL OUT
1 and 2 send turn On/Off
signals to the next McIn-
tosh Component
Unbalanced INput (RIGHT Channel) for an
audio cable from a Preamplifier or A/V Con-
trol Center audio output.
Unbalanced OUTput (RIGHT Channel) for an
audio cable to the next Power Amplifier Input
INPUT MODE switch se-
lects between BALANCED
or UNBALANCED Inputs
Balanced INputs (LEFT
and RIGHT Channels) for
audio cables from a Pre-
amplifier or A/V Control
Center audio output
Balanced OUTputs (LEFT and
RIGHT Channels) for an audio
cable to the next Power Ampli-
fier Input
Unbalanced INput (LEFT Channel) for an au-
dio cable from a Preamplifier or A/V Control
Center audio output.
Unbalanced OUTput (LEFT Channel) for an
audio cable to the next Power Amplifier Input
AUTO OFF Mode
Switch selects be-
tween ENABLED
or DISABLED
