28

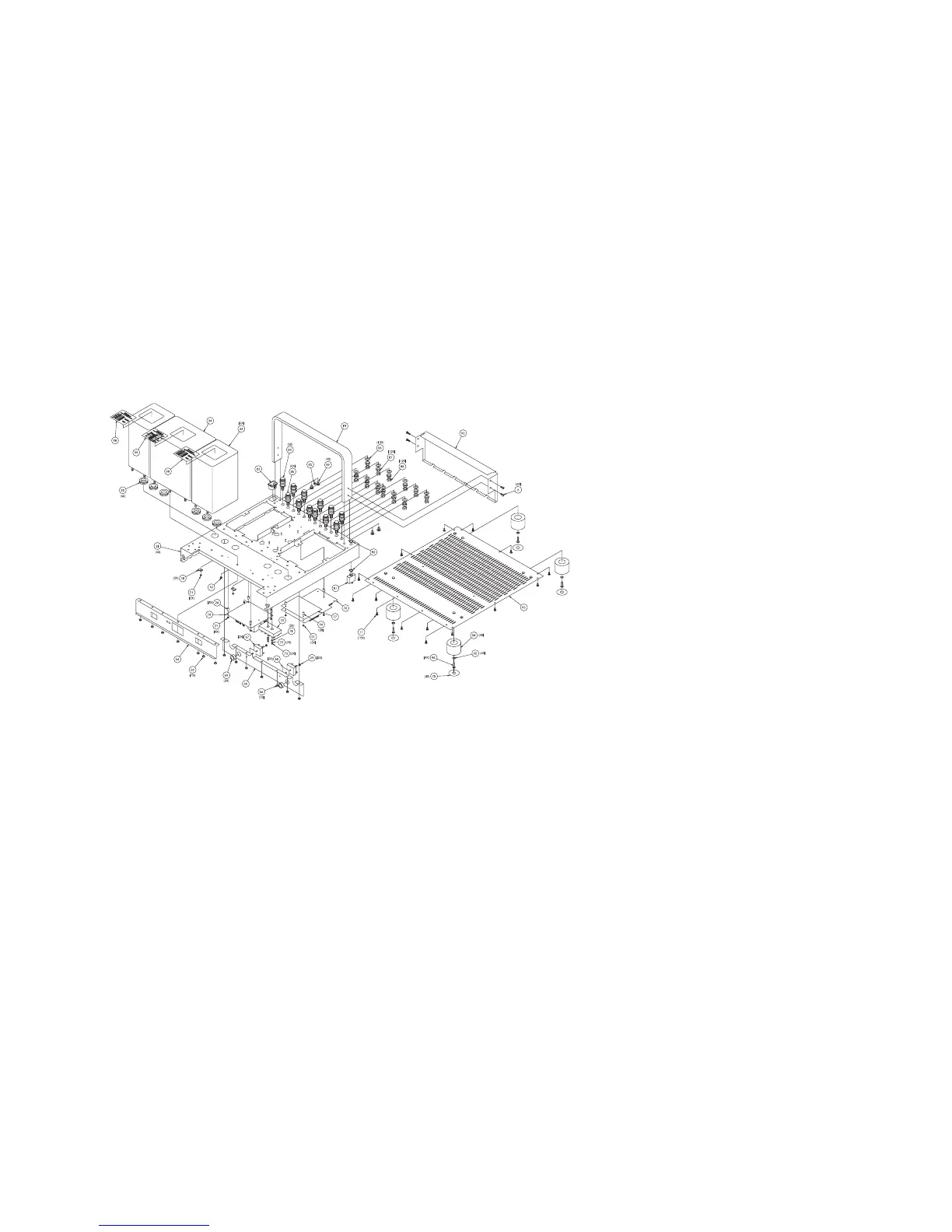

EXPLODED VIEW
2 OF 2
Ref Part Description
No. No.
1 016416 FRONT GLASS FAB
2 018631 HANDLE FRONT
3 018633 PANEL SIDE
4 049321 KNOB ASSEMBLY MC352
5 104017 BLK FELT WASH: 3/4 X 1/4 X 1/16
6 100200 MS 10-32 X 1/2 PH TRUSS BLK
7 092418 DISPLAY FILTER BLUE
8 017798 DISPLAY PLEXIGLAS
9 005049 PANEL PLATE
10 101142 SOCKET HEAD CAP SCREW ALLEN
11 101078 TS 8-32 X 5/16 PHIL PAN BLK
12 101172 TS 6-32 X 1/4 PHIL FLAT U/C
13 005052 DUST COVER
14 005044 SUBPANEL
15 146243 POWER SWITCH
16 021159 BUSHING SWITCH
17 005054 GUSSET BRACKET LEFT
18 005060 RIGHT GUSSET BRACKET
19 049373 LAMP PCB ASSY
AND PARTS LIST
27
20 104137 FIBRE WSHR .125ID X .312OD X.062
21 102001 KEP NUT 4-40 CADMIUM PLATE
22 049371 LIGHT PCB ASSY
23 049395 STANDBY LIGHT PCB ASSY
24 112038 STL SPACER 4 X 3/8L NICKEL PLT
25 124073 PANEL METER MC552
26 092400 BLUE FILTER AZURE
27 092401 BLUE FILTER PALE
28 017749 METER LIGHT BOX
29 102003 MACH NUT 6-32 W/LOCK
30 049384 METER PCB
31 114072 PLASTIC RIVET: NYLON (POP-IN)
32 005059 METER SUPPORT BRACKET
33 049365 OUTPUT TRANSFORMER POT
34 049366 POWER TRANSFORMER POT
35 078025 RUBBER GROMMET 3/4
36 101054 TS 6-32 X 1/4 PH PAN TAPTITE BLK
37 005048 STAINLESS CHASSIS W/PEMS
38 018627 HEATSINK COMPLETE
39 084180 ISOSTRATE
40 049368 HEATSINK PCB ASSY
41 114118 TRANSISTOR CLIP 218
42 114119 TRANSISTOR CLIP 214
43 112087 PCB SPACER 1/4”
44 101059 SM 6 X 5/8 PHIL PAN TYPE A
45 005058 HEATSINK COVER LEFT
46 005055 HEATSINK COVER RIGHT
47 005050 CAPACITOR COVER
48 104007 LK WASHER 6 X .288 INT STAR
49 049367 CAP PCB ASSY
50 100188 SEMS MS 10-32 X 3/8 INDENTED
51 066489 27000uf 100V ELECTROLYTIC
52 005061 CAPACITOR CLAMP
53 100250 SEMS MS 6-32 X 1/4 PHIL PAN
54 102045 KEP NUT 6-32 SPECIAL
55 005042 REAR PANEL
56 101197 HI/LO 4-24 X 3/8 PH ROUND BLK
57 104142 LOCKWASHER 2.5mm INT STAR ZINC
58 101114 SM 4-24 X 1/2 PHIL PAN TYPE A
59 104095 LK WASH: #4 INT STAR
60 049222 INPUT PCB ASSY
61 004954 HEATSINK VENT COMPLETE
62 101176 TCS 6-32 X 1/2 PH PAN BLK TYPE F
63 005043 SUBREAR PANEL
64 005057 FRONT SUPPORT BRACKET
65 005041 CHASSIS SUPPORT BRACKET
66 102006 MACH NUT: 10-32 W/LOCK
67 070139 RECTIFIER BRIDGE MC1000
68 084135 THERMAL PAD MC7150
69 078034 GROMMET
70 074091 AC TERMINAL BLOCK
71 104001 FLAT STEEL WASH #4 X 9/32 X .025
72 104004 LK WASH 5 X .255 INT STAR
73 102022 MN 4-40 X 3/16
74 049370 PG PCB ASSY
75 024010 FOOT PAD
76 049369 DRIVER PCB ASSY
77 017770 PCB SHEILD
78 017160 MOUNTING TAB W/.140 DIA MTG
79 102005 MACH NUT: 8-32 W/LOCK
80 104014 LK WASHER 3/8 X .507 INT STAR
81 088022 CIRCUIT BREAKER 20AMP 250VAC
82 102032 HEX NUT 3/8-32 X 1/16 THK-HEX
83 117487 MC1000 AC LINE RECEPT
84 117740 BINDING POST RED
85 117741 BINDING POST BLACK
86 104162 LOCKWASHER INTERNAL TOOTH
87 102052 NUT GOLD SUPPLIED W/117758
88 102051 HEX NUT M9 X .75 GOLD PLATED
89 100102 1/4 - 20 X 3/8 PAN PH BLK ZINC
90 102020 MCH NUT: 6-32 SLF-LOCK
91 018632 HANDLE BACK
92 017797 TERMINAL BLOCK COVER
93 005045 BOTTOM COVER
94 018445 FOOT MC1000
95 104080 FLAT WASHER #10 CLEAR ZINC
96 100159 MS 10-32 X 3/4 PH PAN BLK ZINC
97 126666 TOP COVER DECAL
98 126592 OUTPUT TRANSFORMER DECAL
99 126593 POWER TRANSFORMER DECAL
