McIntosh MC602 User Manual

7
UNBALANCED INPUTS
for audio cables from a
preamplifier or control cen-
ter audio output
CIRCUIT BREAKER
Press to reset if the am-
plifier will not power
up
RIGHT OUTPUT
Connections for 8
ohm loudspeakers

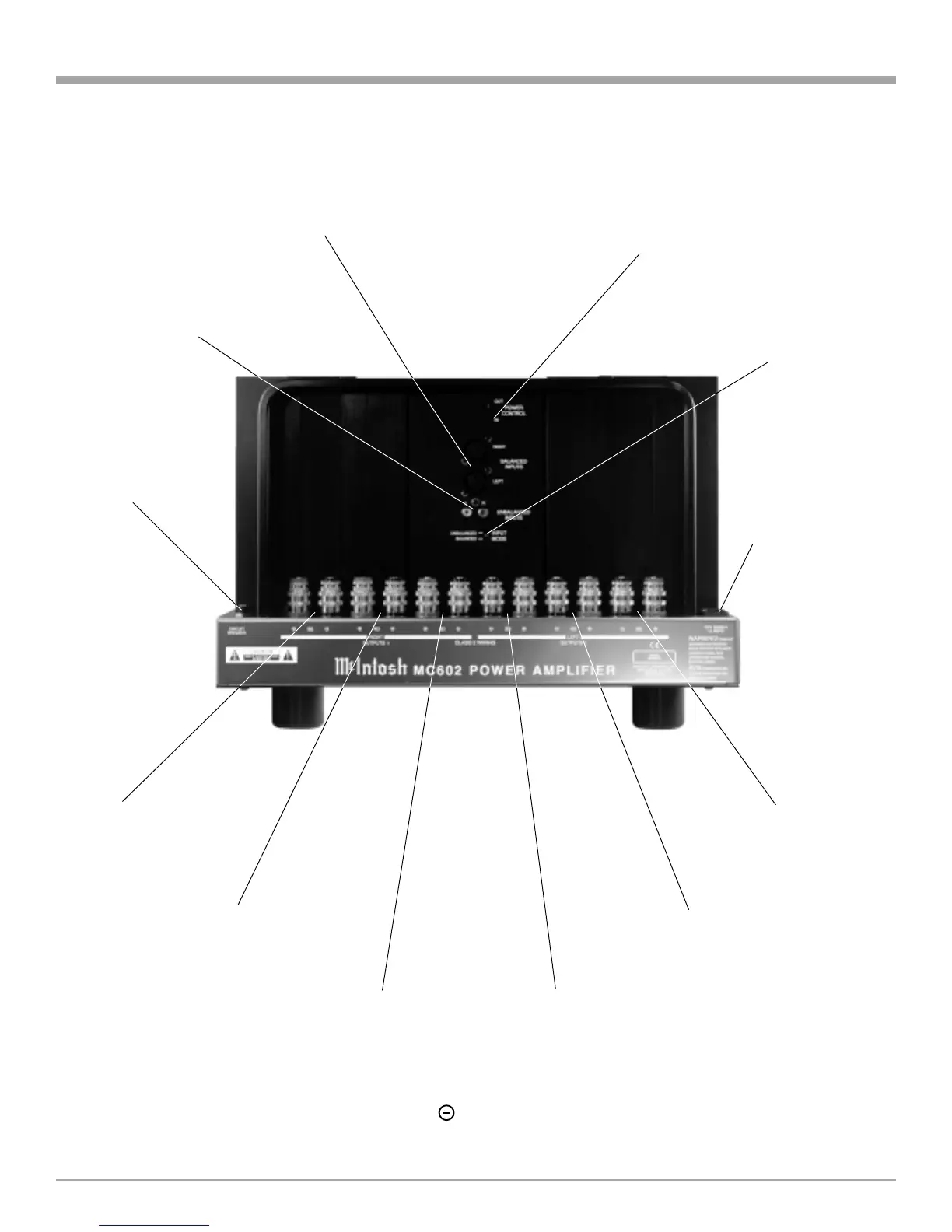

MC602 Rear Panel Connections and Switch
Connect the MC602
power cord to a live
AC outlet. Refer to
information on the
back panel to deter-
mine the correct
voltage
BALANCED INPUTS for audio
cables from a preamplifier or
control center audio outputs
POWER CONTROL IN receives turn on/off
signals from a McIntosh component and the
POWER CONTROL OUT sends a turn On/
Off signal to the next McIntosh component
RIGHT OUTPUT
Connections for 2
ohm loudspeakers
INPUT MODE
switch selects
balanced or
unbalanced
inputs
RIGHT OUTPUT
Connections for 4
ohm loudspeakers
LEFT OUTPUT
Connections for 2
ohm loudspeakers
LEFT OUTPUT
Connections for 4
ohm loudspeakers
LEFT OUTPUT
Connections for 8
ohm loudspeakers
Caution: The Loudspeaker Negative Connections are above
chassis ground and are not common between channels.
Do not combine any connections together or ground them.
