McIntosh XRT2K User Manual

13
13
LOW Frequency Input Connections 1, 2, and 3
for a 8 ohm Loudspeaker.
Note: 1, 2 and 3 Terminals (+) are internally
connected together; 1, 2 and 3 Terminals
(-) are also internally connected together.
MIDrange Frequency Input Connections 1, 2,
and 3 for a 8 ohm Loudspeaker.
Note: 1, 2 and 3 Terminals (+) are internally
connected together; 1, 2 and 3 Terminals
(-) are also internally connected together.
HIGH Frequency Input Connections 1, 2, and 3
for a 8 ohm Loudspeaker.
Note: 1, 2 and 3 Terminals (+) are internally
connected together; 1, 2 and 3 Terminals
(-) are also internally connected together.
Low Frequency Column Lower Section Connec-
tions connect to the Low Frequency Column
Upper Section Connections.
Note: Do not operate the XRT2K Loudspeaker
System unless the Low Frequency Column
Lower and Upper sections are connected
together.
Low Frequency Column Up-
per Section Connections con-
nect to the Low Frequency
Column Lower Section Con-
nections.
Note: Do not operate the
XRT2K Loudspeaker
System unless the Low
Frequency Column
Lower and Upper
Sections are connected
together.

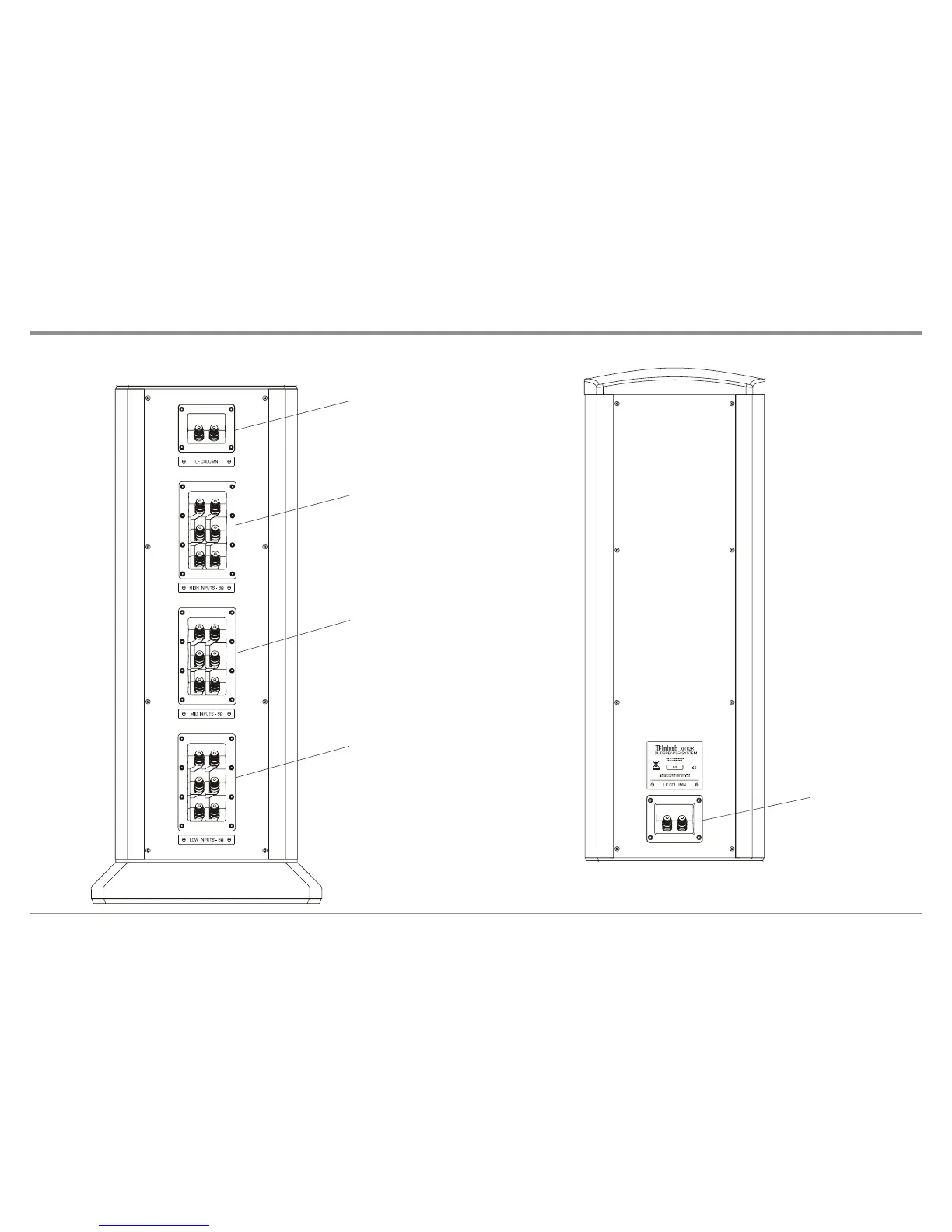

Low Frequency Column Rear Panel Connections
1
2
3
1
2
3
1
2
3
