McQuay MCK025A User Manual

1-4

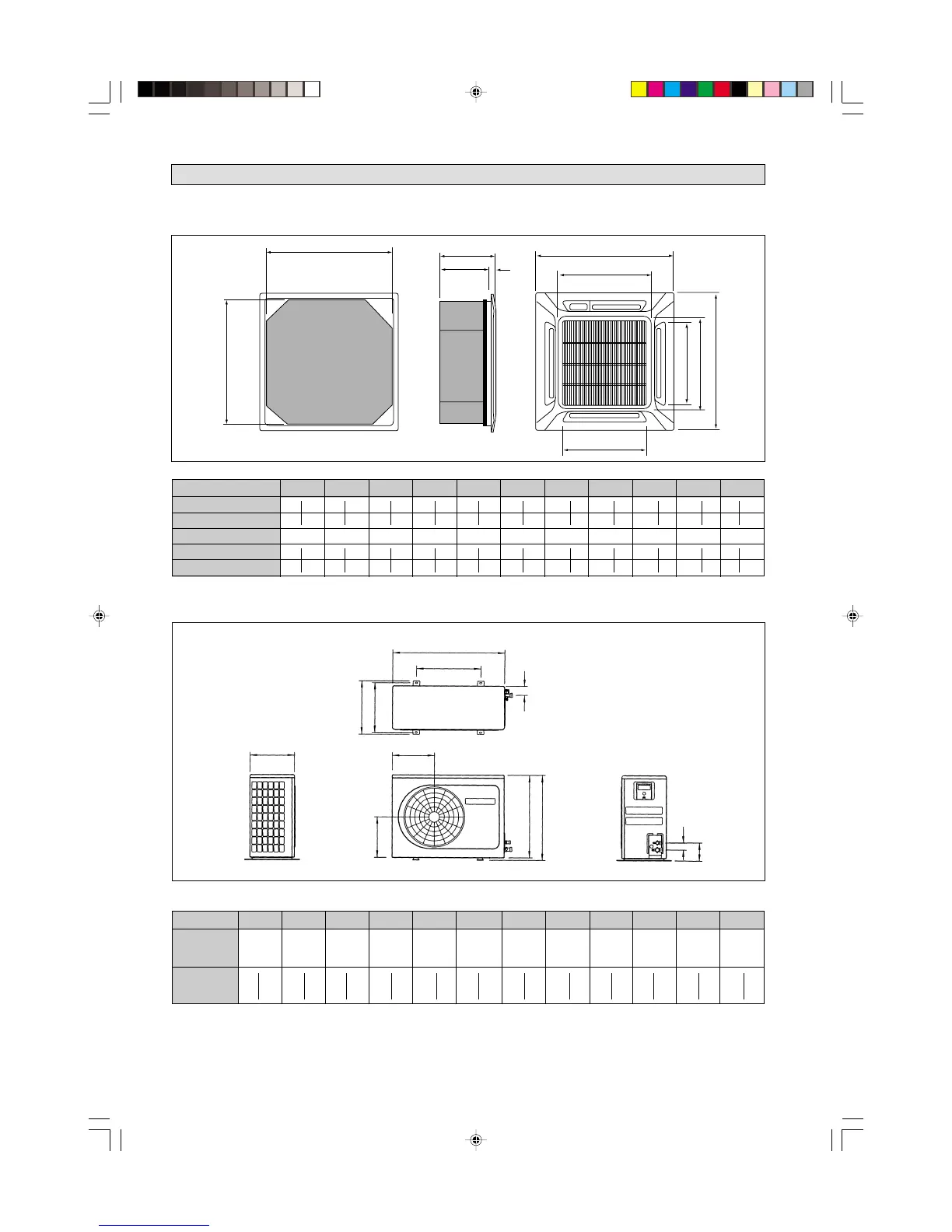

OUTLINE AND DIMENSIONS
MODEL A B C D E F G H I J K
CK 20A/AR
CK 25A/AR
CK 30A/AR 820 820 363 335 28 930 930 642 622 555 555
CK 40A/AR
CK 50A/AR
Indoor Unit : CK20A / 25A / 30A / 40A / 50A & AR
• (With Wireless Remote Control & With Wired Remote Control)
F
H
I
J
G
M
E
C
D
B
A
Outdoor Unit : SL20B / 25B
MODEL A B C D E F G H I J K L
SL20B /
840 492 408 378 330 297 309 626 646 64 148.5 78.5
SL20BRK
SL25B /
SL25BRK
A
B
E
F
C
D
G
L
H
I
J
K
All dimensions are in mm.
All dimensions are in mm.
CK20A(1-16)ENG 2/1/01, 10:15 AM4

McQuay MCK025A Specifications

General

Brand	McQuay
Model	MCK025A
Category	Air Conditioner
Language	English
