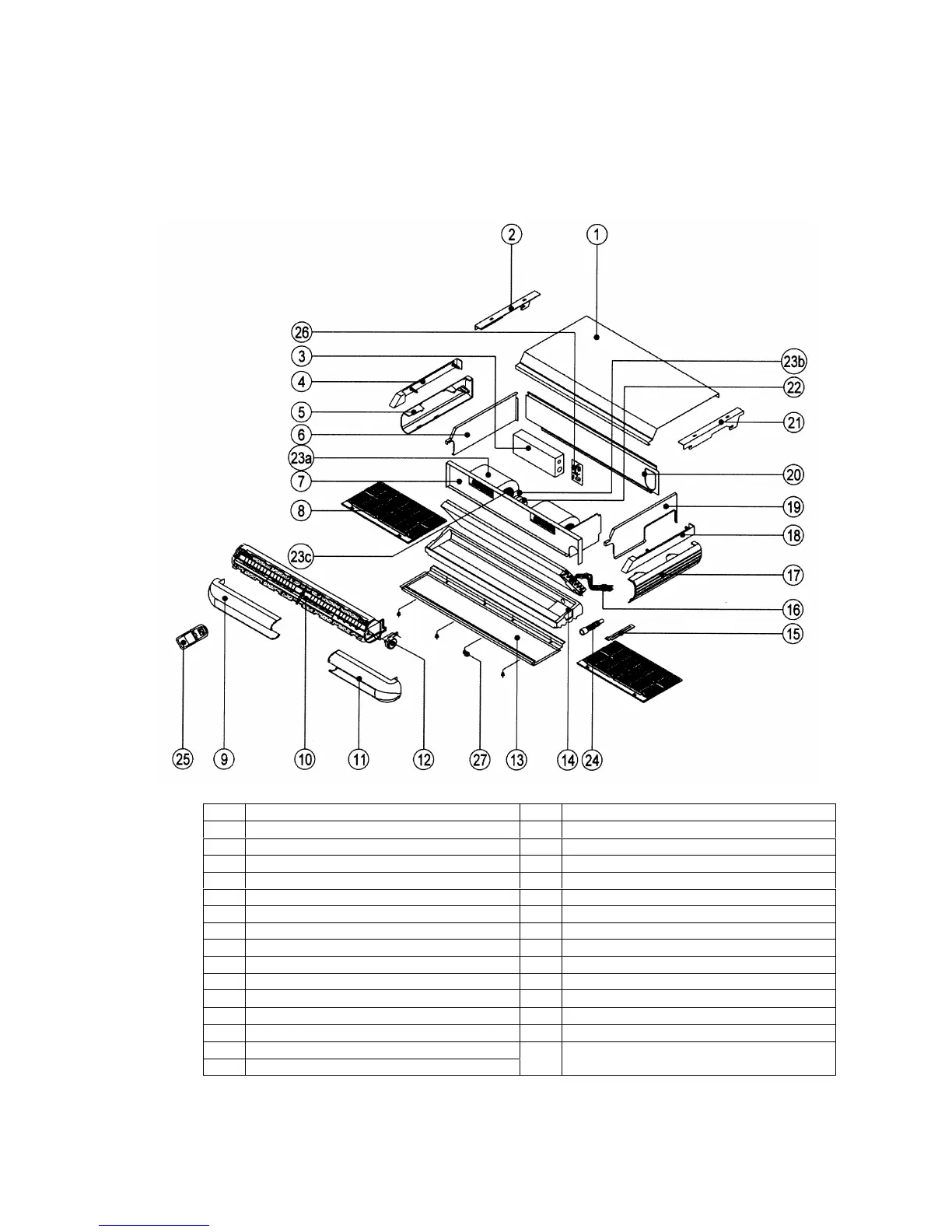

Parts List
Model : MCM020/ 025 D/DR
NO. PARTS DESCRIPTION NO. PARTS DESCRIPTION
1 TOP PANEL 16
COIL ASSY
2 HANGER BRACKET - LEFT 17 SIDE FRAME ASSY – RIGHT
3 CONTROL BOX 18 CLOSE UP, SIDE RIGHT
4 CLOSE UP, SIDE PANEL 19 COIL HOLDER ASSY - RIGHT
5 SIDE FRAME ASSY - LEFT 20 BACK PANEL
6 COIL HOLDER ASSY - LEFT 21 HANGER BRACKET – RIGHT
7 FAN DECK 22 FAN MOTOR
8 AIR INTAKE GRILLE ASSY 23a BLOWER HOUSING, TOP
9 FRONT FRAME – LEFT 23b BLOWER HOUSING, BOTTOM
10 LOUVER ASSY 23c BLOWER WHEEL
11 FRONT FRAME – RIGHT 24
DRAIN HOSE ASSY
12 AIR SWIND MOTOR ASSY 25
LCD HANDSET
13 BOTTOM PANEL 26 PCB
14 DRAIN PAN ASSY
15 CENTRE SUPPORT BRACKET
27 AIR INTAKE GRILLE FRAME HOLDER
ASSY
87
