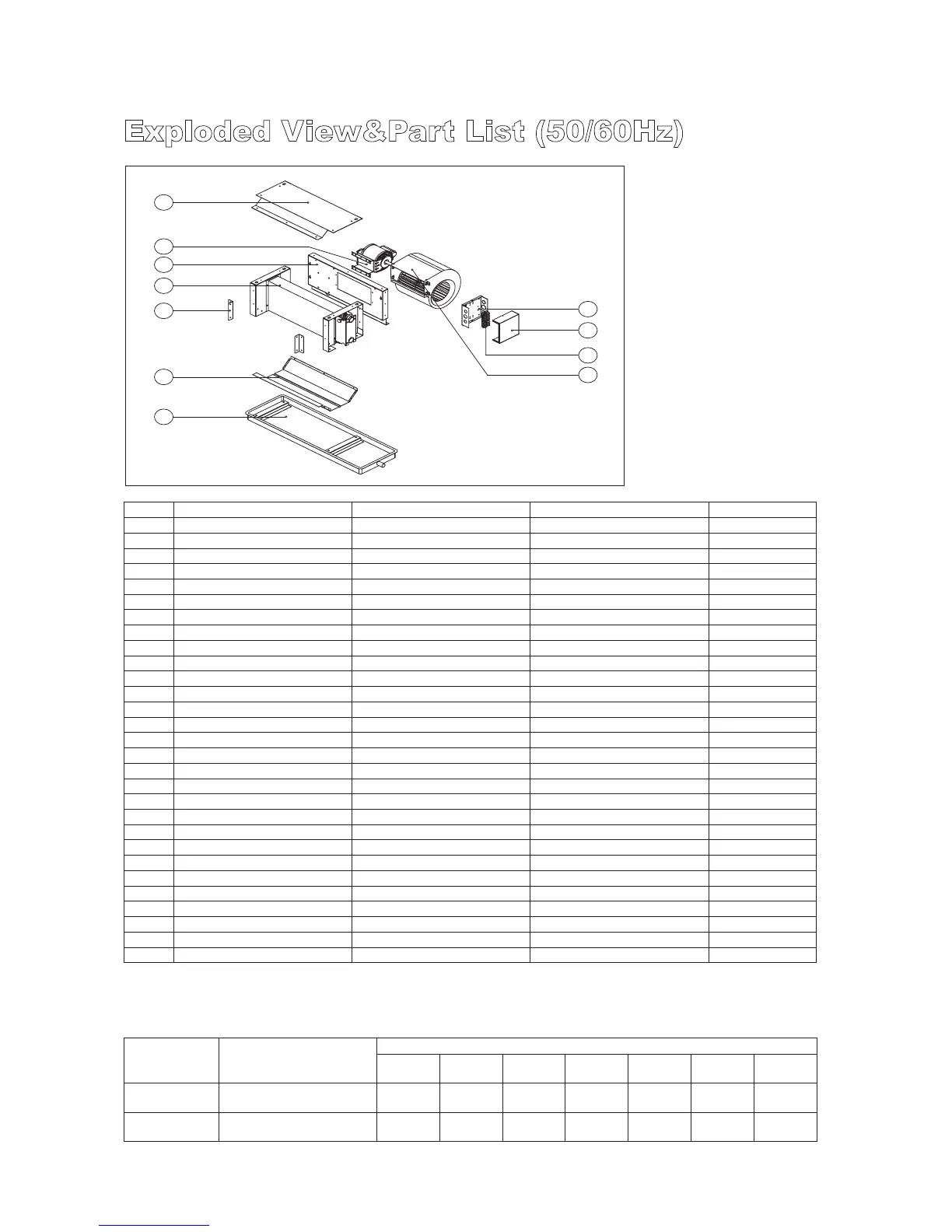

Exploded View&Part List (50/60Hz)
NO. PART NUMBER DESCRIPTION MODEL SELECTION QTY
1 M50014063206 TERMINALBOXSUPPORT MCW200-1200C/F/H 1
2 M50064063434 TERMINALBOXCOVER MCW200-1200C/F/H 1
3 A04114012928 TERMINALBLOCK MCW200-1200C/F/H 1
4 need selection BLOWERCENTRIFUGAL need selection need selection
5 need selection DRIANPAN need selection 1
6 M01014060309 DRAIN GUIDE PLATE MCW200C/H/F 1
M01014060312
DRAIN GUIDE PLATE MCW300C/H/F 1
M01014060315 DRAIN GUIDE PLATE MCW400C/H/F 1
M01014060318 DRAIN GUIDE PLATE MCW600C/H/F 1
M01014060321
DRAIN GUIDE PLATE MCW800C/H/F 1
M01014060324
DRAIN GUIDE PLATE MCW1000C/H/F 1
M01014060327
DRAIN GUIDE PLATE MCW1200C/H/F 1
7 M01014060304 DUCT PLATE MCW200-1200C/H/F 2
8 need selection ASSY.,COIL need selection 1
9 M01014060310 FANDECKPLATE MCW200C/H/F 1
M01014060313 FANDECKPLATE MCW300C/H/F 1
M01014060316 FANDECKPLATE MCW400C/H/F 1
M01014060319 FANDECKPLATE MCW600C/H/F 1
M01014060322 FANDECKPLATE
MCW800C/H/F 1
M01014060325 FANDECKPLATE
MCW1000C/H/F 1
M01014060328 FANDECKPLATE MCW1200C/H/F
1
10 need selection MOTOR need selection need selection
11 M01014060308 TOPPLATE MCW200C/H/F 1
M01014060311 TOPPLATE MCW300C/H/F 1
M01014060314 TOPPLATE MCW400C/H/F 1
M01014060317 TOPPLATE MCW600C/H/F 1
M01014060320 TOPPLATE
MCW800C/H/F 1
M01014060323 TOPPLATE
MCW1000C/H/F 1
M01014060326 TOPPLATE MCW1200C/H/F
1
NOTE: “NEED SELECTION” PARTS PLEASE FIND THE REFERENCEMENT MATERIAL MARKED AS FOLLOWING:
Item4.Blower Centrifugal
 DESCRIPTION
MODEL & QUANTITY SELECTION














M03029000980
BLOWERCENTRIFUGAL
SYP160/200J-L
1 1 1 1 2 2 2
M03029000981
BLOWERCENTRIFUGAL
SYP160/200J-R
- 1 1 1 1 2 2
2
1
5
6
7
8
9
10
11
4
3
