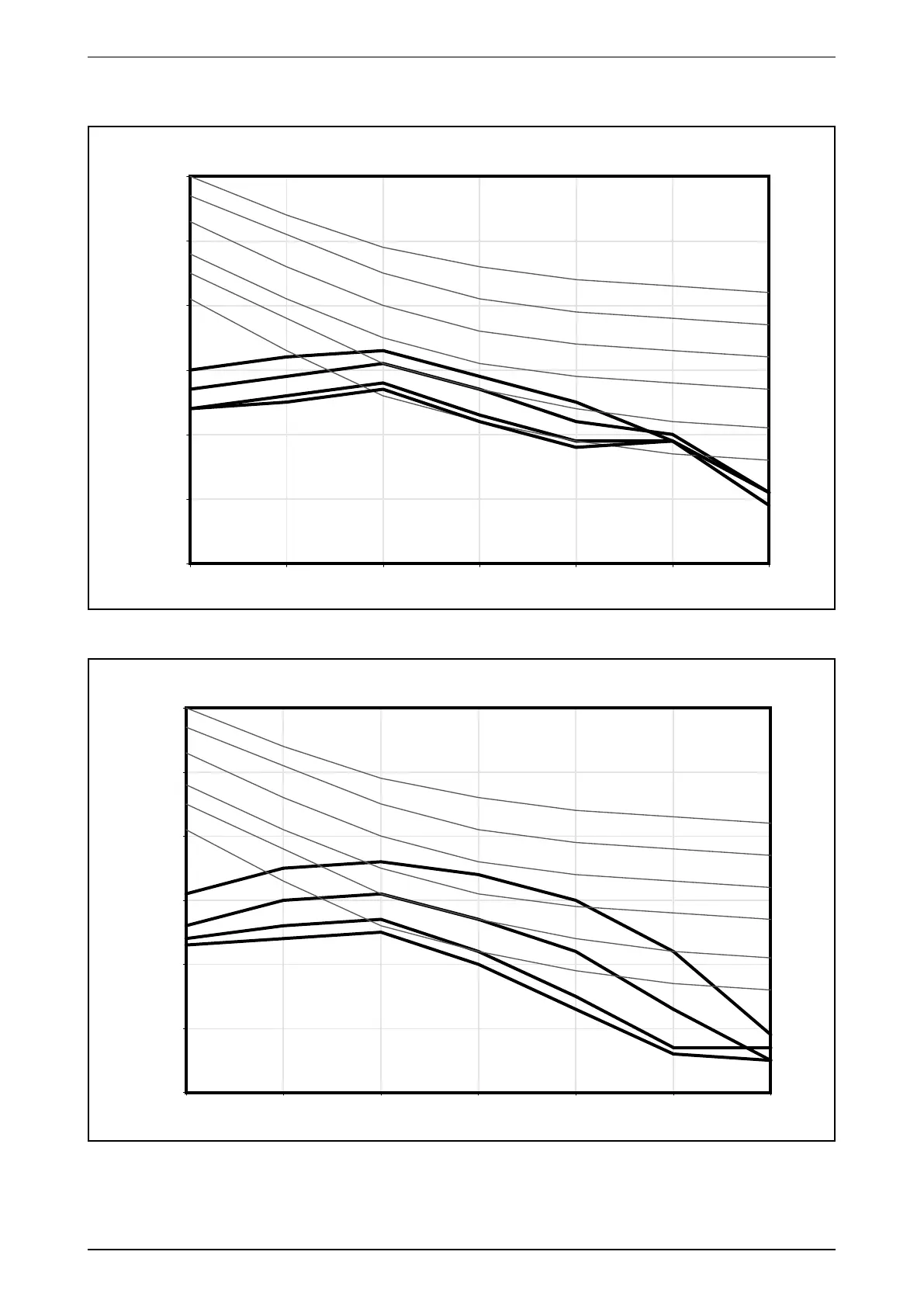

MWM-J_(ii) Sound Data
0
10
20
30
40
50
60
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB,ref20μPa)
High Fan
NC-30
NC-35
NC-40
NC-45
Low Fan
Medium Fan
NC-25
NC-20
S.Low Fan
Part Number : 0313103C09
0
10
20
30
40
50
60
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB,ref20μPa)
High Fan
NC-30
NC-35
NC-40
NC-45
Low Fan
Medium Fan
NC-25
NC-20
S.Low Fan
Part Number : 0353103C10
NC Curve
MWM09J/JR
M5WM10J/JR
