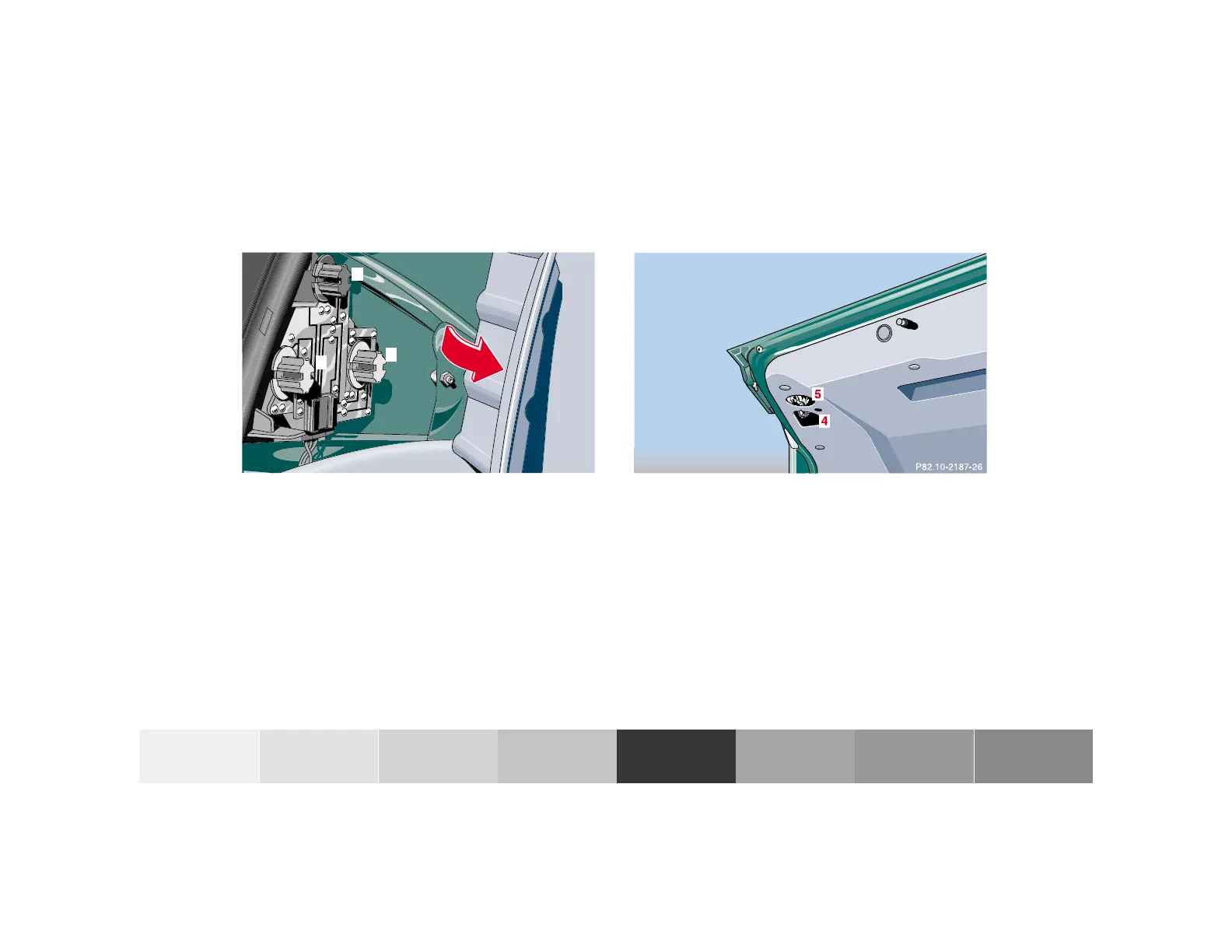

Taillamp assemblies
Open trunk lid.
Swing cover aside.
1 Turn signal lamp (21 W/24 cp bulb)
2 Stop, tail and parking lamp (21/4 W bulb)
3 Tail, parking and side marker lamp (5 W /4 cp bulb)
4 Driver’s side:
Rear fog lamp (21 W/32 cp bulb)
5 Backup lamp (21 W/32 cp bulb)
Twist bulb socket counterclockwise and pull out. Push
bulb into socket, turn counterclockwise and remove.
Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket.
P82.10-2204-26
