289Parking system
Technical
data
Instruments
and controls
Operation Driving
Instrument
cluster display
Practical hints Car care Index

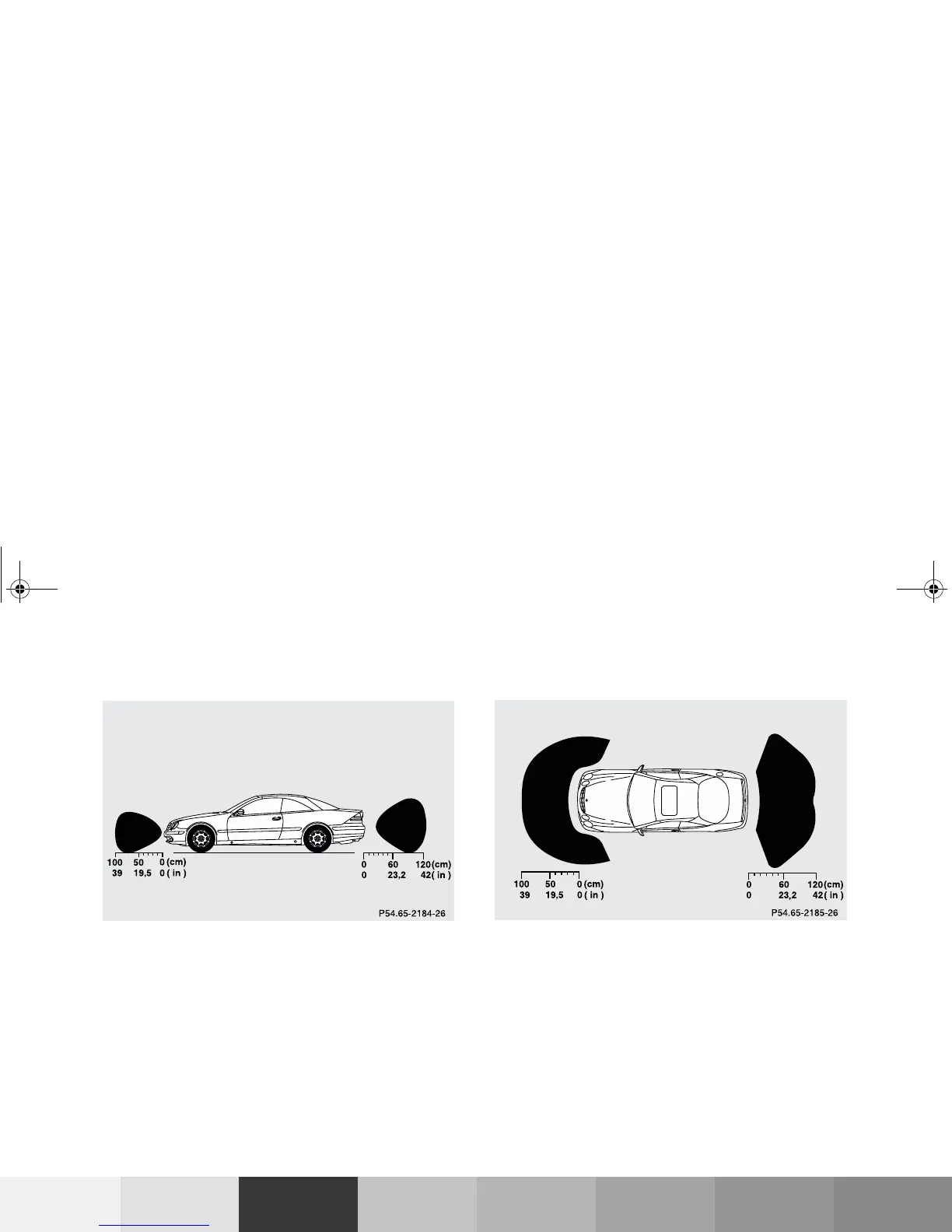

Monitoring reach of sensors
Front bumper:
Rear bumper:
The first yellow segment lights up at these distances.
Additional segments light up as the vehicle comes
closer to the obstacle.
Minimum distance between vehicle and obstacle at
which the system stops indicating:
Center approx. 40 in (100 cm)
Corner approx. 24 in (60 cm)
Center approx. 48 in (120 cm)
Corner approx. 32 in (80 cm)
Front corners approx. 6 in (15 cm)
Front center and rear approx. 8 in (20 cm)
