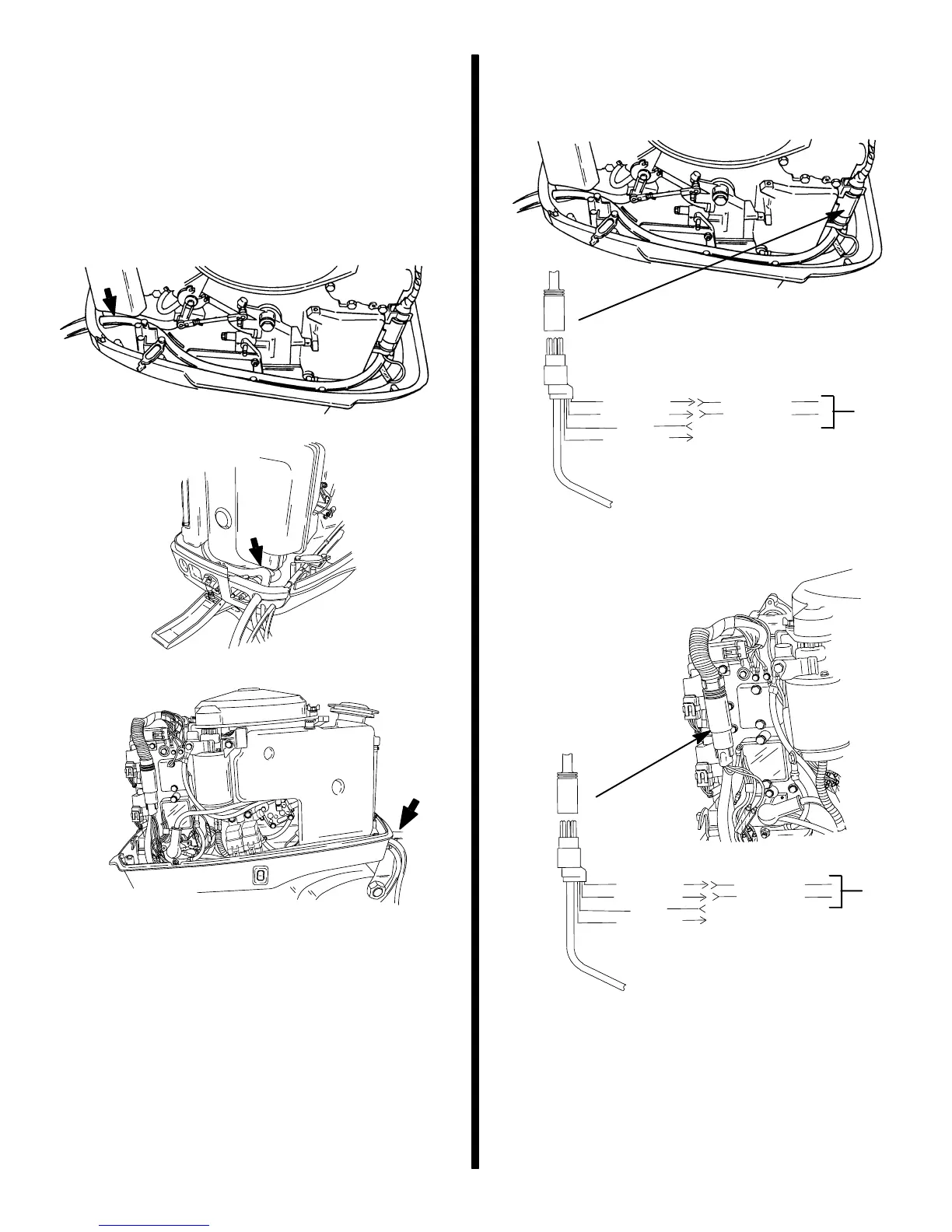

Page #6 background image
- 6 -
Wiring Harness
IMPORTANT: Warning Horn Requirement – The
remote control or key switch assembly must be
wired with a warning horn. This warning horn is
used with the engine warning system.
1. Route wiring harness into bottom cowl.
40-50 Hp (3 Cyl.)
60 Hp
30-40 Hp (2 Cyl.)
2. Connect wiring. Place harness into the holder.
GRN/WHT
BLU/WHT
BRN/WHT
TAN
BLU/WHT
GRN/WHT
a
GRN/WHT
BLU/WHT
BRN/WHT
TAN
BLU/WHT
GRN/WHT
a
30-40 Hp (2 Cyl.)
40-50-60 Hp (3 Cyl.)
a - Power Trim Connections
