GEAR HOUSING
90-857138R1 MAY 2000 Page 6-11

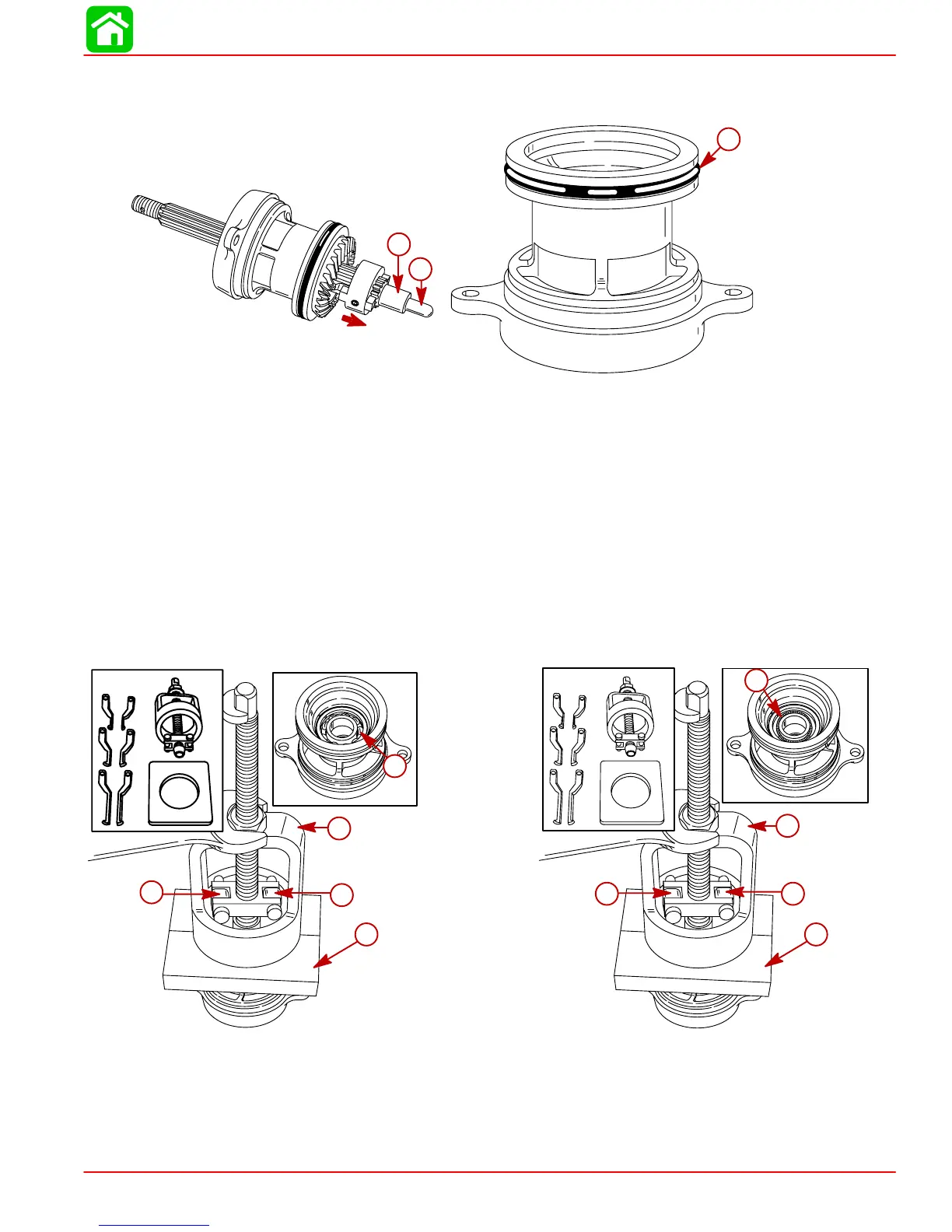

3. Pull propeller shaft from bearing carrier. Retain cam follower with propeller shaft.
4. Remove O-ring.
a
b
c
56396
56397
a - Propeller Shaft
b - Cam Follower
c - O-ring
IMPORTANT: Propeller shaft bearing is damaged during removal. Do not remove
bearing unless replacement is necessary. Refer to “Cleaning and Inspection,” follow-
ing.
5. Remove propeller shaft bearing using puller assembly with suitable jaws and suitable
plate.
NOTE: Propeller shaft bearing has to be removed (see step 5) before removing propeller
shaft oil seal.
6. Remove propeller shaft oil seal, using puller assembly with suitable jaws and suitable
plate.
91-83165M
91-83165M
a
b
c
c
d
e
b
cc
d
56398
56399
a - Propeller Shaft Bearing
b - Puller Assembly
c - Suitable Jaws
d - Suitable Plate
e - Propeller Shaft Oil Seal
