GEAR HOUSING
90-857138R1 MAY 2000 Page 6-17

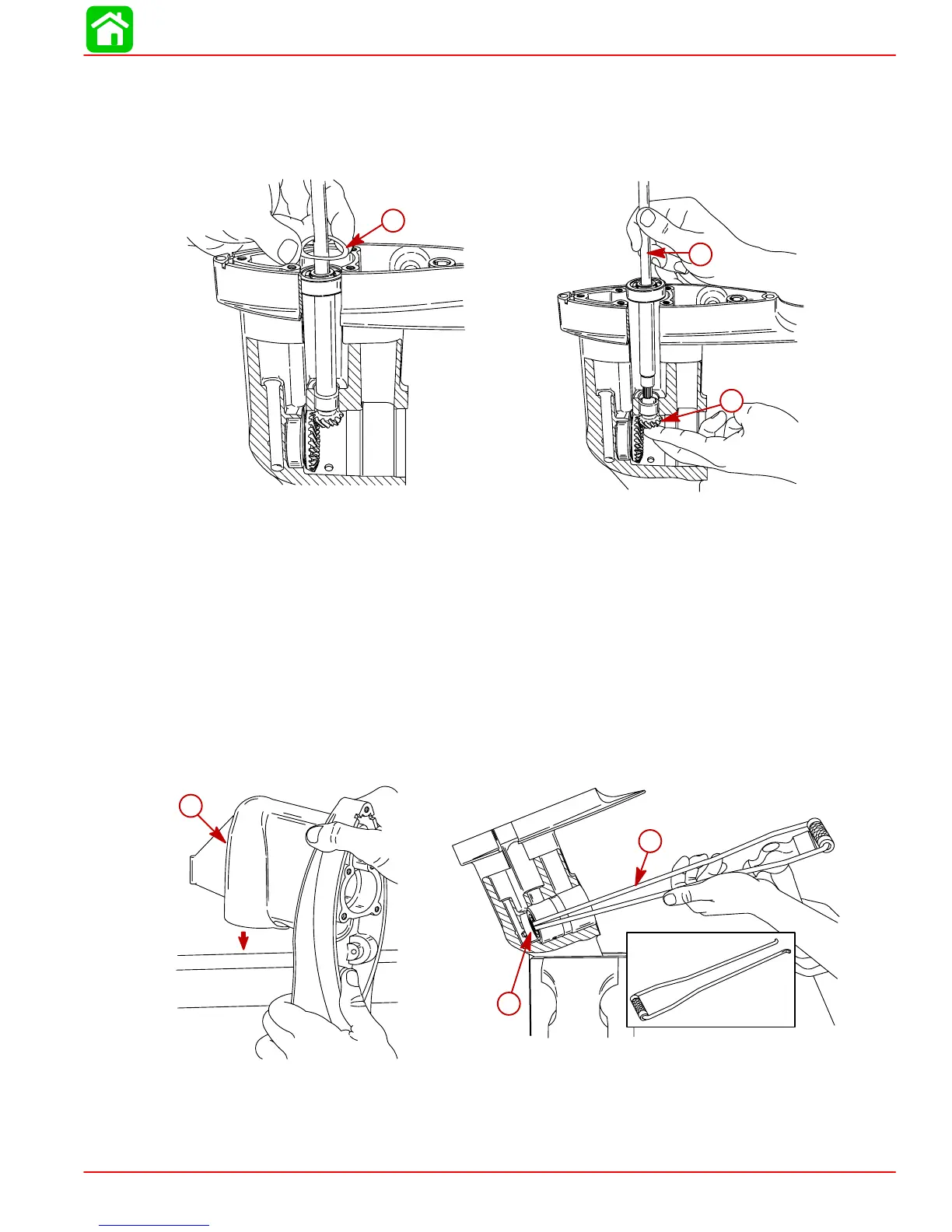

Drive Shaft
IMPORTANT: Retain shim(s) for reassembly.
1. Remove shim(s).
2. Remove drive shaft assembly and pinion gear.
a
b
c
56422
56423
a - Shims
b - Drive Shaft Assembly
c - Pinion Gear
Forward Gear and Bearing
1. To remove forward gear, strike open end of gear housing on a block of wood as shown,
dislodging gear from bearing. Make sure to retain shim(s) found behind gear for reas-
sembly.
IMPORTANT: Forward gear bearing is damaged during removal. DO NOT remove
bearing unless replacement is necessary. Refer to “Cleaning and Inspection” follow-
ing.
2. Remove forward gear bearing using puller.
91-27780
a
b
c
56425 56426
a - Open End of Gear Housing
b - Forward Gear Bearing
c - Puller
