Below are some of the examples for installation:

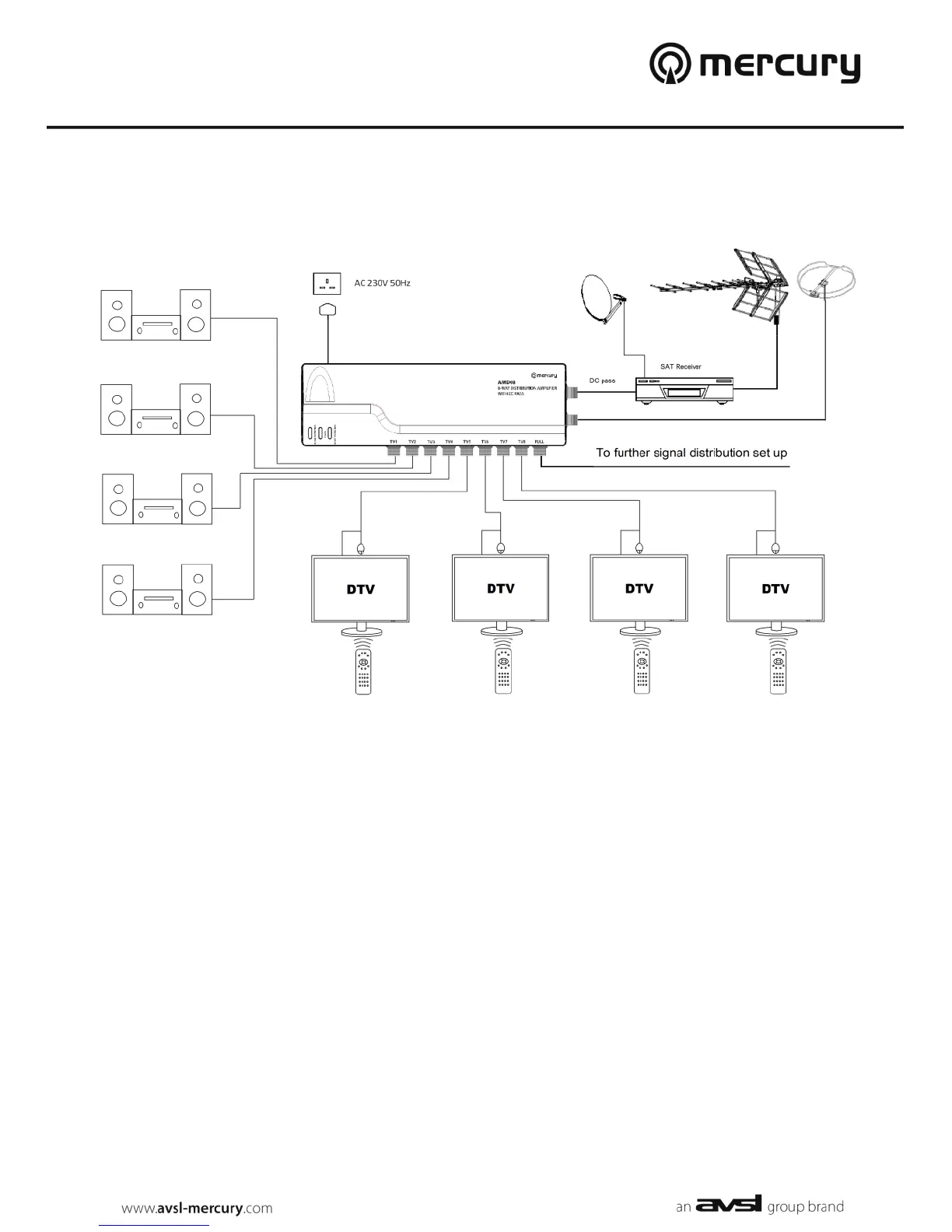

This diagram shows AMD08 receiving TV signals from the Sat receiver and FM/DAB aerial and
distributes signals to 4 individual hi-fi and TV units. AMD series amplifier is designed with DC pass
function. All 4 TV units can be set up with “Magic eye” (remote extension unit) to allow remote
control of Sat receiver when TV set is not at the same room as the Sat receiver. This can only be
done when connect the RF2 output to the UHF input of the amplifier.
Please note: only one sat channel can be viewed at any particular time from the Sat receiver. AMD
series amplifiers do not require setup to operate, for Sat receiver set up please refer to your Sat
receiver manual.
