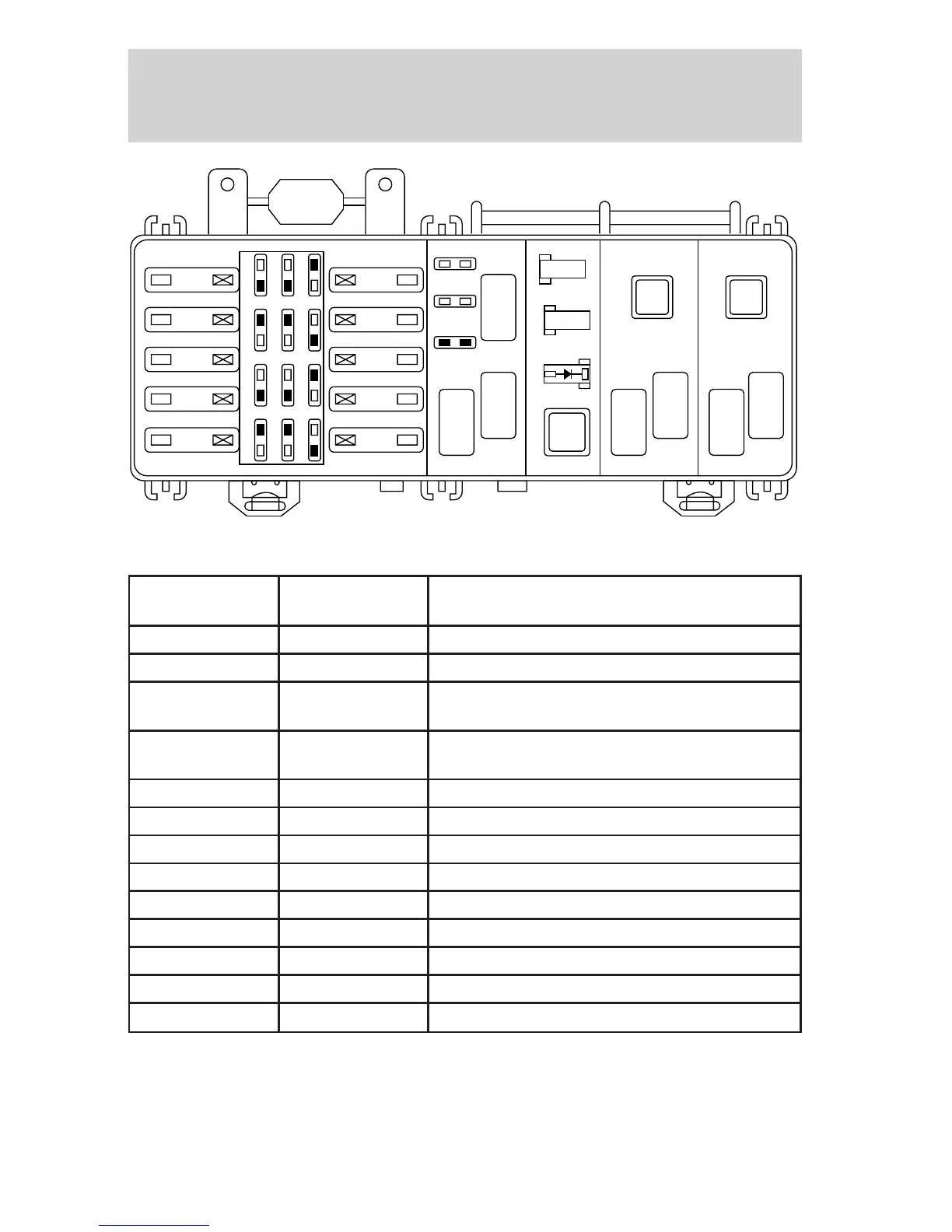

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 60A** I/P Fuse Panel fuses 1, 9, and 13
2 40A** Blower Motor Relay
3 50A** 4 Wheel Anti-Lock Brake System
(4WABS) Module
4 30A** Power Moon Roof, Accessory Relay
Delay
5 50A** Ignition Switch, Starter Relay
6 20A** Transfer Case Relay
7 — Not Used
8 20A** Air Suspension
9 40A** Air Suspension
10 30A** PCM Power Relay
1 10A* A/C Relay
2 30A* Heated Seats
3 30A* Heated Backlight
54321
10 9 8 7 6
12 11 10 9
8765
4321
1415 13
211
9
6
10
8
7
5
4
1
23
175
MEGAFUSE
Roadside emergencies
184
