NMEA 2000 GATEWAY MODULE ASSEMBLY
Page 4 / 10 © 2018 Mercury Marine 90-8M0153111 eng SEPTEMBER 2018

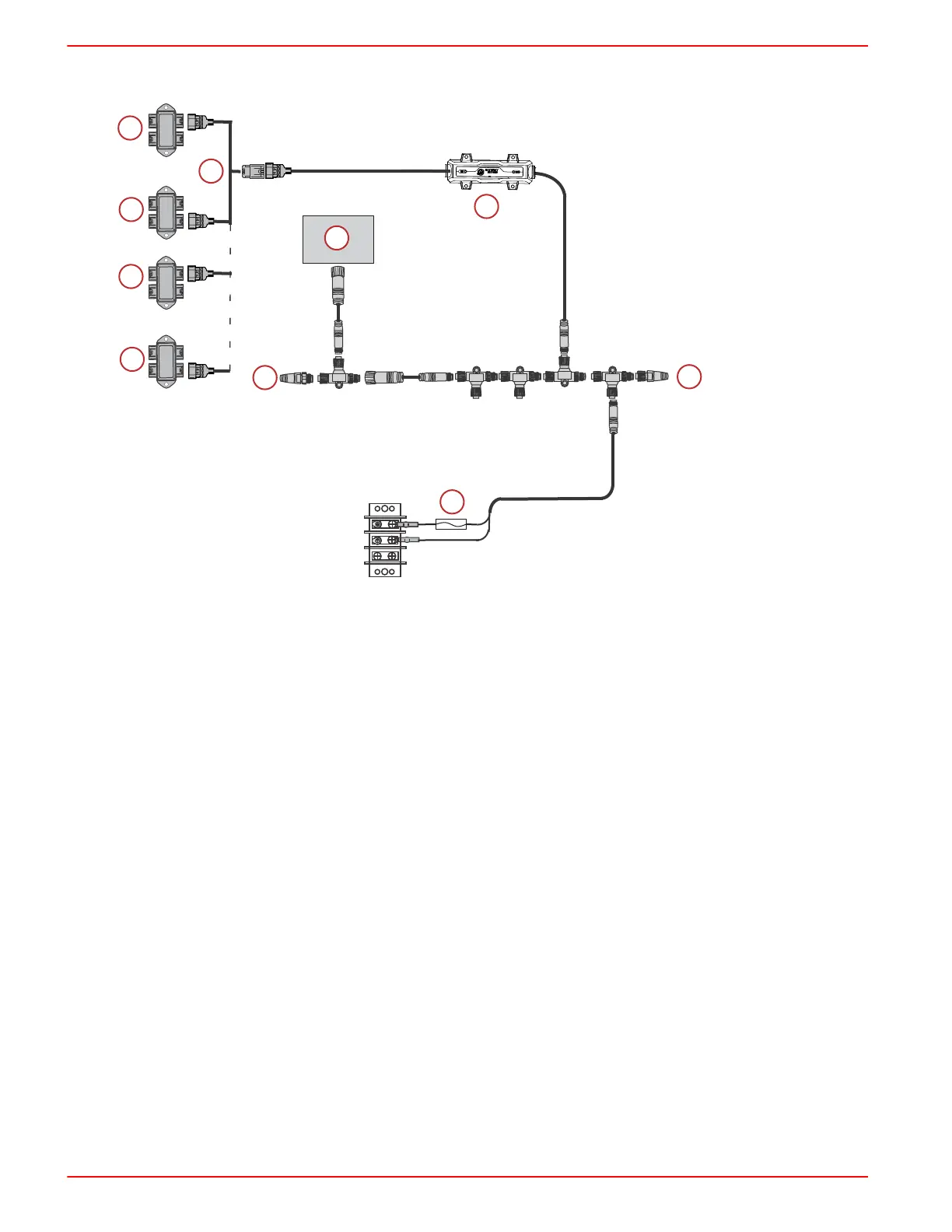

a. For non‑DTS installations connect the CAN 10‑pin harness connector to the multiengine instrument adapter.
a - 120K ohm termination resistor
b - Chartplotter
c - Mercury CAN P Gateway
d - NMEA 2000 fused power source
e - Starboard outer engine junction box
f - Starboard inner engine junction box
g - Wake harness or dual engine instrument adapter
h - Port inner engine junction box
i - Port outer engine junction box
120
a
a
b
d
120
c
e
f
g
h
i
