7 NP 72 en 17

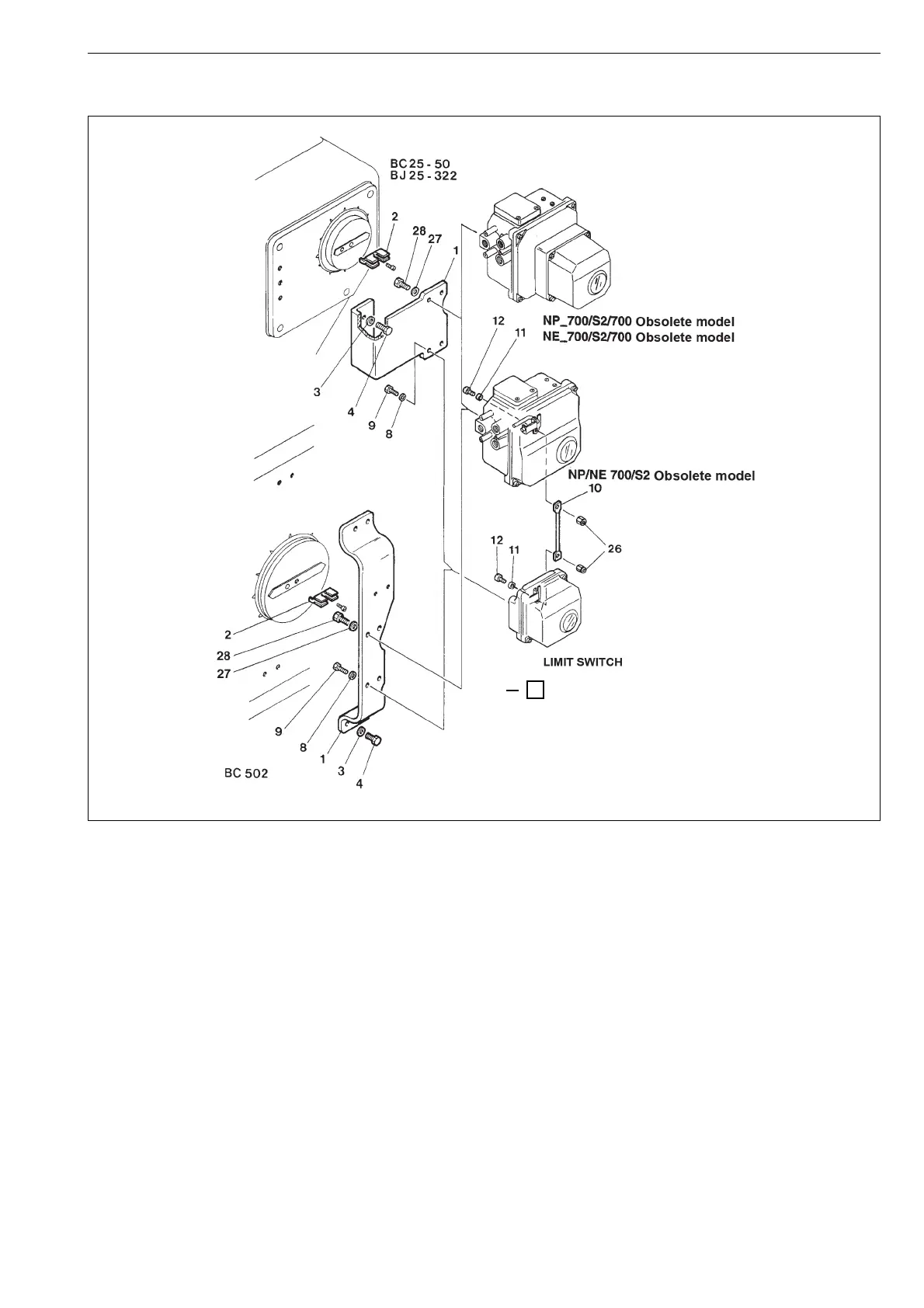

13.5 Mounting parts for B1C25-502 and
B1J25-322 actuators (S2)
Item Qty Description
1 1 Mounting bracket
21Draught piece
32 (4)Washer
42 (4)Screw
82Washer
92Screw
10 1 Rod
11 2 Bushing
12 2 Screw
26 2 Locking nut
27 2 Washer
28 2 Screw
